Impex MWM 2001 Owner's Manual

Marcy home gym
Hide thumbs
Table of Contents

Advertisement

Quick Links

NOTE:
Please read all instructions
carefully before using this
product
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Resistance Chart
Warranty
Ordering Parts
Model
MWM 2001
Retain This
Manual for
Reference
Version I
06-01-01
OWNER'S
MANUAL
MARCY MWM 200

HOME GYM

IMPEX FITNESS PRODUCTS
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
1

Advertisement

Table of Contents
loading

Related Manuals for Impex MWM 2001

Summary of Contents for Impex MWM 2001

  • Page 1: Home Gym

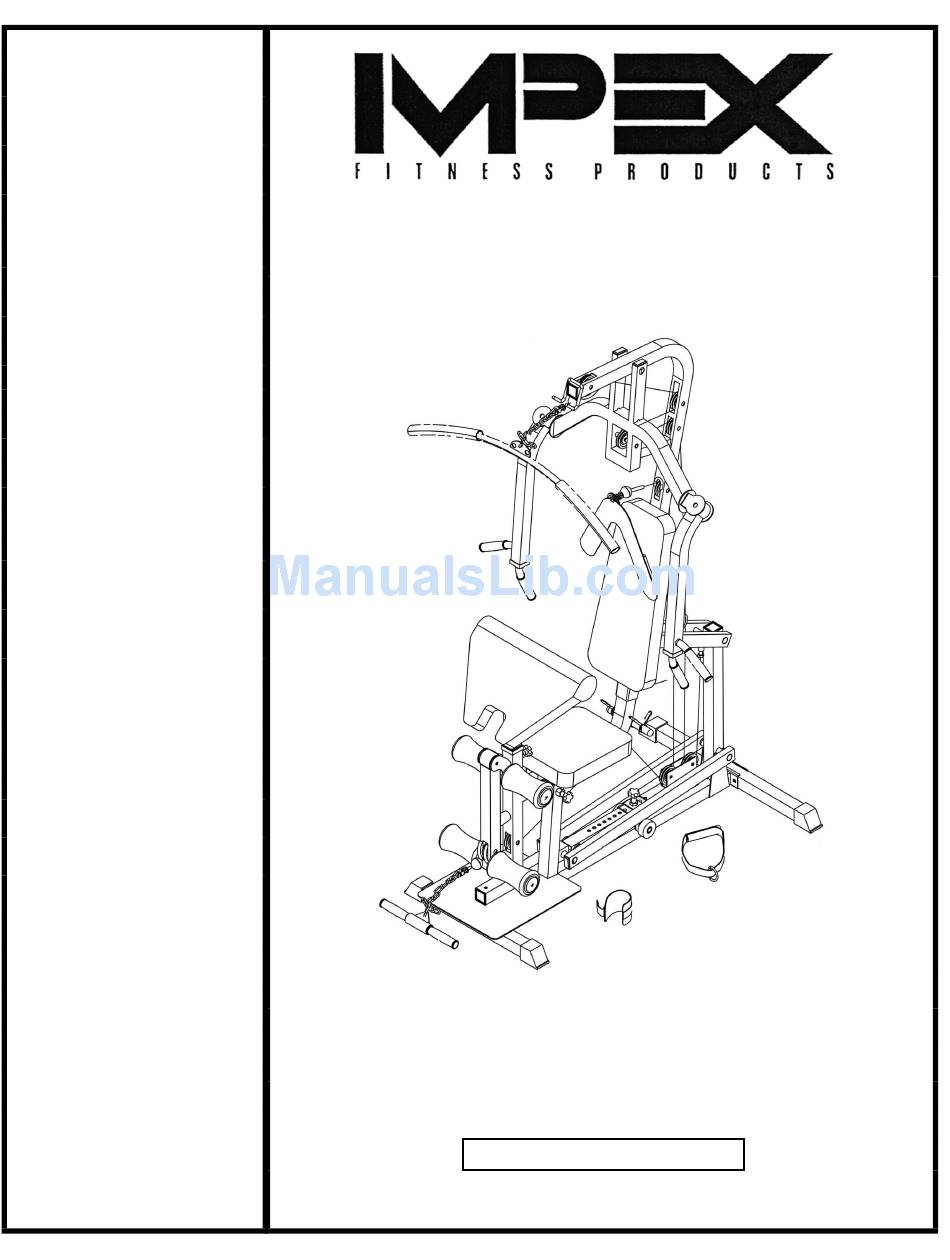

    HOME GYM Safety Notice Hardware Identifier Assembly Instruction Parts List Resistance Chart Warranty Ordering Parts Model MWM 2001 Retain This Manual for Reference Version I 06-01-01 IMPEX FITNESS PRODUCTS OWNER'S 14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746 MANUAL Tel: (800) 999-8899 Fax: (626) 961-9966 www.impex-fitness.com...

  • Page 2: Table Of Contents

    WARRANTY....................… 15 ORDERING PARTS..................15 BEFORE YOU BEGIN Thank you for selecting the MARCY MWM 2001 PERSONAL TRAINER by IMPEX FITNESS PRODUCTS. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction.

  • Page 3: Important Safety Notices

    IMPORTANT SAFETY NOTICE PRECAUTIONS This exercise machine is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your machine. In particular, note the following safety precautions: 1.

  • Page 5: Assembly Instructions

    ASSEMBLY INSTRUCTION Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches NOTE: It is strongly recommended this machine to be assembled by two or more people to avoid possible injury. STEP 1 (See Diagram 1) A.) Connect the Front Stabilizer (#2) to the front of Main Base Frame (#1). Secure it with two M10 x 2 3/4”...
  • Page 6 STEP 2 (See Diagram 2) A.) Attach the Vertical Frame (#16) to the Lower Main Frame (#14). Secure it with two M10 x 2 ¾” Carriage Bolts (#69), 7/8” Washers (#82), and M10 Aircraft Nuts (#77) from the side of the Lower Main Frame (#14).
  • Page 7 STEP 3 (See Diagram 3) A.) Attach the top of the Bench Press Frame (#23) to the top of the Vertical Frame (#16). Align the holes and insert a M12 x 6 ½” Axle (#33) through the holes. Secure it with two 1”...
  • Page 8 STEP 4 (See Diagram 4) A.) Attach the Backrest Pad (#19) to the Vertical Frame (#16). Align the holes and secure it with two M8 x 2 ½” Allen Bolts (#73) and 3/4” Washers (#83). B.) Attach the Seat (#21) onto the top of Seat Support (#8). Align the holes and secure it with two M8 x 1 ¾”...
  • Page 9 STEP 5 (See Diagram 5 & Cable Loop Diagram) A.) Attach the Ball-end of the 125” Upper Cable (#38) to the front top of the Vertical Frame (#16). Push two Bushings (#46) into the holes from both sides. Install a Small Pulley (#44) into the open slot.
  • Page 10 STEP 6 (See Diagram 6 & Cable Loop Diagram) A.) Attach the Ball-end of the 108” Lower Cable (#39) to the open slot on the Leg Developer (#10). Insert the Cable through both openings on the Leg Developer and Lower Main Frame (#14) towards the back of the machine.
  • Page 12 STEP 7 (See Diagram 7) A.) Connect the Chain (#40) to the end of Upper Cable. (See How to Use). Attach Clip (#49) to the Chain. Then connect the Lat Bar (#17) to the Clip. B.) Insert two Foam Roll Tubes (#48) halfway into the holes located on the Leg Developer (#10). Slide four Foam Rolls (#51) onto the tubes and covered the end with four Foam Roll End Caps (#52).

  • Page 13: Parts List

    PARTS LIST KEY NO. DESCRIPTION Q’ty Pulley Bushing Main Base Frame Lock Knob Front Stabilizer Foam Roll Tube Rear Stabilizer Clip 1” Bushing Foot Platform Foam Roll Long Pivot Support Bar Short Pivot Support Bar Foam Roll End Cap Weight Adjustment Bar 2”...

  • Page 15: How To Use

    HOW TO USE How to use the quick release connector. The Clip is removed from the Connector. Connector Clip Place the chain in between the connector and insert the Clip through the holes. Chain Insert Push down the Clip to secure.

  • Page 16: Warranty

    IMPEX INC. LIMITED WARRANTY IMPEX Inc. ("IMPEX") warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of two years on the Frame from the date of purchase. This warranty extends only to the original purchaser. IMPEX's obligation under this Warranty is limited to replacing or repairing, at IMPEX's option.
