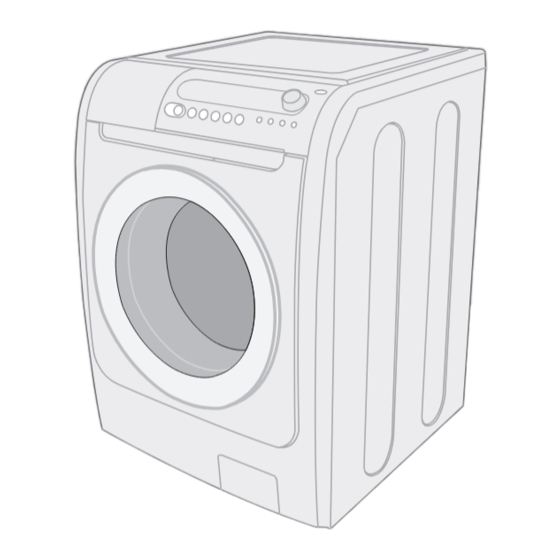

Page 1: Washing Machine
Washing Machine Owner’s Instructions WD6102CKC Register your product at www.samsung.com/global/register Code No.: DC68-02384F-EN... -
Page 3: Air Wash
Features 1. Air Wash Air wash can remove any bad smells from the laundry or reduce the need for dry cleaning. Mite Sterilization: Sterilizes any bacteria or mites in the bedding where the water-wash is not effective. 2. Silver nano (Ag+) anti-bacteria, sterilization system Protects your skin and keeps the interior clean and pleasant by removing bacteria from the laundry and adding a silver-nano coating to it. -
Page 4: Safety Precautions
Safety Precautions Congratulations on your purchase of this Samsung washing machine. These Owner’s Instructions contain valuable information on the installation, use, and care of this appliance. Please take the time to read these instructions so that you can take full advantage of the washing machine’s features and enjoy this appliance for many years to come. -
Page 5: Table Of Contents
Table of Contents Safety Precautions ......... . . inside cover Installing the Washing Machine. -
Page 6: Installing The Washing Machine
Unpack your washing machine and inspect it for shipping damage. Also make sure that you have received all of the items shown below. If the washing machine was damaged during shipping or you do not have all of the items, contact your Samsung dealer immediately. Overview of the washing machine... -
Page 7: Selecting A Location
2. Take each bolt head and pull it through the wide part of the hole. Repeat for each bolt. 3. Fill the holes with the supplied plastic covers. 4. Keep the shipping bolts for future use. SAMSUNG Washing Machine Owner’s Instructions A-2... -
Page 8: Connecting The Water Supply Hose
1. Take the red L-shaped arm fitting for the hot water supply hose and connect to the red hot water supply intake on the back of the machine. Tighten by hand. 2. Connect the other end of the hot water supply hose to your sink’s hot water faucet and tighten it by hand. A-3 SAMSUNG Washing Machine Owner’s Instructions... -
Page 9: Positioning The Drain Hose
60 cm above the ground. ln a drain pipe Samsung recommends that you use a 65 cm high vertical pipe; it must be no longer than 90 cm. SAMSUNG Washing Machine Owner’s Instructions A-4... -
Page 10: Plugging In The Machine
CIRCUITS Your washing machine should be operated on a separate circuit from other appliances. Failure to do this may cause the circuit breaker to trip or the fuse to blow. A-5 SAMSUNG Washing Machine Owner’s Instructions... -
Page 11: Washing A Load Of Laundry
4. Add prewash detergent into compartment ( ) (if you desire). Caution : Concentrated or thick fabric softener and conditioner must be diluted with a little water before being poured into the dispenser (prevents the overflow from becoming blocked.) SAMSUNG Washing Machine Owner’s Instructions B-1... -
Page 12: Overview Of The Control Panel
Selected in the sequence: Cupboard Extra Iron Light Time (30min 1:00min 1:30min 2:00min 2:30min) Cupboard. Silver Wash button ( Silver water is supplied in the wash cycle as well as the last rinse, featuring sterilization and antibacterial coating. B-2 SAMSUNG Washing Machine Owner’s Instructions... -
Page 13: For The Silver Wash Washing
For Prewash, put a supplementary detergent in the detergent tray. Silver Wash: If it is used together with fibre softener, its effect may be decreased. 6. Press Start/Pause button. : It automatically performs an optimal washing with sensing the weight of clothes. SAMSUNG Washing Machine Owner’s Instructions B-3... -
Page 14: Childlock (Button Lock Function
10. Press the Delay Start button repeatedly to cycle through the available delayed start options (up to 24 hours maximum in one hour increments.). Displayed hours means the time of finished washing- cycle. 11. Press the Start/Pause button and the machine will begin the cycle. B-4 SAMSUNG Washing Machine Owner’s Instructions... -
Page 15: Washing Clothes Using Fuzzy Logic
Washing a Load of Laundry Washing clothes using Fuzzy Logic Your new washing machine makes washing clothes easy, using Samsung’s “Fuzzy Logic” automatic control system. When you select a wash program, the machine will set the correct temperature, washing time, and washing speed. -
Page 16: Using Dry Course
3. Press the Start/Pause button. The Delay Start indicator will light, and the clock will begin counting down until it reaches your finish time. 4. To cancel Delay Start, press the Power button, then turn the washing machine on again. B-6 SAMSUNG Washing Machine Owner’s Instructions... -
Page 17: To Add Laundry
If you want to wash it lightly : You may wash it just by selecting the 40°C-Water without bleaching agent. 4. Press Start/Pause button. Notice : About one time a month is enough for the tub-washing. SAMSUNG Washing Machine Owner’s Instructions B-7... -
Page 18: Performing Air Wash
Avoid using the following clothes for the insecticide process 1) Hard bedding such as a wooden pillow (neck-rest) - Pillows or blankets filled with plastic or starch rather than cotton. - Electric blankets 2) Furry blankets 3) Bulky blankets B-8 SAMSUNG Washing Machine Owner’s Instructions... -
Page 19: Washing Tips And Hints
If you do not know how hard your water is, ask your water authority. Notice : Keep detergents and additives in a safe, dry place out of the reach of children. SAMSUNG Washing Machine Owner’s Instructions B-9... -
Page 20: Maintaining The Washing Machine
1. Wipe the washing machine surfaces, including the control panel, with a soft cloth and non- abrasive household detergents. 2. Use a soft cloth to dry the surfaces. 3. Do not pour water on the washing machine. C-1 SAMSUNG Washing Machine Owner’s Instructions... -
Page 21: Cleaning The Detergent Drawer And Recess
3. Unscrew the filter cap and take it out. 4. Wash any dirt or other material from the filter. Make sure the drain pump propeller behind the filter is not blocked. Replace the filter cap. 5. Replace the filter-cover. SAMSUNG Washing Machine Owner’s Instructions C-2... -
Page 22: Cleaning The Water Hose Mesh Filter
Also clean the inside and outside of the threaded connector. option option 4. Push the filter back into place. 5. Screw the hose back onto the washing machine. 6. Turn on the faucet and make sure the connections are watertight. C-3 SAMSUNG Washing Machine Owner’s Instructions... -
Page 23: Troubleshooting
1. Try to remedy the problem (See “Troubleshooting” on this page). 2. Restart the programme to see if the fault is repeated. 3. If the malfunction persists, call after-sales service and describe the problem. SAMSUNG Washing Machine Owner’s Instructions D-1... -
Page 24: Programme Chart
69456. 3. Consumption in individual homes may differ from the values given in the table due to variations in the pressure and temperature of the water supply, the load and the type of laundry. E-1 SAMSUNG Washing Machine Owner’s Instructions... -
Page 25: Appendix
Pay particular attention to cords at plugs, convenience receptacles, and the point where they exit from the unit. • Do not overload the wall outlet or extension cords. Overloading can result in fire or electric shock. SAMSUNG Washing Machine Owner’s Instructions F-1... -
Page 26: Protecting The Environment
WASHING AND HEATING 2100 W DRYING 1900 W 106 l WATER VOLUME MODEL WD6102CKC SPIN REVOLUTION 1200 rpm The appearance and specifications of the product are subject to change without prior notice for purposes of enhancement. F-2 SAMSUNG Washing Machine Owner’s Instructions... - Page 27 Memo...
