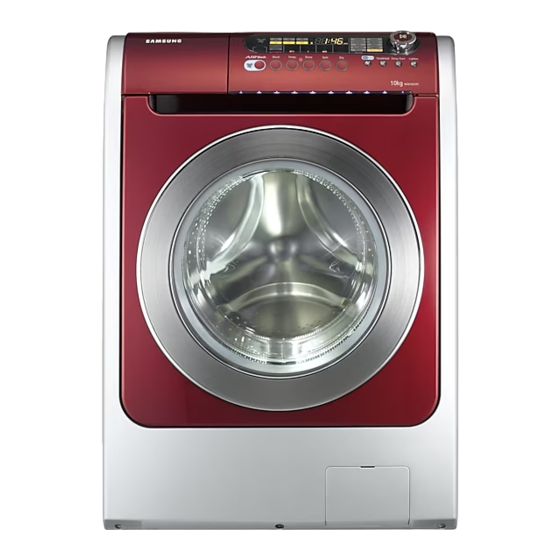

Samsung WD6122CKC User Manual
Samsung washing machine user manual
Hide thumbs
Also See for WD6122CKC:
- Installation manual (15 pages) ,
- Owner's instructions manual (28 pages)
Related Manuals for Samsung WD6122CKC
Summary of Contents for Samsung WD6122CKC
-
Page 1: Washing Machine
WD6122CKC WD6122CKS Washing Machine user manual imagine the possibilities Thank you for purchasing a Samsung product. To receive a more complete service, please register your product at www.samsung.com/global/register... -
Page 2: Air Wash
features 1. Air wash Air wash can remove any bad smells from the laundry or reduce the need for dry cleaning. Mite sterilization: Sterilizes any bacteria or mites in the bedding where the water-wash is not effective. 2. Silver nano (Ag+) anti-bacteria, sterilization system Protects your skin and keeps the interior clean and pleasant by removing bacteria from the laundry and adding a silver-nano coating to it. -
Page 3: Safety Information
It’s your resposibility to use common sense, caution, and care when installing, maintaining, and operation your washer. Samsung is not liable for damages resulting from improper use. IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS... - Page 4 safety information The glass door becomes very hot during the washing cycle. Keep children away from the appliance while it is in use. Do not attempt to repair the appliance yourself. Repairs made by inexperienced or unqualified persons may cause injury and/or make more serious repairs to the appliance necessary.
-
Page 5: Table Of Contents
contents INSTALLING THE WASHING WASHING A LOAD OF LAUNDRY MAINTAINING THE WASHING TROUBLESHOOTING PROGRAMME CHART Unpacking the Washing Machine MACHINE Overview of the washing machine Selecting a location Adjusting the leveling feet Removing the shipping bolts Connecting the water supply hose Connecting the water supply hose (Option) Positioning the drain hose Plugging in the machine... -
Page 6: Installing The Washing Machine
Unpack your washing machine and inspect it for shipping damage. Also make sure that you have received all of the items shown below. If the washing machine was damaged during shipping or you do not have all of the items, contact your Samsung dealer immediately. OVERVIEW OF THE WASHING MACHINE... -
Page 7: Selecting A Location
1. Loosen the leg bolt by turning it with your hand until it is at the desired height. 2. Tighten the locking nut by turning it with a (-) screwdriver. If the washer is placed on an uneven or weak surface, noise or vibration occurs. (Only a l degrees angle is allowed.) -
Page 8: Connecting The Water Supply Hose
installing the washing machine CONNECTING THE WATER SUPPLY HOSE The water supply hose must be connected to the washing machine at one end and to the water faucet at the other. Do not stretch the water supply hose. If the hose is too short replace the hose with a longer, high pressure hose. -
Page 9: Positioning The Drain Hose
The drain pipe branch must be above the sink siphon so that the end of the hose is at least 60 cm above the ground. ln a drain pipe Samsung recommends that you use a 65 cm high vertical pipe; it must be no longer than 90 cm. Installing the washing machine _9... -
Page 10: Plugging In The Machine
installing the washing machine PLUGGING IN THE MACHINE For European Users. You will NOT need to ground the plug of the washing machine. For U.S. Users. You MUST ground the plug of the washing machine. Check with a licensed electrician before using the machine to make sure it is properly grounded. -
Page 11: Washing A Load Of Laundry
washing a load of laundry WASHING FOR THE FIRST TIME Before washing clothes for the first time, you must run a complete cycle without clothes. To do this: 1. Press the Power button. 2. Pour a little detergent into compartment ( ) in the detergent drawer. -
Page 12: Overview Of The Control Panel
washing a load of laundry OVERVIEW OF THE CONTROL PANEL Displays the remaining wash cycle time, all of washing information and error Display panel messages. Use to remove bad smells. Air Wash button Selected in the sequence: Suit/Jumper Knit Coat Bedding Cancel Use this to only perform washing or prewash. -
Page 13: For The Silver Wash Washing
The temperature will be reduced by 10 degrees more than initially specified. Power The reduced temperature does not deteriorate the washing performance Saving(Lighten) greatly, and saves 25% electricity. This feature is available for at least -40˚C. Fuzzy Control Turn the dial to select one of the 10 available wash programs. dial Start/Pause Press to pause and restart programs. -
Page 14: Childlock (Button Lock Function)
washing a load of laundry CHILDLOCK (BUTTON LOCK FUNCTION) Is a function for children not to handle the washing machine. Setting/Release If you want to set up or release that function, press both Temperature and Rinse buttons at the same time in 3sec. How to Set up: 1. -
Page 15: Washing Clothes Using Fuzzy Logic
WASHING CLOTHES USING FUZZY LOGIC Your new washing machine makes washing clothes easy, using Samsung’s “Fuzzy Logic” automatic control system. When you select a wash program, the machine will set the correct temperature, washing time, and washing speed. To wash clothes using the Fuzzy Logic programs: 1. -
Page 16: Using Dry Course
washing a load of laundry USING DRY COURSE Refer to the label of drying capacity and be sure to put in the clothes to the lower level than the marked line for the dried clothe of 7.0kg. 1. Open the door, put in the clothes and close the door again. 2. -
Page 17: To Add Laundry
TO ADD LAUNDRY 1. Press the Stop&Add button. • The washing machine will automatically pause to operate. 2. Wait about 30 seconds and check the Stop&Add button for the lamp state. • Blinking: the machine drains water down to the safety level so it can get an additional quantity of laundry (displayed in pause mode) •... -
Page 18: Performing Air Wash
washing a load of laundry PERFORMING AIR WASH Air-wash can remove any bad smells from the laundry owing to its powerful airing system. Clothing that can be deodorized includes woolen coats, cotton or down jumpers, sweaters and suits. (Two suits or less) 1. -
Page 19: Washing Tips And Hints
WASHING TIPS AND HINTS Sorting your laundry: Sort your laundry according to the following characteristics: • Type of fabric care label symbol: Sort laundry into cottons, mixed fibers, synthetics, silks, wools and rayon. • Colour: Divide whites and colours. Wash new, coloured items separately. •... -
Page 20: Maintaining The Washing Machine
maintaining the washing machine DRAINING THE WASHING MACHINE IN AN EMERGENCY 1. Unplug the washing machine from the power supply. 2. Open the filter-cover by using a coin or a key. 3. Unscrew the emergency drain cap by turning left. Grip the cap on the end of the emergency drain tube and slowly pull it out about 15 cm. -
Page 21: Cleaning The Detergent Drawer And Recess
CLEANING THE DETERGENT DRAWER AND RECESS 1. Press the release button inside the detergent drawer and pull it out. 2. Clean the drawer recess and wipe off hardened detergent, fiber softener and water inside. 3. Remove any detergent residue inside. 4. -
Page 22: Cleaning The Water Hose Mesh Filter
maintaining the washing machine CLEANING THE WATER HOSE MESH FILTER You should clean the water hose mesh filter at least one time per year, or when you see the following error message on the display: To do this: 1. Turn off the water source to the washing machine. 2. -
Page 23: Troubleshooting
troubleshooting PROBLEMS AND SOLUTIONS PROBLEM SOLUTION • The washing machine will not start • • • No water or insufficient • water supply • • • Detergent remains in the • detergent drawer after the • wash program is complete Washing machine vibrates •... -
Page 24: Understanding Error Messages
troubleshooting UNDERSTANDING ERROR MESSAGES ERROR CODE Before contacting After-Sales service: 1. Try to remedy the problem (See “Troubleshooting” on this page). 2. Restart the programme to see if the fault is repeated. 3. If the malfunction persists, call after-sales service and describe the problem. 24_ Troubleshooting SOLUTION •... -
Page 25: Programme Chart
programme chart PROGRAMME CHART user option) Detergent and ad- ditives Program load Pre- Soft- (kg) Wash wash ener Cotton Intensive Boil Eco-Boil Quick Towel 1sheet Blanket (Within 3kg) Wool ... -
Page 26: Appendix
appendix FABRIC CARE CHART Resistant material Delicate fabric Item may be washed at 95˚C Item may be washed at 60˚C Item may be washed at 40°C Item may be washed at 30°C Item may be hand washed Dry clean only Can be bleached in cold water Do not bleach Can be ironed at 200˚C max... -
Page 27: Declaration Of Conformity
12.0 kg [DRY LAUNDRY] 7.0 kg 220 V WASHING 120 V 220 V WASHING AND HEATING 120 V 220 V DRYING 120 V 110 ℓ MODEL 150 W 137 W 2100 W 1020 W 1900 W 1350 W WD6122CKC/WD6122CKS 1200 rpm Appendix _27... - Page 28 QUESTIONS OR COMMENTS? Country CALL OR VISIT US ONLINE AT 1800-29-3232 THAILAND www.samsung.com/th 02-689-3232 Code No. DC68-02384Q-EN...
