Heath Zenith 5212 Specification Sheet

Instant Motion Sensor
Light Control
Models 5212 and 5213
Features
• Turns on lighting when motion is detected.
• Automatically turns lighting off.
• Photocell keeps the lighting off during daylight
hours.
Requirements
• The Light Control requires a properly installed and
working light fixture, operating on 120 volts AC.
• If you want to use Manual Mode, the fixture must be
wired through a switch.
Package includes:
• Motion Sensor
• Lamp Adapter (5213)
• Two mounting screws

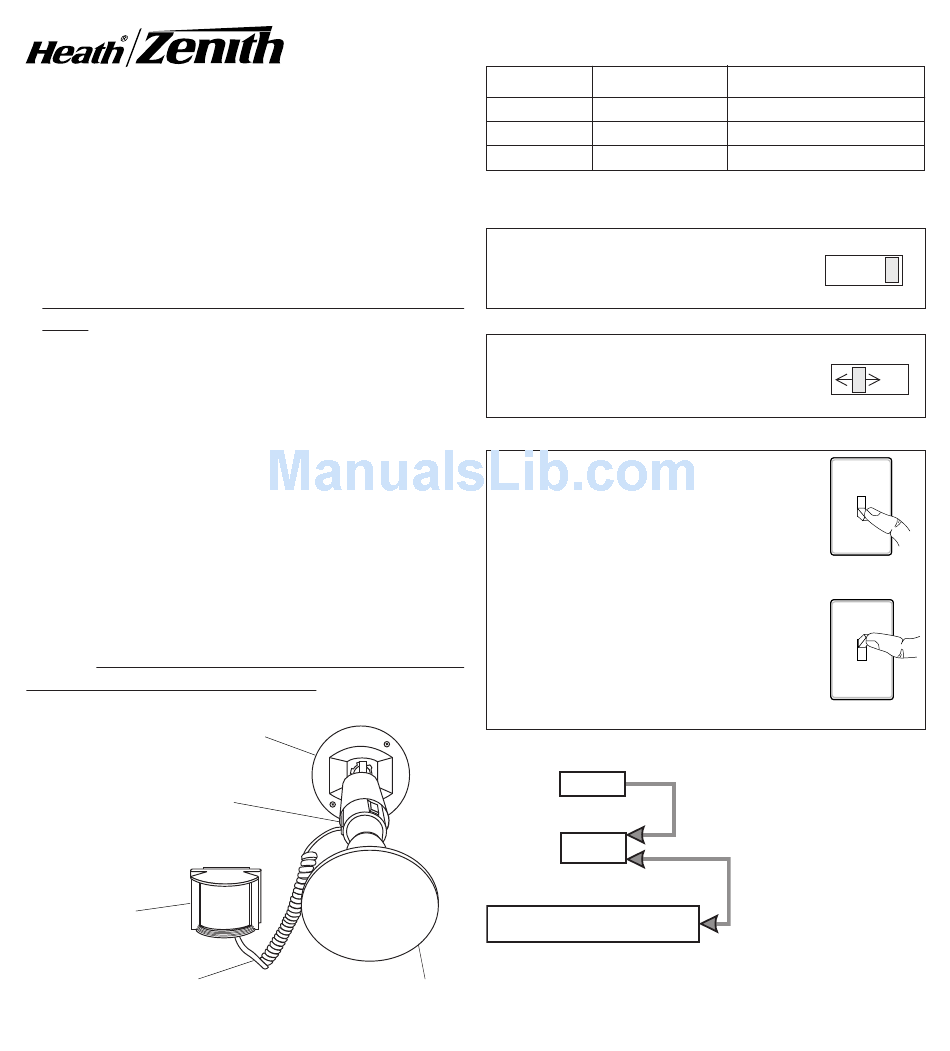

Typical Installation
The lamp module should only be used with Listed lamp
fixtures. Never use a light bulb with a higher wattage
rating than the rating of your fixture.
Existing Light Fixture
Lamp Adapter
Sensor
Module
Sensor
Cord
© 2005 DESA Specialty Products™
Parts
Floodlamp
(not included)
OPERATION
Mode: On-Time:
Test
5 Sec
Auto 1, 5, 10 min.
Manual Until Dawn*
* resets to Auto Mode at dawn.
Put the ON-TIME switch on the bottom
of the sensor in the TEST position.
Put the ON-TIME switch in the 1, 5
or 10 minute position.
MANUAL OVERRIDE
Manual mode only works at night
because daylight returns the sensor
to AUTO.
Flip the light switch off for one second
then back on to toggle between AUTO
and MANUAL MODE.
ManualmodeworkswiththeON-TIME
switch in the 1, 5, or 10 position.
Mode Switching Summary
TEST
AUTO
MANUAL MODE
* If you get confused while switching modes, turn the
power off for one minute, then back on. After the cali-
bration time the control will be in the AUTO mode.
Works: Day
x
TEST
ON-TIME
10 5 1 TEST
AUTO
ON-TIME
10 5 1 TEST
1 Second OFF
then...
... back on.
Move ON-TIME Switch
to 1, 5 or 10 minutes
Flip switch off for
one second then
back on
