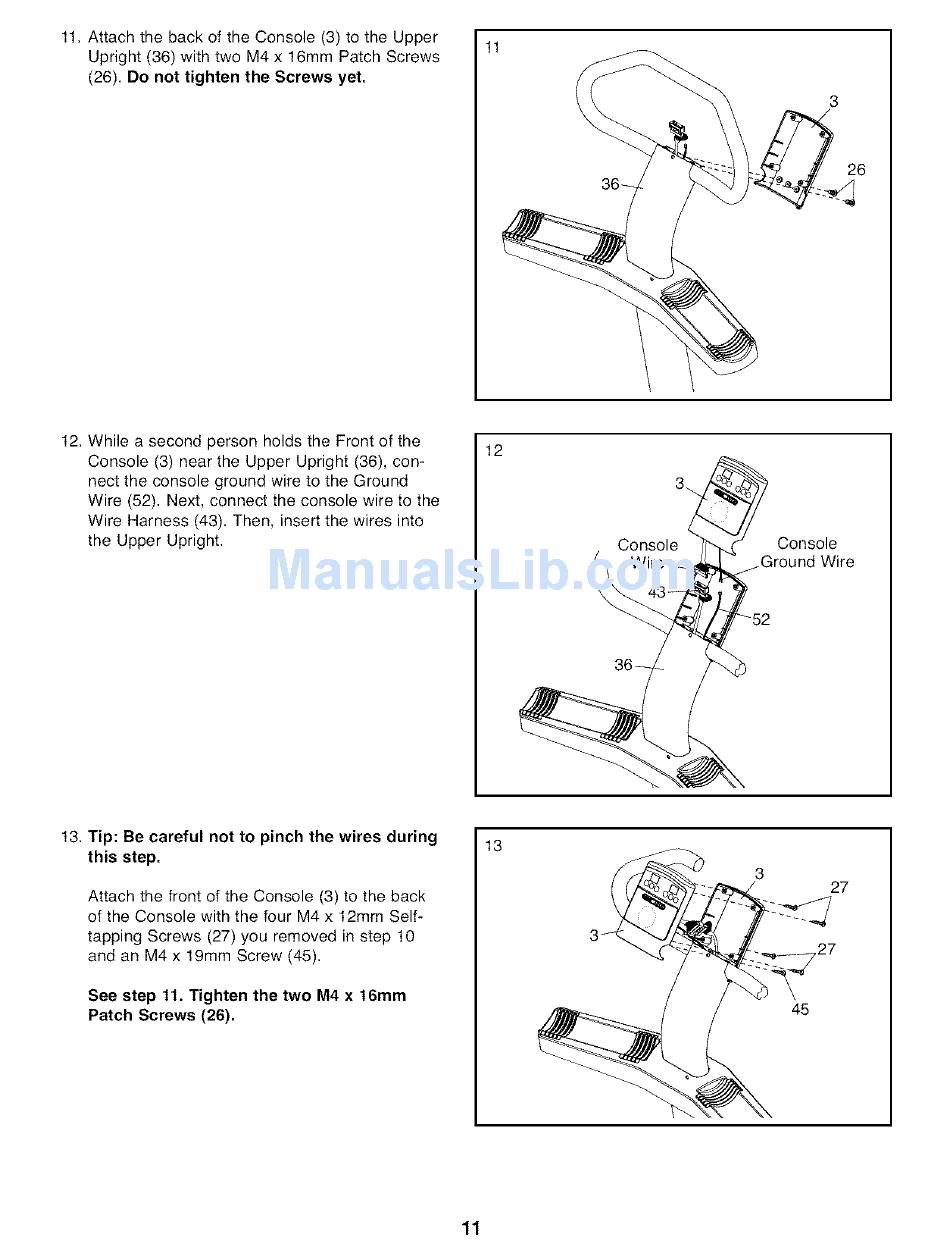

11. Attach the back of the Console (3) to the Upper
Upright (36) with two M4 x 16mm Patch Screws
(26). Do not tighten the Screws yet.
11
3
26
12. While a second person holds the Front of the
Console (3) near the Upper Upright (36), con-
nect the console ground wire to the Ground
Wire (52). Next, connect the console wire to the
Wire Harness (43). Then, insert the wires into
the Upper Upright.
12
3_.
Console
Console
13. Tip: Be careful not to pinch the wires during
this step.
Attach the front of the Console (3) to the back
of the Console with the four M4 x 12mm Self-
tapping Screws (27) you removed in step 10
and an M4 x 19ram Screw (45).
See step tt. Tighten the two M4 x 16ram
Patch Screws (26).
13
45
27
27
11
