Summary of Contents for Waring FP40

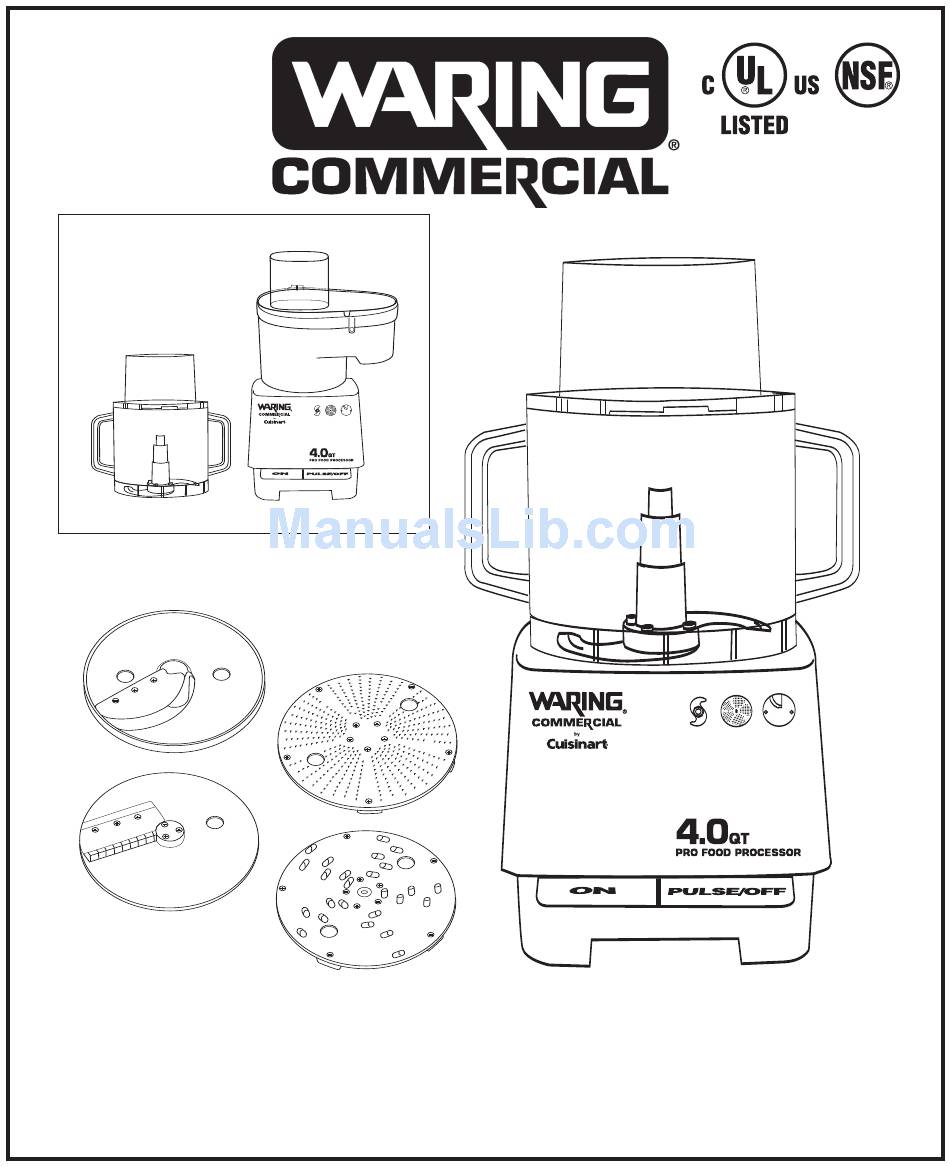

- Page 1 FP40C Operation Manual for Waring FP40 and FP40C Food Processors...
-
Page 2: Important Safeguards
Return appliance to the nearest authorized service facility for examination, repair or adjustment. 11. The use of attachments not recommended or sold by Waring may cause fire, electric shock or injury. 12. Do not use outdoors. -
Page 3: Grounding Instructions
GROUNDING INSTRUCTIONS For your protection, this appliance is equipped with a 3-conductor cordset. 120 volt units are supplied with a molded 3-prong grounding-type plug (NEMA5-15P), and should be used in combination with a properly connected grounding-type outlet as shown in Figure A. If a grounding-type outlet is not available, an adapter, shown in Figure B, may be installed to allow a 3-prong plug to be used in a 2-slot wall outlet. -
Page 4: Introduction
The clear bowl and processing covers are convenient for viewing food processing results, and extremely heavy duty for standing up to daily use. Use it well and use it often. Waring’s food processors will be an aid to making good food and plenty of it! -
Page 5: Table Of Contents
Disassembly of Batch Bowl Parts, FP40 & FP40C........ -
Page 6: The Parts
FP40 and FP40C food processors are compact, easy-to-use appliances. Completely assembled, the FP40 is only 21" high (53.3cm) and stores conveniently when not in use. For more compact storage, the cover can be stored upside down with the feed tube in the bowl. When stored this way, the unit is only 15 ⁄... - Page 7 BATCH CONTINUOUS BOWL FEED FP40 is batch bowl model FP40C is combination model with batch bowl and continuous parts...
-
Page 8: Assembly Of Batch Bowl Parts, Fp40 & Fp40C
• The FP40 and FP40C food processors have a locking mechanism that will secure the discs in place while the machine is running. - Page 9 Batch Bowl Assembly continued……. • Place the cover on the bowl, with the feed tube on the left, slightly toward the front. The locking tabs on the cover should be at the left of the locking tabs on the front rim of the work bowl. •...
-
Page 10: Disassembly Of Batch Bowl Parts, Fp40 & Fp40C
The rotation moves the locking pin out of the slot in the disc’s center hub. Note: The FP40 and FP40C food processors have a locking mechanism that will secure the discs in place while the machine is running. Two locking pins on the shaft mesh with slots in the hub of the accessory disc and hold it securely in place. -
Page 11: Assembly Of Continuous Feed Chute Parts Fp40C
ASSEMBLY of CONTINUOUS FEED CHUTE PARTS FP40C • Clean and sanitize the motor base, and wash, rinse, and sanitize the continuous feed chute, cover, slinger disc, food pusher, food pusher insert and processing tools prior to initial use. • Place the base on a counter or table near a 3-prong electrical outlet. Position it so that you are looking at the front of the unit and can see the control paddles. -
Page 12: Disassembly Of Continuous Feed Chute Parts Fp40C
The rotation moves the locking pin out of the slot in the disc’s center hub. Note: The FP40 and FP40C food processors have a locking mechanism that will secure the discs in place while the machine is running. Two locking pins on the shaft mesh with slots in the hub of the accessory disc and hold it securely in place. -
Page 13: Operating The Controls
OPERATING THE CONTROLS • Plug the machine into an electrical outlet. The outlet must be 110/120 volts/60Hz. • There are two control paddles (levers) located on the base of the machine. They are on the front and they give you fingertip control of processing. They are large enough to find easily in case of emergency. The two controls are: PULSE/OFF How they work:... -
Page 14: Food Preparation
FOOD PREPARATION • Prepare all food items to be processed by washing and peeling as required. Remove pits, stones, and large seeds. • Cut vegetables, meats, cheeses, etc. into sizes that will fit into your choice of small feed tube or large feed tube for processing with accessory discs, or into sizes required by your processing task. -
Page 15: Use Instructions For S-Blade (Cutter Blade) In The Batch Bowl
Tabasco ® . Turn on your Waring food processor and begin adding 2 quarts of vegetable oil (vegetable, olive or peanut, as desired to achieve flavor), pouring very slowly through the feed tube, allowing the oil to fall on top of the S-blade. Allow the machine to run for an additional 20 seconds after all the oil has been added to completely emulsify the mayonnaise. - Page 16 Bread Crumbs Tear fresh or dried breads and put into the work bowl. After putting the bowl cover in place, press the PULSE paddle repeatedly until you reach the consistency desired. For fine powdered bread crumbs, let the food processor run continuously until finished. Grind Nuts for Cakes Put up to 8 cups of nuts (with shells removed) into the work bowl, and press the PULSE paddle repeatedly.
-
Page 17: Use Instructions For Accessory Discs In The Continuous Feed Chute
USE INSTRUCTIONS for ACCESSORY DISCS in the CONTINUOUS FEED CHUTE FP40 & FP40C • Assemble the bowl and accessory disc as instructed in the section titled, “Assembly of Batch Bowl Parts,” page 8, or assemble the continuous feed chute and accessory disc as instructed in the section titled “Assembly of Continuous Feed Chute Parts,”... -
Page 18: Accessory Disc Selection And Use
3 shredding discs Sizes are listed at the end of this manual under “Processing Tools”, page26. Two (2) of these Accessory Discs are included with both the FP40 and FP40C food processors. As of this printing they are: CFP12 - 3 mm, ⁄... -
Page 19: Slicing Operation
Please note that cheese and uncooked meats should not be sliced with a food processor. Waved Slicing Discs Waring Size Size Waring... -
Page 20: Grating Operation
CFP25 ( ⁄ " Fine Grate). Use this disc for extra fine grating of hard cheeses like Romano and Parmesan. Also use this disc for cracker or cookie crumbs or dried bread crumbs. Caution: Do not use this disc for soft cheeses or moist breads as this will clog the disc and give poor results. -
Page 21: Julienne Discs
2 mm x 6.5 mm 5/64" x 1/4" CFP43 10 mm straight FF 3/8" straight FF FP40 and FP40C food processors come with a selection of eight (8) different julienne plates with sizes up ⁄ " x ⁄ ". The CFP39 is ⁄... -
Page 22: Troubleshooting
This section describes potential problems and the correct solutions which should be implemented by the user. Problems which cannot be solved with the guidelines listed below should be referred to one of the Waring Authorized Service Centers for assistance. A listing of authorized service agencies is supplied with each Waring food processor. -
Page 23: Safety Reset Switch
SAFETY RESET SWITCH The SAFETY RESET SWITCH is provided for your convenience and to extend the life of your Waring food processor. It is located on the back of your machine, on the safety interlock tower, protected by a round finger hole. The switch button is red. -
Page 24: Cleaning
CLEANING Clean the food processor and accessories prior to initial use and after each use. Do not use harsh abrasive- type cleaners on any part of the food processor. Cleaning must follow NSF guidelines. Wash the motor shaft with a small brush. Wash, rinse, sanitize and dry the bowl, continuous feed chute, covers, small food pusher, large food pusher, accessory discs, S-blades and ejector/slinger disc prior to initial use, and after use, unless they will be used again immediately. - Page 25 To clean and sanitize the motor base: Clean and sanitize the motor base prior to initial use and after each use. Unplug the unit, then wipe down the exterior surfaces of the motor base with cloths or sponges dampened with a soluble detergent. Next, wipe down with rinse water.
-
Page 26: Processing Tools
PROCESSING TOOLS At this printing, there are 28 processing accessories available for preparing food with your FP40 and FP40C Food Processors. Slicing Discs Shredding Discs Waring Size Size Waring Size Size Item No. Millimeters Inches Item No. Millimeters Inches CFP10 0.8 mm... -
Page 27: Limited Warranty
This warranty does not: a) apply to any product which has become worn, defective, damaged or broken due to use or due to repairs or servicing by other than the Waring Service Center or a Factory Approved Service Center or due to abuse, misuse, overloading or tampering; b) cover incidental or consequential damages of any kind. - Page 28 Any trademarks or service marks of third parties used or referred to herein are the trademarks or service marks of their respective owners. ©2005 314 Ella T. Grasso Ave. 05WC30017 Torrington, CT 06790 www.waringproducts.com IB-3673...
