QuickSpecs

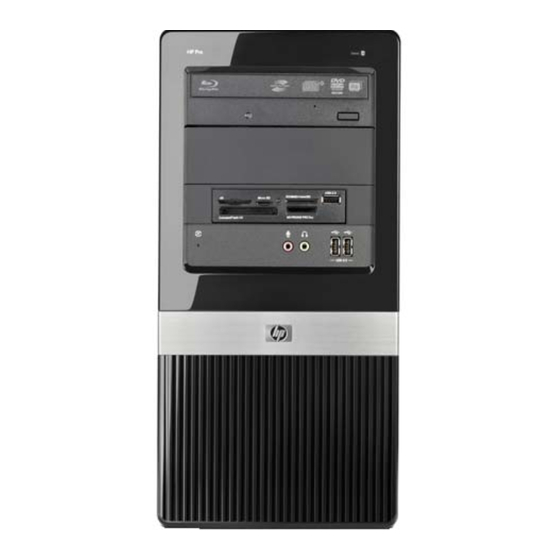

Overview
1. (2) external 5.25" drive bays for optional optical drives
2. Reset/recovery button
3. (1) external 3.5" drive bay for optional media reader
4. Front I/O includes: (2) USB 2.0 ports, dedicated headphone
output, microphone jack
5. Standard efficiency Power Supply
6. Rear I/O includes: (6) USB 2.0 ports, serial port, PS/2 mouse
and keyboard ports, RJ-45 network interface, DVI-D and VGA
video interfaces, microphone jack, audio in/out jacks
Microtower
DA - 13483 North America — Version 8 — March 7, 2011
7.
(2) full-height PCI 2.3 slots, (1) PCIe x1 slot,
(1) PCIe x16 slot
8.
(2) internal 3.5" hard drive bays
9.
PS/2 Scroll Mouse
10. HP Standard Keyboard
11. Monitor (sold separately)
HP Pro 3000 Business PC
Page 1

Advertisement

loading

Related Manuals for HP Pro 3000

Summary of Contents for HP Pro 3000

  • Page 1 QuickSpecs HP Pro 3000 Business PC Overview Microtower 1. (2) external 5.25” drive bays for optional optical drives (2) full-height PCI 2.3 slots, (1) PCIe x1 slot, (1) PCIe x16 slot 2. Reset/recovery button (2) internal 3.5” hard drive bays 3.
  • Page 2 Choice of hard drives and optical drives DDR3 SDRAM system memory Protected by HP Services. Terms and conditions vary by country. Certain restrictions and exclusions apply. DA - 13483 North America — Version 8 — March 7, 2011 Page 2...

  • Page 3: Standard Features And Configurable Components (Availability May Vary By Country)

    QuickSpecs HP Pro 3000 Business PC Standard Features and Configurable Components (availability may vary by country) Processor and Speed Intel Pentium Dual-Core Processors: One of the following Intel Pentium E5300 Processor (2.6-GHz, 2-MB L2 cache, 800-MHz FSB) Intel Pentium E5400 Processor (2.7-GHz, 2-MB L2 cache, 800-MHz FSB) Intel Pentium E6300 Processor (2.8-GHz, 2-MB L2 cache, 1066-MHz FSB)
  • Page 4 QuickSpecs HP Pro 3000 Business PC Standard Features and Configurable Components (availability may vary by country) 2007 Microsoft Office Ready PC Microsoft Office 2007 Basic Microsoft Office 2007 Small Business Microsoft Office 2007 Professional HP Recovery Manager Mozilla Firefox for HP Virtual Solutions...
  • Page 5 Realtek 8111DL GbE Ethernet Controller Intel Gigabit CT Desktop NIC LSI PCIe x1 56K International SoftModem HP Wireless 802.11 b/g/n PCIe x1 Card Graphics Intel Graphics Media Accelerator X4500HD ATI Radeon HD 4350 (512MB) FH PCIe x16 Card (for MT only)
  • Page 6 Hood Sensor for SFF Port Control Cover HP Chassis Security Kit HP Parallel Port Adapter HP Serial Port Full Height Adapter for MT HP Serial Port Low Profile Adapter for SFF HP Serial/Parallel PCI Card for MT HP 1394a FireWire 400 PCI Card DA - 13483 North America —...

  • Page 7: System Details

    QuickSpecs HP Pro 3000 Business PC System Details Base Unit MT: Micro ATX Microtower chassis, including power supply and front bezel; five (5) drive bays and four expansion slots SFF: Micro ATX Small Form Factor chassis, including power supply and front bezel; three (3) drive...
  • Page 8 QuickSpecs HP Pro 3000 Business PC System Details Weight & Dimensions Chassis Dimensions 15.14 x 7.27 x 16.36 in 385 x 185 x 416 mm (MT) (H x W x D) Packaged Dimensions 19.63 x 24.13 x 10.56 in 498.6 x 613 x 268.2 mm...
  • Page 9 QuickSpecs HP Pro 3000 Business PC System Details Security Padlock loop Kensington Lock Support Noble Universal Clamp Lock Cable Kit Port Control Cover supported Power Supply MT: 250W PFC HV immunity (410V/s) and 300W NPFC power supply with a 115v/230v line switch (varies by country/region) as Standard configuration for APJ and LANA regions respectively, and 300W PFC HV immunity (410V/s) with a 115v/230v line switch;...
  • Page 10 QuickSpecs HP Pro 3000 Business PC System Details Support single Intel Core 2 Duo and Core 2 Quad, or Pentium dual-core processors Chipset Intel G45S Express Intel I/O Controller Hub 10 (ICH10R) Front Side Bus Frequency 800/1066/1333 MHz Memory DDR3 SDRAM...
  • Page 11 QuickSpecs HP Pro 3000 Business PC System Details Board Size Micro-ATX, PCB Size: 9.6 x 9.6 in (24.38 x 24.38 cm) 4-layer PCB with green color Additional Features Bootable without keyboard, mouse or monitor Keyboard/mouse/USB wake up Support S3, S4 and S5...
  • Page 12 Performance of system, options, and ancillary equipment will vary depending on the system Specs configuration. Levels presented do not account for non-HP/Compaq installed hardware. Ambient Air Temperature Operating MT: Operating 41° to 95°F (5 to 35°C) (Test 0 to 104°F (40°C));...
  • Page 13 QuickSpecs HP Pro 3000 Business PC System Details Storage MT: 90% relative humidity (Rh), 60°C for 12 hours, non-condensing SFF: 90% relative humidity (Rh), 60°C for 12 hours, non-condensing Altitude Operating MT: 0 to 10,000 feet (0 to 3048 meters) - This value may be limited by the type and number of options installed.
  • Page 14 NOTE 2: On-site service may be provided pursuant to a service contract between HP and an authorized HP third-party provider, and is not available in certain countries. Global service response times are based on commercially reasonable best effort and may vary by country.
  • Page 15 HP USB Smartcard Keyboard (Carbonite/Silver) ED707AA HP USB PS2 Washable Keyboard VF097AA HP USB Mini Keyboard AS601AA HP Promo 2.4GHz Wireless Keyboard & Mouse HP 2.4GHz Wireless Keyboard & Mouse Mice HP PS/2 2-Button Optical Scroll Mouse EY703AA HP USB 2-Button Optical Scroll Mouse...
  • Page 16 DL139A HP DVI to DVI Cable DC198A Optical Drives HP 16X/48X SATA DVD-ROM Drive BLK AR629AA HP 16X SATA SuperMulti LightScribe DVD Drive BLK AR630AA HP 16X SATA Blu-ray Writer BLK AR482AA Security HP Business PC Security Lock Kit PV606AA...
  • Page 17 Adding or removing memory modules while voltage is present may cause irreparable damage to the memory modules or system board. HP recommends dual-channel symmetric configurations for maximum performance. For best performance, add the same amount of total memory to each channel and do not mix speeds. For dual-channel symmetric performance, the total amount of memory in each channel must be equal.
  • Page 18 QuickSpecs HP Pro 3000 Business PC Storage HP Pro 3000 Microtower Business PC Maximum Quantity Supported Position Supported Controller Drive Support Media Reader Internal USB 2.0 port Diskette Drive DVD-ROM Drives 1, 2 SATA SuperMulti LightScribe Drives 1, 2 SATA...
  • Page 19 QuickSpecs HP Pro 3000 Business PC Storage HP Pro 3000 Small Form Factor Business PC Maximum Quantity Supported Position Supported Controller Drive Support Media Reader Internal USB 2.0 port Diskette Drive DVD-ROM Drives SATA SuperMulti LightScribe Drives SATA Blu-Ray JB Writer SATA 3.5"...

  • Page 20: Technical Specifications

    QuickSpecs HP Pro 3000 Business PC Technical Specifications Integrated Realtek Type Integrated ALC662-GR Audio HD Audio compatible codec Sampling (DAC and ADC) Supports 44.1/48/96 KHz Audio Jacks Mic-In Line-In Line-Out / Headphone Out Power Support Digital: 3.3V Analog: 5V Other Meets Mircrosoft Windows Vista (WLP 3.08) Premium requirements...
  • Page 21 QuickSpecs HP Pro 3000 Business PC Technical Specifications Intel Gigabit CT Desktop Connector RJ-45 Controller Intel WG82574L Gigabit Ethernet Controller Memory Integrated Dual 48K configurable transmit receive FIFO Buffers Data rates supported 10/100/1000 Mbps Compliance IEEE 802.1P, 802,1Q, 802.2, 802.3, 802.3AB and 802.3u compliant, 802.3x...
  • Page 22 QuickSpecs HP Pro 3000 Business PC Technical Specifications Other TIA/EIA 602 standard AT command set Integrated DTE interface with speeds of up to 115.2 Kbps, parallel 16550a UART-compatible interface Optional ring wakeup signal Operating Temperature 32° to 158° F (0° to 70° C)
  • Page 23 Microsoft DirectX® 10, OpenGL® 1.5 (OpenGL® 2.0 available in a driver update) Support Resolutions Supported NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP. DA - 13483 North America — Version 8 — March 7, 2011 Page 23...
  • Page 24 NVIDIA GeForce G210 HDMI (512MB) Full-Height (FH) PCIe x16 Graphics Card (VN565AA) display resolutions and refresh rates NOTE: Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP. Resolution Maximum Refresh Rate (Hz)

  • Page 25: Specification

    NVIDIA GeForce G210 HDMI (512MB) Low-Profile (LP) PCIe x16 Graphics Card (AY472AA) display resolutions and refresh rates NOTE: Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP. DA - 13483 North America — Version 8 — March 7, 2011...
  • Page 26 QuickSpecs HP Pro 3000 Business PC Technical Specifications Resolution Maximum Refresh Rate (Hz) Analog (VGA) Connection Digital (DVI) Connection Digital (HDMI) Connection 640x480 720x480 720x576 800x600 1024x768 1152x720 1152x864 1280x720 1280x768 1280x960 1280x1024 1440x900 1600x1200 Board display options Dual Display Support: VGA+HDMI, DVI+HDMI...
  • Page 27 ATI HD4350 (512 MB) PCIe x16 Graphics Controller display resolutions and refresh rates NOTE: Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP All standard VGA text/graphics modes are supported in addition to table below.

  • Page 28: Input/Output Connectors

    X.Org**. ** Linux drivers are available from ATI's website and may be available in a Linux distribution. Refer to the Open Source and Linux from HP website: DA - 13483 North America — Version 8 — March 7, 2011 Page 28...
  • Page 29 Characteristics - Limits and Methods of Measurement. ATI Radeon HD 4550 DH PCIe x16 Graphics Card display resolutions and refresh rates NOTE: Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP. Resolution...
  • Page 30 ATI Radeon HD 4650 1 GB PCIe x16 Graphics Card display resolutions and refresh rates NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP DA - 13483 North America — Version 8 — March 7, 2011...
  • Page 31 Linux x86 and x86_64 distributions using XFree86 or X.Org** ** Linux drivers are available from ATI's website and may be available in a Linux distribution. Refer to the Open Source and Linux from HP website: http://www.hp.com/wwsolutions/linux/products/clients/ for support information. Option kit contents...
  • Page 32 QuickSpecs HP Pro 3000 Business PC Technical Specifications radio disturbance characteristics of Information Technology Equipment EMC Immunity: CISPR 24:1997/EN 55024:1998 - Information Technology Equipment - Immunity Characteristics - Limits and Methods of Measurement. HP PS/2 or USB Standard NOTE: Please see the QuickSpecs for Technical Specifications and additional information: Keyboard http://h18000.www1.hp.com/products/quickspecs/11880_na/11880_na.html...
  • Page 33 NOTE: Please see the QuickSpecs for Technical Specifications and additional information: Blu-ray Writer http://h18000.www1.hp.com/products/quickspecs/13321_na/13321_na.html (Worldwide) Port control cover Prevent access to ports at the back of your HP Compaq Business Desktop with a rear port controller cover. Port control cover Key Benefits Prevent access to rear ports...
  • Page 34 QuickSpecs HP Pro 3000 Business PC Technical Specifications HP 2nd Serial Port NOTE: Please see the QuickSpecs for Technical Specifications and additional information: Adapter http://h18000.www1.hp.com/products/quickspecs/12396_na/12396_na.html (Worldwide) HP Parallel Port Adapter HP Serial/Parallel PCI Card HP 22-in-1 Media Card USB interface USB 2.0 High-speed device via PCI card or pass -through via internal USB port...
  • Page 35 QuickSpecs HP Pro 3000 Business PC Technical Specifications Storage environmental Test Parameters/Conditions 60°C @ 80% R.H. for 96 hours extremes -30°C @ 20% R.H. for 48 hours No power applied Delta °C < 1.0°C/min Delta % R.H. < 1.5% R.H./min...

  • Page 36: Additional Information

    This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive - 2002/95/EC. This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive - 2002/96/EC. This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water and Toxic Enforcement Act of 1986).
  • Page 37 RoHS Directive on a worldwide basis. By July 1, 2006, RoHS substances will be virtually eliminated (virtually = to levels below legal limits) for all HP electronic products subject to the RoHS Directive, except where it is widely recognized that there is no technically feasible alternative (as indicated by an exemption under the EU RoHS Directive).

  • Page 38: Hewlett-Packard

    HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
