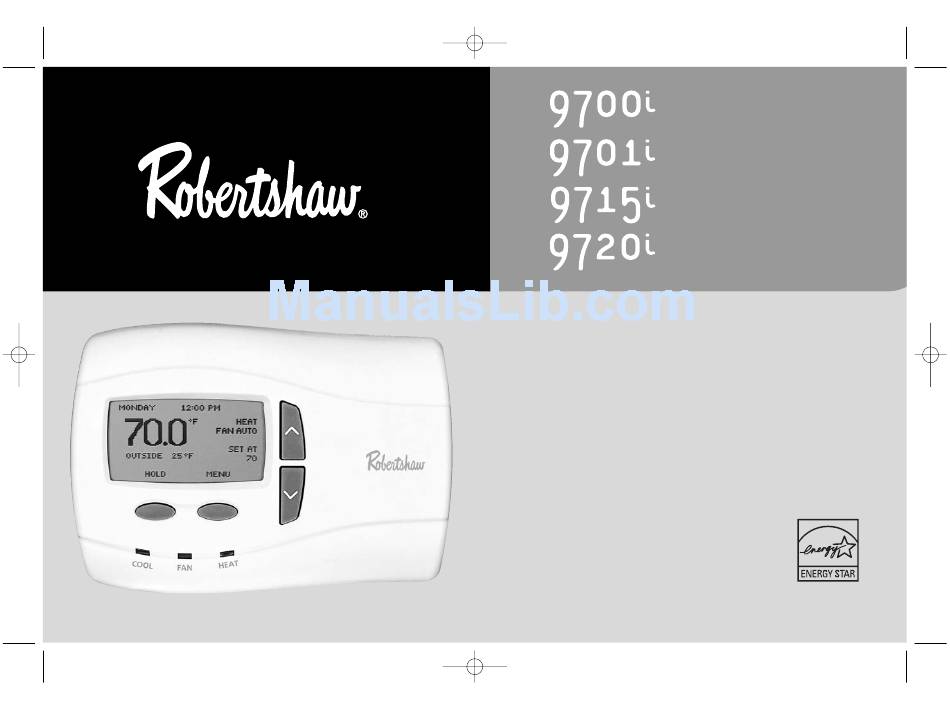

- Page 1 110-1023E.qxd 11/18/04 10:50 AM Page 1 DELUXE PROGRAMMABLE THERMOSTATS User's Manual Menu Driven Display Fully Programmable 24 VAC with Worry-Free Memory Storage English, Spanish or French Display Option 110-1023E Two Year Warranty...
-
Page 2: Important Safety Information
110-1023E.qxd 11/18/04 10:50 AM Page 2 IMPORTANT SAFETY INFORMATION WARNING: Always turn off power at the main power source by unscrewing fuse or switching circuit breaker to the off position before installing, removing, or cleaning this thermostat. Read all of the information in this manual before programming this thermostat. This is a 24V AC low-voltage thermostat. -
Page 3: Table Of Contents
110-1023E.qxd 11/18/04 10:50 AM Page 3 TABLE OF CONTENTS How do I change the time of day and day of the week? ...........Page 4 How do I turn on the heating or cooling cycles? . -
Page 4: How Do I Change The Time Of Day And Day Of The Week
110-1023E.qxd 11/18/04 10:50 AM Page 4 How do I change the time of day and day of the week? MONDAY 3:29 PM From the main screen press MENU. COOL 78.1 FAN AUTO SET AT OUTSIDE 24°F HOLD TEMP MENU MENU Use the UP or DOWN arrows to highlight DAY/TIME. -
Page 5: How Do I Turn On The Heating Or Cooling Cycles
110-1023E.qxd 11/18/04 10:50 AM Page 5 How do I turn on the heating or cooling cycles? MONDAY 3:29 PM From the main screen press MENU. COOL 78.1 FAN AUTO SET AT OUTSIDE 24°F MENU HOLD TEMP MENU PROGRAM Use the UP or DOWN arrows to highlight HEAT/COOL. Press SELECT. -
Page 6: How Do I Cycle The Fan
110-1023E.qxd 11/18/04 10:50 AM Page 6 How do I cycle the fan? MONDAY 3:29 PM COOL From the main screen press MENU. 78.1 FAN AUTO SET AT OUTSIDE 24°F MENU HOLD TEMP MENU Use the UP or DOWN buttons until FAN is highlighted. Press SELECT. PROGRAM HEAT / COOL DAY / TIME... -
Page 7: How Do I Temporarily Change The Temperature
110-1023E.qxd 11/18/04 10:50 AM Page 7 How do I temporarily change the temperature? MONDAY 3:29 PM COOL 78.1 From the main screen, press the UP or DOWN button. The screen FAN AUTO will change to the following. SET AT OUTSIDE 24°F HOLD TEMP MENU SET AT... -
Page 8: Can I Set A Temporary Adjustment For Longer Than 3 Hours
110-1023E.qxd 11/18/04 10:50 AM Page 8 Can I set a temporary adjustment for longer than 3 hours? MONDAY 3:29 PM COOL 78.1 FAN AUTO Yes you can! Press the HOLD TEMP button. The following screen appears. SET AT OUTSIDE 24°F HOLD TEMP MENU HOLD SETTINGS... -
Page 9: Can I Set The Thermostat To Hold One Temperature Indefinitely
110-1023E.qxd 11/18/04 10:50 AM Page 9 Can I set the thermostat to hold one temperature indefinitely? MONDAY 3:29 PM COOL You can do that too! From the main screen press the HOLD TEMP button. The following screen appears. 78.1 FAN AUTO SET AT OUTSIDE 24°F HOLD TEMP... -
Page 10: How Do I Set The Vacation Mode
110-1023E.qxd 11/18/04 10:50 AM Page 10 How do I set the Vacation Mode? MONDAY 3:29 PM Take a trip and don’t worry about the temperature! From the main screen press the HOLD TEMP COOL 78.1 button. The following screen appears. FAN AUTO SET AT OUTSIDE 24°F... -
Page 11: How Do I Program My Thermostat
110-1023E.qxd 11/18/04 10:50 AM Page 11 How do I program my thermostat? MONDAY 3:29 PM COOL 78.1 FAN AUTO From the main screen press the MENU button. SET AT OUTSIDE 24°F HOLD TEMP MENU MENU PROGRAM Use the UP or DOWN button to highlight PROGRAM. Press SELECT. HEAT / COOL DAY / TIME MORE... - Page 12 110-1023E.qxd 11/18/04 10:50 AM Page 12 How do I program my thermostat? (continued) MONDAY PROGRAM HEAT COOL WAKE 06:00AM The time for the first event should be highlighted. Use the UP or DOWN key to change the time. MORN 08:30AM Press SET TIME.
-
Page 13: How Do I Copy One Day's Program To Another Day
110-1023E.qxd 11/18/04 10:50 AM Page 13 How do I copy one day’s program to another day? MONDAY PROGRAM HEAT COOL MORN 08:30AM In the program screen, press the DOWN button until COPY is highlighted. 04:30PM NIGHT 10:30PM COPY MAIN MENU SELECT COPY MONDAY TO Use the UP or DOWN button to highlight the... -
Page 14: What Is An Event
110-1023E.qxd 11/18/04 10:50 AM Page 14 What is an event? An event is a programming period. This could be the period in the morning when you are preparing for work or school. It could be the period when no one is at home. It could be the period when the household is asleep at night. The time for an event is selected based on when you want the event to occur. -
Page 15: What Are The User Settings
110-1023E.qxd 11/18/04 10:50 AM Page 15 What are the USER settings? MONDAY 3:29 PM COOL The USER SETTINGS can change the way information is displayed on the thermostat and help 78.1 FAN AUTO to optimize comfort. It’s one way to truly personalize your new thermostat. SET AT OUTSIDE 24°F HOLD TEMP... -
Page 16: Detailed Information On The User Settings (Or What Do These User Settings Do?)
110-1023E.qxd 11/18/04 10:50 AM Page 16 Detailed Information on the USER SETTINGS (Or what do these USER SETTINGS do?) To select a USER SETTING, use the UP or DOWN button to highlight the desired setting. Press SELECT. TEMPERATURE TEMPERATURE: Fahrenheit or Celsius ˚F ˚C Temperature will be displayed in F or C. - Page 17 110-1023E.qxd 11/18/04 10:50 AM Page 17 More Detailed Information on the USER SETTINGS DIFFERENTIAL SETTINGS DIFFERENTIAL SETTING The temperature differential is your comfort level. A lower differential means your system may 1ST DIFF 1˚F cycle with greater frequency but will control closer to the setpoint temperature.The second stage 2ND DIFF 2˚F delay is a timed delay to indicate how much time should pass before the second stage is turned...
-
Page 18: When Would I Need To Change The User Settings
110-1023E.qxd 11/18/04 10:50 AM Page 18 More Detailed Information on the USER SETTINGS LANGUAGE SETTING This screen allows you to choose the displayed language; English, French, or Spanish. ENGLISH ˜ ESPANOL FRANÇAIS USER MENU SELECT SECURITY SETTINGS SECURITY In order to prevent tampering with the program and your desired settings, two levels of security ALLOW TEMPERATURE are available.The first will allow only temporary changes to the temperature. -
Page 19: What Are The Installer Settings
SELECT SELECT SYSTEM SETUP SYSTEM SETUP Choose the system component which the thermostat will control. FURNACE This screen appears only on models 9700i and 9701i. HEAT PUMP INSTALL MENU SELECT 1st STAGE HEATING 1ST STAGE HEATING The 9701i and the 9715i can have a gas/oil or electric first stage heating. - Page 20 110-1023E.qxd 11/18/04 10:50 AM Page 20 INSTALLER settings (continued) AUXILIARY HEAT AUXILIARY HEAT The 9720i can be set to use your 2H/2C heat pump internal auxiliary heating or to use an external add-on source. The add-on feature will be used most often when a single stage heat STANDARD - COMP.
- Page 21 110-1023E.qxd 11/18/04 10:50 AM Page 21 INSTALLER settings (continued) ENERGY EFFICIENT RECOVERY ENERGY EFFICIENT When turned on, the thermostat will look ahead two hours to determine when to turn on the RECOVERY heating/cooling system in order to reach the desired temperature at the desired time. DISABLE ENABLE USER MENU...
- Page 22 110-1023E.qxd 11/18/04 10:50 AM Page 22 INSTALLER settings (continued) CONTACT INFORMATION CONTACT INFORMATION This allows the servicing HVAC contractor to put their name and phone number into the thermostat to AIR EXPERTS remind you when service may be required. 1-555-555-1212 BACK EDIT SERVICE MONITOR MENU...
-
Page 23: When Would I Need To Change The Installer Settings
110-1023E.qxd 11/18/04 10:50 AM Page 23 When would I need to change the INSTALLER settings? NEVER! The INSTALLER SETTINGS are selected based on the type of equipment you have in your home. This feature should be set only by a certified HVAC technician. Changing these settings could result in higher energy costs and may even damage your equipment. -
Page 24: Where Should I Install A Remote Outdoor Sensor
110-1023E.qxd 11/18/04 10:50 AM Page 24 Where should I install a remote outdoor sensor? The remote outdoor sensor should be installed on the northern wall of your home, away from direct sunlight or other heat sources that may affect its sensitivity. Who should I call for additional help? For additional troubleshooting information, visit our web site at www.about-i-series.com. -
Page 25: My Energy Bills Are Too High. Is There Anything I Can Do
110-1023E.qxd 11/18/04 10:50 AM Page 25 My energy bills are too high. Is there anything I can do? While we can’t do anything about the high cost of energy, we can try to use less energy and thereby lower our heating and cooling costs. -
Page 26: When Should I Change The Batteries
When should I change the batteries? Only the model 9700i operates with batteries. The 9701i, 9715i and 9720i operate from power provided by your HVAC system. Generally the batteries will last 18-24 months. The thermostat will tell you when to change the batteries. A... - Page 27 110-1023E.qxd 11/18/04 10:50 AM Page 27 TWO YEAR LIMITED WARRANTY The manufacturer warrants to the original contractor installer or to the original consumer user, each new Robertshaw thermostat to be free from defects in materials and workmanship under normal use and service for a period of two (2) years from the date of purchase.
