Chapter 4 - MultiVOIP Software

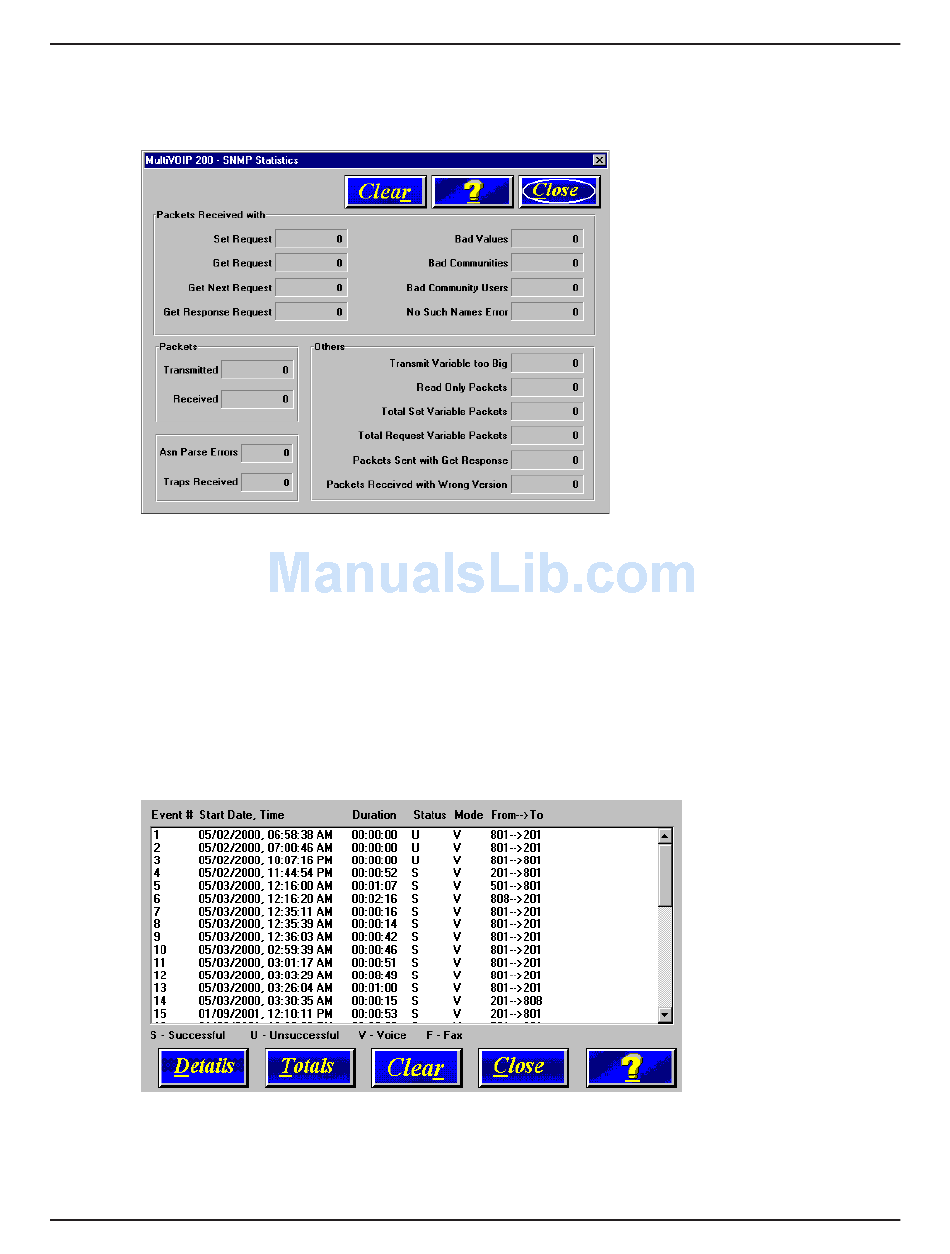

SNMP Statistics

The SNMP Statistics dialog box provides statistical information on Simple Network Management

Protocol (SNMP).

SNMP is an application layer protocol that facilitates the exchange of management information

between network devices. There are three key components in SNMP: the devices that are to be

managed, agents, and the network management systems. The managed device is the network

device, like a router. The agent is the software module residing in the managed device pertaining to

network management. The network management system runs the SNMP application that controls

the managed devices and monitors their status. Four primary operations (Set, Get, Get Next, and

Trap) are performed using SNMP.

The Log Entries dialog box displays a chronological history of all calls into and out of this unit. This

dialog box is accessed by clicking Logs in the Statistics dialog box.

The Log Entries dialog box displays each call as a sequentially numbered Event with the date, time,

duration of the call, the status of the call (Successful or Unsuccessful), Mode (Voice or Fax), and the

from and to numbers.
