NetVanta 1535P Hardware Installation Guide

RJ-45 Pinouts for ActivReach

The NetVanta 1535P has 24 10/100/1000Base-T Ethernet ports that support both standard and ADTRAN's

ActivReach Ethernet. The NetVanta 1535P supports standard 2-pair 10/100Base-T over CAT 5 and 4-pair

1000Base-T over CAT 5e. When in standard Ethernet mode, standard Ethernet pinouts apply.

When used in conjunction with the NetVanta ActivReach Media Converter (P/N 1702595G12), the NetVanta

1535P converts standard Ethernet to ActivReach Ethernet, which supports rates of 10/100 Mbps over 1-, 2-, and

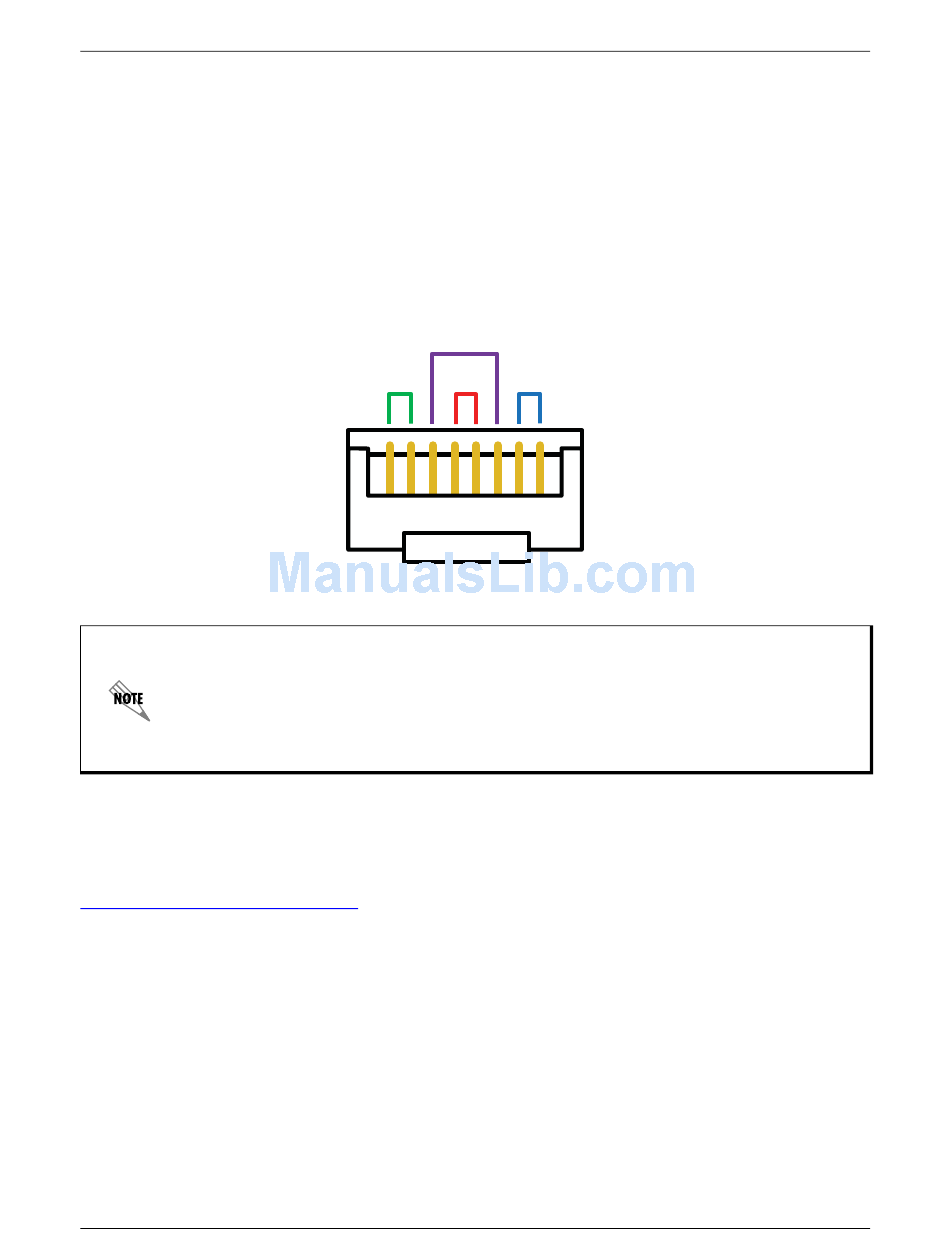

4-pair infrastructure wiring. The following diagram illustrates the pin connections for ActivReach applications.

The pinouts apply to both the switch port and the ActivReach Media Converter.

• For 1-pair ActivReach applications, pair A must be connected between the switch and

Media Converter. For NetVanta 1535P to NetVanta 1535P ActivReach connections, this

requirement does not exist.

• For 2-pair ActivReach applications, pair A must be connected, and either pairs B, C, or

D can be used in conjunction with pair A.

• Polarity inversion within a pair does not affect ActivReach performance.

For applications requiring connection into a single RJ-21, a hydra interconnect cable (P/N 1702595G14) can be

used. The hydra interconnect cable is suitable for 10 Mbps applications only. See

hydra cable's 50-pin Champ connector pinouts.

For more information and help installing your NetVanta ActivReach product, go to

http://www.adtran.com/activreach-help.

The NetVanta 1535P, units come equipped with an auto-sensing 100 to 250 VAC, 50/60 Hz power supply for

connecting to a properly grounded power receptacle. All necessary power cords are shipped with the units. To

power these units, connect the power cable to an appropriate AC power source.

61702595G10-34C

Table A-4 on page 41
