NetVanta 1535P Hardware Installation Guide
Power over Ethernet
The NetVanta 1535P provides the ability to detect attached powered devices (PDs) and deliver power to the PD
via existing Ethernet cabling. The NetVanta 1535P is fully compliant with the IEEE 802.3af PoE standard. By
default, the PoE switches discover and provide power to IEEE-compliant PDs.
ADTRAN's ActivReach Ethernet supports Power over Ethernet (PoE) over a single pair. When used in
conjunction with the NetVanta ActivReach Media Converter (P/N 1702595G12), power can be either
terminated at the Media Converter or supplied to a downstream device.
NetVanta 1535P Shipping Contents
Each NetVanta 1535P unit is shipped in its own cardboard shipping carton. Open each carton carefully, and
avoid deep penetration into the carton with sharp objects.
After unpacking the unit, inspect it for possible shipping damage. If the equipment has been damaged in transit,
immediately file a claim with the carrier and contact ADTRAN Customer Service (refer to the
the ADTRAN website at http://www.adtran.com/support).
Domestic shipments of the NetVanta 1535P includes the following items:
•
NetVanta 1535P base unit
•
A detachable power cable with a grounded, three-prong plug
•
Quick start guide
•
Two 19-inch rack mounting brackets with four mounting screws
International shipments of the NetVanta 1535P includes the following items:
•
NetVanta 1535P base unit
•
All necessary power cords
•
Quick start guide
•
Two 19-inch rack mounting brackets with four mounting screws
NetVanta 1535P Front Panel Design
The NetVanta 1535P front panel is shown below.
Appendix A on page 39
shows the connector pinouts.
STAT
RPS
EPS
LINK/ACT
PoE
VCID
NetVanta 1535P
Front Panel Features
Status LED
The STAT LED is located on the left side of the unit and indicates the unit's status.
Redundant Power Supply LED
The RPS LED is located on the left side of the unit and indicates when the unit is receiving power
from the RPS.
61702595G10-34C
Table 1 on page 18
1
2
3
4
5
6
7

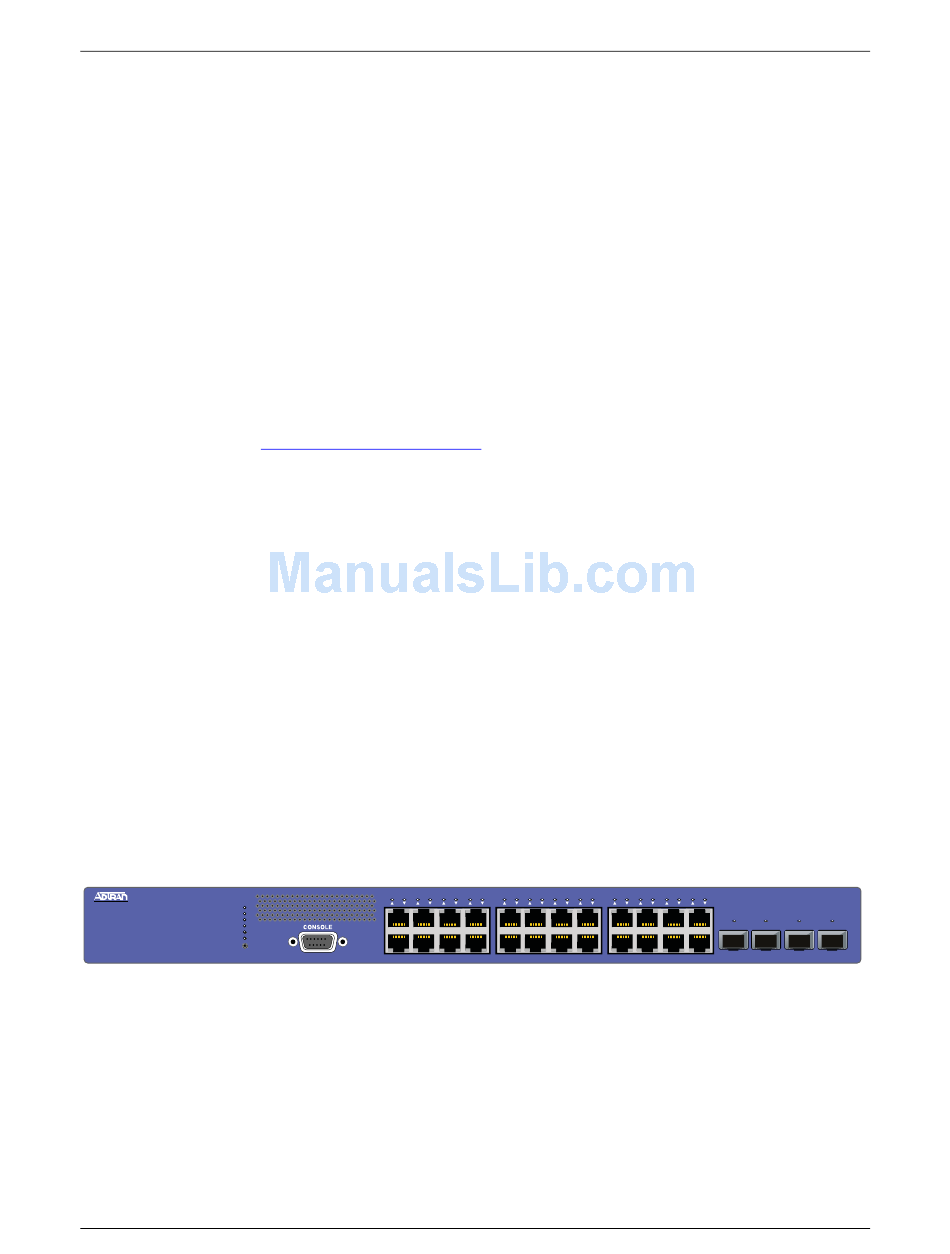

Figure 1. NetVanta 1535P Front Panel Layout
Copyright © 2013 ADTRAN, Inc.
describes all of the LEDs, and
8
9
10
11
12
13
14
15
16
17
18
19
20
Physical Descriptions
Support
page on
ActivReach
21
22
23
24
25
26
27
28
15
