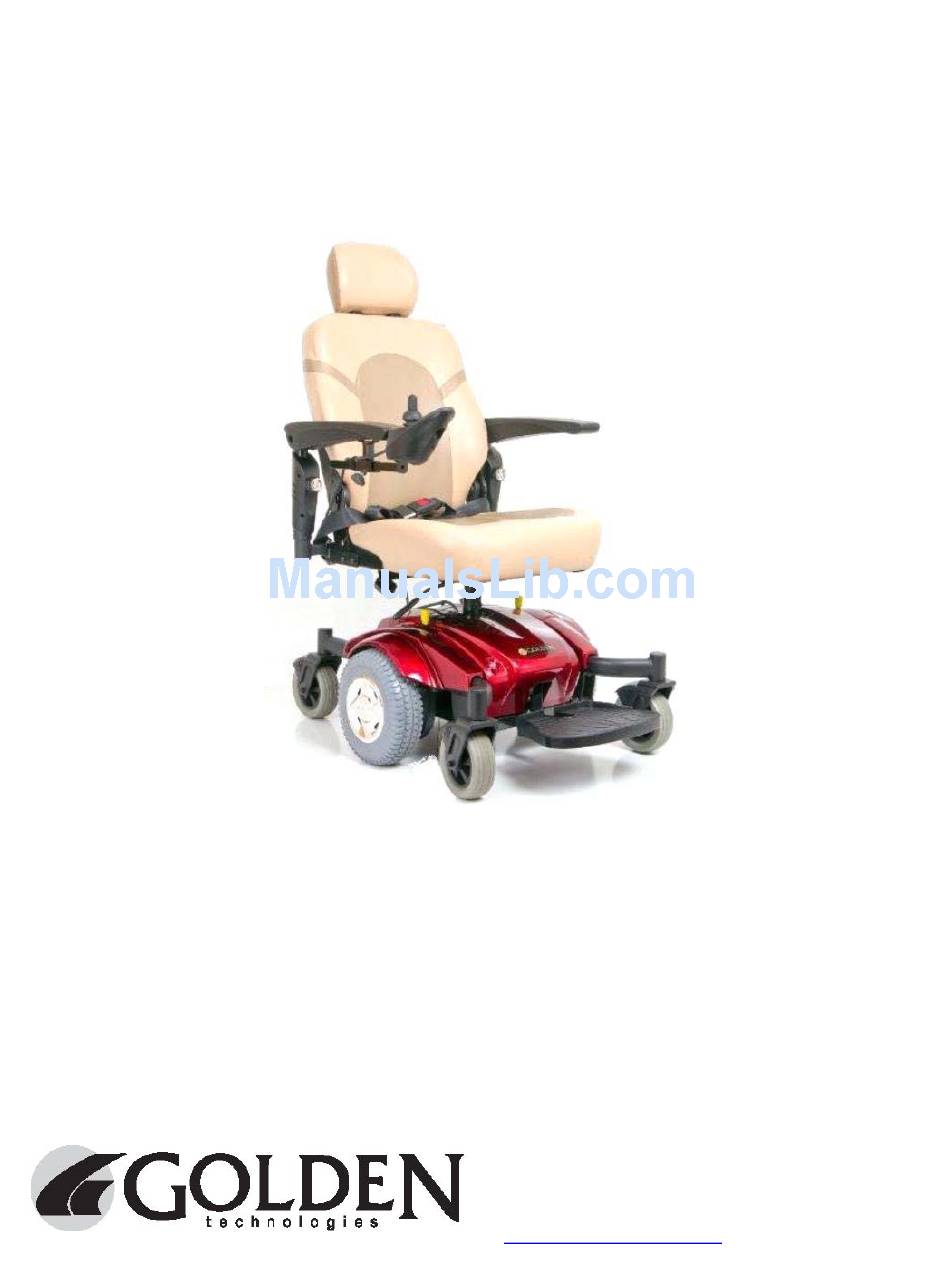

- Page 1 Compass Sport ™ Owner’s Manual Compass Sport ™ Center-Wheel Drive Power Chair GP605 SS/GP605 CC 401 Bridge Street, Old Forge PA 18518 Tel: (800) 624-6374 Fax: (800) 628-5165 www.goldentech.com Y O U R L I F E M O T I O N...
- Page 2 Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10...
- Page 3 Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10 FOR YOUR RECORDS Please fill in your Compass Sport ™ information below. This information will be useful in the event that you ever need to contact Golden Technolo- gies, Inc.
-
Page 4: Table Of Contents
Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10 CONTENTS INTRODUCTION …………………………………………………… SAFETY..............……….. 5-8 EMI/RFI ............…….…….. 9 SPECIFICATIONS…………………………………………………… 10 ASSEMBLY/DISASSEMBLY……………………………………… 11-16 COMFORT SETTINGS…………………………………………….. 17-21 OPERATION/DIAGNOSTICS ……………………………………. 22-27 BATTERY CHARGING ……………………………………………. 28 CARE AND MAINTENANCE …………………………………….. 29 WARRANTY………………………………………………………….. -
Page 5: Introduction
™ design that is also highly functional in today’s world. We at Golden Technologies, Inc. know that you have chosen a power chair that will give you years of dependable operation and also will enhance the quality of your life by providing you with the mobility to experience an active daily lifestyle. -
Page 6: Safety
Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10 SAFETY Your Compass Sport is a battery-operated personal mobility vehicle. Please exercise ™ caution and consideration when you are operating it. Driving your Compass Sport ™ carefully and thoughtfully will help ensure your personal safety and the safety of other people. - Page 7 Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10 SAFETY DRIVING ON AN INCLINE Drive with caution when attempting to negotiate any incline, even handicap access ramps. Always climb or descend a gradient by driving straight up or straight down the face ...
- Page 8 Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10 SAFETY Do not attempt to use your Compass Sport on an escalator. Always use an ™ elevator. Do not carry passengers on your power chair. ...
- Page 9 Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10 SAFETY Please be sure to follow this important warning when transferring onto or off of the Golden Compass Sport power wheelchair: NEVER TRANSFER ON OR OFF OF THIS POWER WHEELCHAIR USING THE SEAT BACKREST FOR SUPPORT DURING TRANSFER.
-
Page 10: Emi/Rfi
Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10 EMI/RFI The rapid development of electronics, especially in the area of communications, has saturated our environment with electromagnetic (radio) waves that are emitted by television transmitters, cellular phones, citizen’s band radios (CBs), amateur radios (ham radios), wireless computer links, microwave transmitters, paging transmitters, etc. -
Page 11: Specifications
Charger - Off Board 3/1.5A 3/1.5A Output Output 24 VDC/3A 24 VDC/3A Battery Types (recommended) (2) U1 (2) U1 Shroud Colors (all models) Red and Blue Note: Golden Technologies reserves the right to alter or change any specification without prior notice. -
Page 12: Assembly/Disassembly
Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10 ASSEMBLY/DISASSEMBLY Your Compass Sport is shipped partially disassembled in order to maximize the ™ protection of all its parts during the shipping process. Please follow the instruction below to quickly and easily assemble the power chair for your use. - Page 13 Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10 ASSEMBLY / DISASSEMBLY SEAT INSTALLATION/REMOVAL Note: The seat assembly weighs about 46 pounds. Please ask for help if you do not feel capable of safely lifting that much weight. Removal of arms will significantly reduce the weight of seat.
- Page 14 Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10 ASSEMBLY / DISASSEMBLY Front Seat Lock Handle Backrest Angle Adjustment Lever Figure 1 Figure 2 Seat Post Receiver Seat Post Stinger Figure 3 Figure 4 Battery Box...
- Page 15 Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10 ASSEMBLY / DISASSEMBLY JOYSTICK INSTALLATION 1. Position the joystick on the joystick bracket. Match the holes in the joystick with the holes in the bracket. See figure 5.
-
Page 16: Accessing The Batteries
Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10 ASSEMBLY / DISASSEMBLY Accessing the batteries After removing the seat, locate the (2) “Battery Box Covers”, on front and rear. Remove one of the covers by lifting up on the outer edge of the cover. -
Page 17: Assembly/Disassembly
Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10 ASSEMBLY/ DISASSEMBLY BATTERY INSTALLATION Note: The batteries weigh 24 pounds each. (Battery weights may vary depending on the manufacturer). Please ask for help if you do not feel capable of safely lifting that much weight. -
Page 18: Comfort Settings
Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10 COMFORT SETTINGS You may be spending a great deal of time on your Compass Sport . To provide you with ™ the maximum seating comfort, Golden Technologies, Inc. has designed this power chair to incorporate the following adjustments for operator comfort. - Page 19 Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10 COMFORT SETTINGS HEADREST HEIGHT ADJUSTMENT 1. Standing behind the chair, push and then release the clamp on the left post of the headrest while you are pulling up or pushing down on the head rest. See figure 10.
- Page 20 Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10 COMFORT SETTINGS FOOTREST ANGLE ADJUSTMENT 1. Fold the footrest upward for easy access to the angle adjustment bolt. See figure 12 2. Turn the jam nut counter-clockwise with a 17mm wrench to loosen.
- Page 21 Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10 COMFORT SETTINGS EXTENDING THE FOOTREST Refer to the pictures below. 1. Insert a 5mm Allen wrench from the top side into the (2) adjustment screws. 2. Place a 10mm wrench on the backside onto the (2) nuts and loosen the (2) footrest adjustment screws.
-
Page 22: Comfort Settings
Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10 COMFORT SETTINGS Joystick Holder Joystick Bracket Figure 14 Joystick Position Figure 15 Adjustment Knob Armrest Width Adjustment Knobs Figure 16 ARMREST HEIGHT ADJUSTMENT 1. Loosen “Armrest Height Adjustment Knob” until you can pull it outward. - Page 23 Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10 OPERATION Your Compass Sport is simple to operate. However, for your safety and the safety of ™ others, Golden Technologies, Inc. recommends that you carefully read and understand the following operating instructions.
- Page 24 Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10 OPERATION The Speed Control Buttons These buttons provide you with a way to control the maximum speed of your Compass Sport ™ ♦ Press the “turtle” button repeatedly to set your chair’s speed to the slowest setting (recommended for indoor operation).
- Page 25 Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10 OPERATION The Joystick Display The joystick display (see figure 17 on page 22) is a multifunctional visual display. This display provides three types of information. 1. On/Off status 2.
-
Page 26: Operation/Diagnostics
Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10 OPERATION/DIAGNOSTICS For Compass Sport Units with the SHARK Controller Flash codes indicate the nature of an abnormal condition directly from the SHARK LED. Without the use of any servicing tools, the condition can be simply diagnosed. - Page 27 Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10 OPERATION Freewheel Lever Freewheel Lever Figure 18 FREEWHEEL MODE ♦ To disengage the gears and put your power chair in freewheel mode, pull the freewheel levers forward towards the front of your chair. See figure 18.
- Page 28 Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10 OPERATION Reset Button (circuit breaker) Figure 19 Reset Button If the main circuit breaker trips, please wait for approximately 1 minute and then push the reset button to reset the main circuit breaker. See figure 19.
-
Page 29: Battery Charging
Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10 BATTERY CHARGING You must use only the charger that is supplied with your Compass Sport . The use of any other charger on this power chair will void the ™... -
Page 30: Care And Maintenance
Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10 CARE AND MAINTENANCE Your Compass Sport is designed to require minimal maintenance. We recommend that ™ you periodically check the following: Tire Tread: Regularly visually inspect the tire tread. If the remaining tread is less than 1/32 of an inch, have your local Golden representative replace the worn tires. - Page 31 Compass Sport GP605 Limited Lifetime Warranty: In the event of defective materials or workmanship, Golden Technologies will repair or replace at our option any of the following structural frame components found to be defective by an authorized Golden Technologies representative: ...
- Page 32 For the period of one year from the date of purchase, in the event of defective materials or workmanship, Golden Technologies will repair or replace at our option any of the following parts found to be defective by an authorized Golden Technologies representative: ...
-
Page 33: Warranty
Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10 Compass Sport GOLDEN ™ Warranty Registration Please type or print. Serial # ___________________________________ Date Purchased ______________ Owner Name ______________________________________________________________ Address __________________________________________________________________ City _________________________________________ State ______ Zip ___________... - Page 34 Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10...
- Page 35 Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10...
- Page 36 Compass Sport Owner’s Manual – Model # GP605 SS, GP605 CC Revised 11/12/10 401 Bridge Street, Old Forge PA 18518 Tel: (800) 624-6374 Fax: (800) 628-5165 www.goldentech.com Y O U R L I F E M O T I O N...
