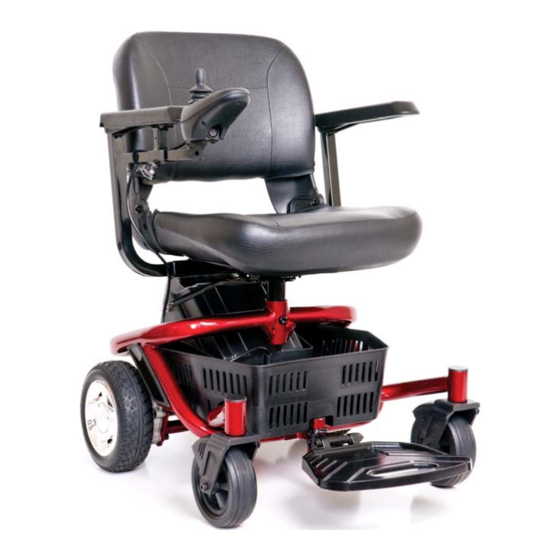

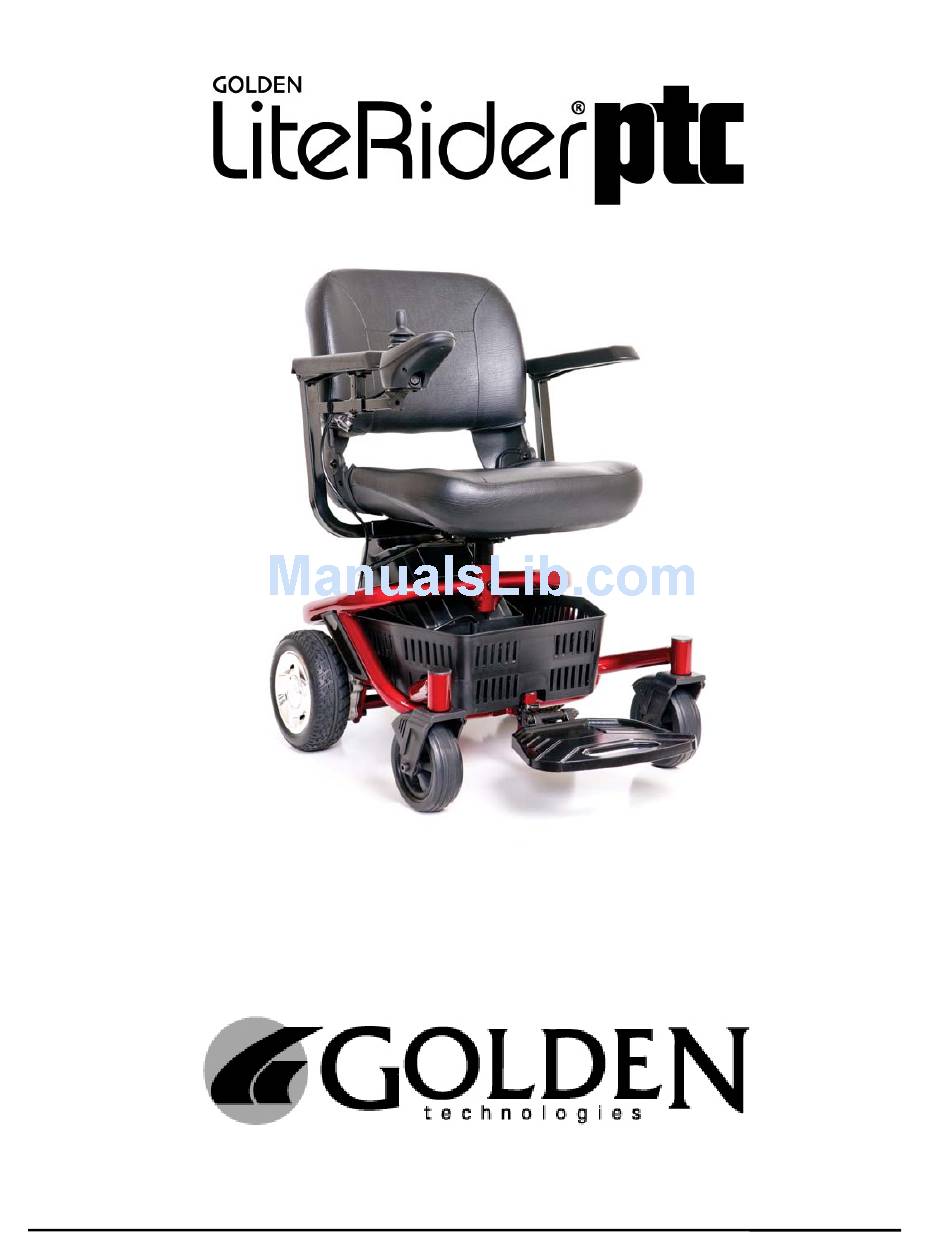

- Page 1 Rear Wheel Drive Power Chair Model GP160 Y O U R L I F E I N M O T I O N Golden Technologies - 401 Bridge Street - Old Forge, PA 18518 - Tel: 800-624-6374 - Fax: 800-628-5165 - www.goldentech.com...
- Page 2 LiteRider PTC_Owner’s Manual Rev A_121911 ...
- Page 3 We ask that you read this manual completely before operating your new LiteRider PTC. Golden Technologies, Inc. is not and cannot be held responsible for any damage or injury incurred due to improper or unsafe use of the Golden LiteRider PTC. Golden Technologies, Inc.
-
Page 4: Table Of Contents
V. Disassembly and Battery Replacement…………………………………………………... 16 VI. Comfort Settings……………………………………………………………………………… 17-20 VII. Operation/Diagnostics/Troubleshooting………………………………………………. 21-28 VIII. Battery Charging……………………………………………………………………………. 29-30 IX. Care and Maintenance of your GP160….…………………………………………………. 31 X. Riding Your LiteRider PTC.………………………………………………………………….. 32-33 XI. Technical Specifications GP160…………………………………………………………… 34-35 XII. Warranty……………………………………………………………………………………..36-37 Warranty/Registration Card……………………………………………………………………… 38... -
Page 5: Introduction
LiteRider PTC, combines cutting edge technology with attractive designs that are also highly functional in today’s world. We at Golden Technologies, Inc. know that you have chosen a power chair that will give you years of dependable operation and also will enhance the quality of your life by providing you with the mobility to experience an active daily lifestyle. - Page 6 FOR YOUR RECORDS Please fill in your LiteRider PTC information below. This information will be useful in the event that you ever need to contact Golden Technologies, Inc. concerning your power chair. Your LiteRider PTC Model ____________________ Serial Number _____________________________...
-
Page 7: Safety
Note: Before learning to operate your LiteRider PTC, have your Golden Technologies, Inc. representative determine if it is advisable for you to practice getting on and off your power chair and operating it in the presence of an attendant. - Page 8 LiteRider PTC_Owner’s Manual Rev A_121911 II. SAFETY DRIVING ON AN INCLINE • Drive with caution when attempting to negotiate any incline, even handicap access ramps. • Always climb or descend a gradient by driving straight up or straight down the face of the slope.
- Page 9 LiteRider PTC_Owner’s Manual Rev A_121911 II. SAFETY SAFETY RULES • Do not attempt to use your LiteRider PTC on an escalator. Always use an elevator. • Do not carry passengers on your power chair. • Do not operate your LiteRider PTC, if it is not functioning properly. •...
- Page 10 MAY FOLD DOWN AND MAY CAUSE YOU TO LOSE YOUR BALANCE AND COULD RESULT IN PERSONAL INJURY. Do not modify your power chair in any way that is not authorized by Golden Technologies, Inc. DO NOT CONNECT OR ALLOW ANYONE EXCEPT AN AUTHORIZED ...
-
Page 11: Emi/Rfi
• If unintended movement or brake release occurs, turn your power chair off as soon as it is safe to do so. • Report all incidents of unintended movement or brake failure to your Golden Technologies representative or to Golden Technologies. -
Page 12: Assembly Of Your Gp160
NOTE: You will need only basic tools. If you do not have the required tools, or if you do not feel capable of safely assembling your power chair, please contact your local Golden Technologies, Inc. representative. Main Components 1. Base with Under-the-Seat Basket 2. - Page 13 LiteRider PTC_Owner’s Manual Rev A_121911 IV. ASSEMBLY Before operating or assembling your LiteRider PTC, be sure to remove the battery deactivate strip and connect the joystick cable to the VR2 controller. Your LiteRider PTC will not power up or operate without completing these steps. 1.
- Page 14 LiteRider PTC_Owner’s Manual Rev A_121911 IV. ASSEMBLY Seat Installation 1. Fold the seat back down 2. Grasp the seat firmly on each side, lift the seat and align the seat pin with the hole in the seat post receiver. See figure 4. Figure 4 3.
- Page 15 LiteRider PTC_Owner’s Manual Rev A_121911 IV. ASSEMBLY Arm Installation 1. Loosen the arm width adjustment screw from the arm receiver tube at the bottom rear of the seat frame with a 4mm Allen wrench. See figure 5. 2. Insert the arm into the arm receiver tube, so that the arm pad faces toward the front of the unit.
- Page 16 LiteRider PTC_Owner’s Manual Rev A_121911 IV. ASSEMBLY Joystick Installation 1. Loosen the joystick bracket adjustment screw located under the armrest. See figure 6. 2. Insert the joystick mounting tube into the joystick bracket under the armrest. 3. Adjust the position of the joystick to a comfortable spot. 4.
-
Page 17: Disassembly And Battery Replacement
is NOT in freewheel mode before attempting to perform disassembly. Battery Replacement Should your batteries need replacement; please contact your Golden Technologies representative. Battery replacement requires disassembly of the battery pack and must be performed by a qualified technician. -
Page 18: Comfort Settings
You may be spending a great deal of time on your LiteRider PTC. To provide you with the maximum seating comfort, Golden Technologies, Inc. has designed this power chair to incorporate the following adjustments for operator comfort. COMFORT SETTINGS 1. -
Page 19: Armrest Angle Adjustment
LiteRider PTC_Owner’s Manual Rev A_121911 VI. COMFORT SETTINGS Arm Width Adjustment 1. Loosen the adjustment screw at the rear of the seat with a 4mm Allen wrench. See figure 9. 2. Slide the arm in or out to the desired width. 3. - Page 20 LiteRider PTC_Owner’s Manual Rev A_121911 VI. COMFORT SETTINGS Footrest Angle Adjustment 1. Fold the footrest upward for easy access to the angle adjustment bolt. See figure 11. 2. Turn the jam nut counter-clockwise with a 17mm wrench to loosen. 3. Use an 8mm Allen wrench to turn the adjustment bolt. Turn the adjustment bolt counter-clockwise to increase the footrest angle.
-
Page 21: Joystick Position
LiteRider PTC_Owner’s Manual Rev A_121911 VI. COMFORT SETTINGS Joystick Bracket Length Adjustment 1. Loosen the adjustment knob. See figure 13. 2. Slide the joystick holder in or out to the desired position. 3. Tighten the adjustment knob. Figure 13 Joystick Position 1. -
Page 22: Operation/Diagnostics/Troubleshooting
Your LiteRider PTC is simple to operate. However, for your safety and the safety of others, Golden Technologies, Inc. recommends that you carefully read and understand the following operating instructions. We also recommend that you practice operating your LiteRider PTC in an area free of any obstacles. Once you have gained confidence in your ability to control your power chair, you will more easily be able to operate it in normal daily conditions. - Page 23 LiteRider PTC_Owner’s Manual Rev A_121911 VII. OPERATION The Joystick The joystick (see figure 15 on page 24) controls the speed (up to the maximum limit set by the speed control buttons) and direction of your power chair. NOTE: When you are not pushing on the joystick, or when you release the joystick, the joystick will automatically return to the neutral position, the chair will decelerate, as the electromagnetic brakes are applied, and come to a smooth stop.
- Page 24 Note that joystick OONAPU (Out Of Neutral At Power Up) is not a fault. Simply by removing your hand from the joystick and allowing it to return to the neutral position, the fault will immediately clear. If the condition persists after removing your hand, the joystick may be damaged. Consult a Golden Technologies representative.
- Page 25 Switch on the control system again and try to drive the wheelchair. If the safety circuits operate again, switch off and do not try to use the wheelchair. Contact your Golden Technologies representative for service. Self-Help Guide If a system trip occurs, you can find out what has happened by counting the number of LEDs on the battery gauge that are flashing.
- Page 26 Below are a list of trouble-shooting actions. Try to use this list before you contact your Golden Technologies representative. Go to the number on the list which matches the number of flashing LEDs and follow the instructions. If the problem persists after you made the checks described, contact your Golden Technologies representative for further assistance.
- Page 27 If adjusting the speed setting does not remedy the problem, then there may be a non-hazardous fault. Contact your Golden Technologies representative. Maximum Speed/Profile Indicator This LED array shows the maximum speed setting for the power chair or, if the control system is programmed for drive profile operation, the selected drive profile.
- Page 28 VII. OPERATION Maximum Speed/Profile Indicator Flashes This indicates the speed of the wheelchair is being limited for safety reasons. Contact your Golden Technologies representative NOTE: The VR-2 modules are not user serviceable. Do not attempt to repair VR-2 modules. FREEWHEEL MODE ♦...
- Page 29 LiteRider PTC_Owner’s Manual Rev A_121911 VII. OPERATION THERMAL ROLLBACK Your LiteRider PTC is equipped with a safety system. A microprocessor monitors the operating temperatures of the controller. In the event of excessive heat occurring in the controller, the controller will decrease the speed of your chair. This is done to reduce the load on the electrical system and allow the components to dissipate heat.
-
Page 30: Battery Charging
LiteRider PTC_Owner’s Manual Rev A_121911 VIII. BATTERY CHARGING You must use only the charger that is supplied with your LiteRider PTC. The use of any other charger on this power chair will void the warranty. Using unauthorized chargers may also result in severe damage to the batteries and/or damage to the chair. - Page 31 LiteRider PTC_Owner’s Manual Rev A_121911 VIII. BATTERY CHARGING CHARGING THE BATTERIES Your LiteRider PTC’s charging system is designed for your safety and for your convenience. Follow the steps below to recharge the batteries. 1. Position your LiteRider PTC close to a standard wall electrical outlet. 2.
-
Page 32: Care And Maintenance Of Your Gp160
LiteRider PTC_Owner’s Manual Rev A_121911 IX. CARE AND MAINTENANCE ROUTINE MAINTENANCE The Golden LiteRider PTC is virtually maintenance free. All of the bearings are permanently lubricated and sealed. No additional lubrication is required. There are, however, several things that you can do to help keep up the appearance and maintain the performance of your power chair. -
Page 33: Riding Your Literider Ptc
LiteRider PTC_Owner’s Manual Rev A_121911 X. RIDING YOUR LiteRider PTC Control Through Tight Spots As you use your LiteRider PTC to increase your mobility, you will undoubtedly encounter some obstacles that will require practice to negotiate smoothly and safely. Below are some common obstacles that you may meet during the daily use of your power chair. - Page 34 LiteRider PTC_Owner’s Manual Rev A_121911 X. RIDING YOUR LiteRider PTC Ramps Because of the American Disabilities Act (ADA), many buildings are fitted with ramps that provide access for power chairs and for other mobility vehicles. Please read and thoroughly understand “Safety Rules” and “Driving On An Incline” sections of this manual.
-
Page 35: Technical Specifications Gp160
LiteRider PTC_Owner’s Manual Rev A_121911 XI. TECHNICAL SPECIFICATIONS Specification LiteRider PTC Model Number GP-160 Medicare Code Weight capacity 275 lbs. Drive Wheels Rear Maximum speed 3.5 mph Operating Range 9.5 miles Ground Clearance 2.5 in. Turning Radius 26 in. Type Batteries 2-18 AH Colors Freewheel Mode... - Page 36 1. Battery range will vary due to rider weight, drive surface, and terrain. 2. Electronics warranty excludes batteries. Literature is current at the time of printing. Golden Technologies reserves the right to make changes to the product or literature at any time.
-
Page 37: Warranty
Limited Lifetime Warranty: In the event of defective materials or workmanship, Golden Technologies will repair or replace at our option any of the following structural frame components found to be defective by an authorized Golden Technologies representative: ... - Page 38 Items not mentioned or listed are covered at the discretion of Golden Technologies. Any accessories, standard or optional, supplied by Golden Technologies, are covered for a period of one year from the date of purchase with the particular unit. Warranty Exclusions:...
-
Page 39: Warranty/Registration Card
LiteRider PTC_Owner’s Manual Rev A_121911 WARRANTY/REGISTRATION FORM Golden Technologies Product Registration Form Please fill out this product registration form or you can also register your product online at www.goldentech.com. Failure to register your product may result in significant delays should service be required. - Page 40 LiteRider PTC_Owner’s Manual Rev A_121911 Fold Here First Place Stamp Here Golden Technologies 401 Bridge St. Old Forge, PA 18518 Fold Here Second...
- Page 41 LiteRider PTC_Owner’s Manual Rev A_121911 ...
- Page 42 LiteRider PTC_Owner’s Manual Rev A_121911 Model GP160 Y O U R L I F E I N M O T I O N 401 Bridge Street Old Forge, PA 18518 Tel: 800-624-6374 Fax: 800-628-5166 www.goldentech.com...
