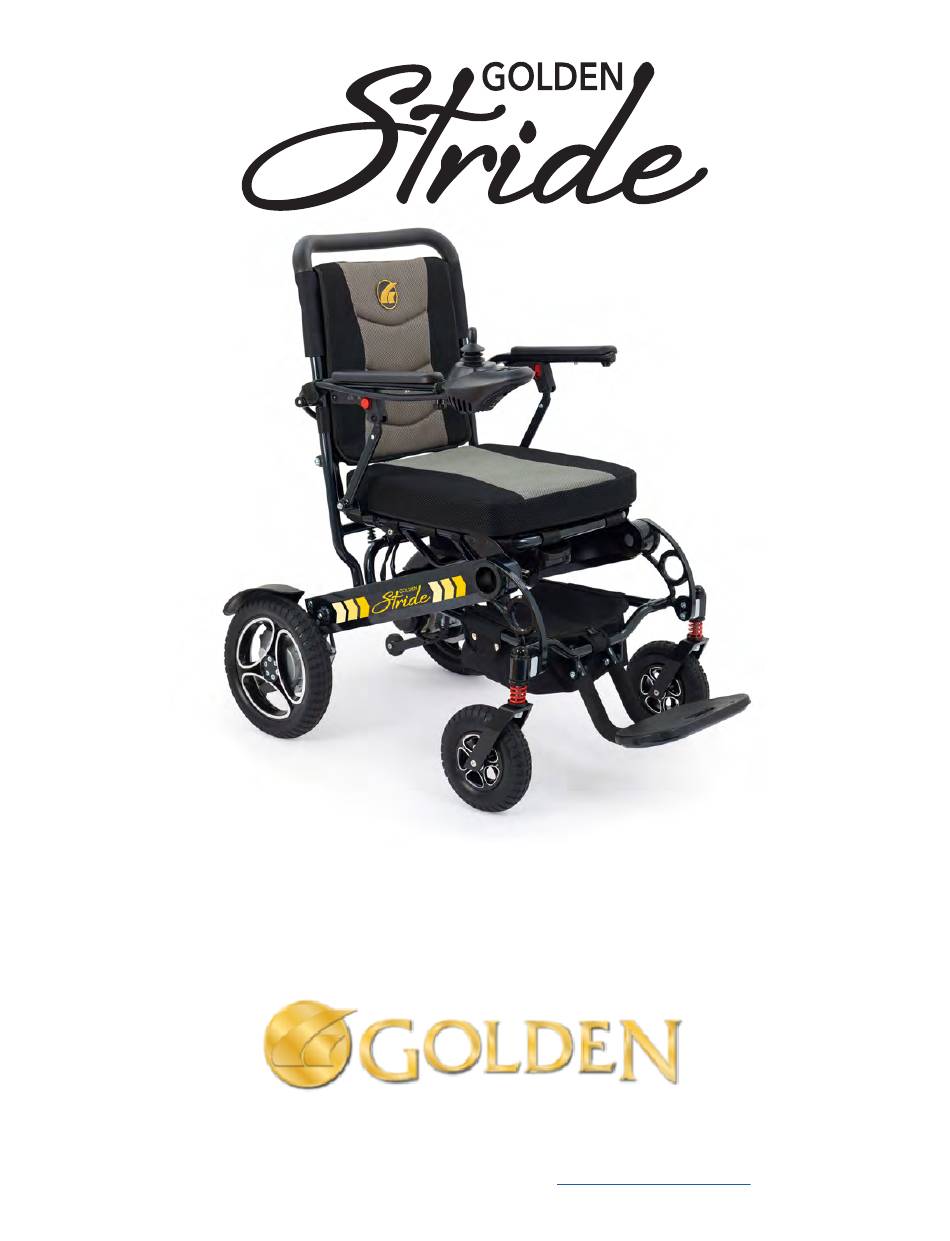

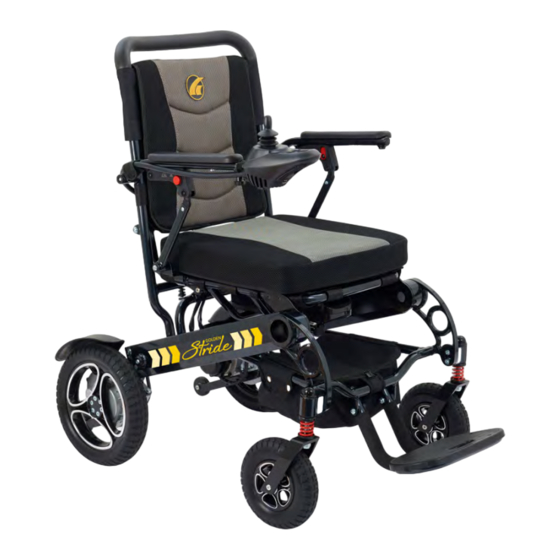

- Page 1 Owner’s Manual Rear Wheel Drive Power WheelChair Model GP301 Golden Technologies - 401 Bridge Street - Old Forge, PA 18518 Tel: 800-624-6374 - Fax: 800-628-5165 - www.goldentech.com LIT-GP301-OM_02.02.2023...
- Page 2 Thank you for purchasing your Stride . We are honored you have chosen Golden Technologies for your mobility needs. Stride (Model GP301) Standard Packing List: Power wheelchair with Under-the-Seat Pouch 1 Owner’s Manual 1 Battery Pack 1 Safety Flag 1 Joystick Control...
-
Page 3: Table Of Contents
Intended Use: The intended use of the power wheelchair is to provide Stride mobility to adults, limited to a sitting position and have the capability to operate a simple hand control. CONTENTS I. Introduction..……………..………………………..…………......… 4-5 II. Safety...………………………………..…..…………......……..….. 6-9 III. EMI/RFI..…………………………………………………......…...….. 10 IV. -
Page 4: Introduction
Inc. provider or call Golden Technologies, Inc. Technical Support Services at (800) 624-6374. Golden Technologies, Inc. cannot be held responsible for personal injury or property damage re- sulting from the unsafe or the improper use of any of our personal mobility products. Also, Golden Technologies, Inc. - Page 5 I. INTRODUCTION Accessories for the Stride A variety of accessories are available for your Golden Stride . Please contact your Authorized Gold- en Technologies Provider for more information or to order. • Cane Holder Tube • Crutch Holder • Safety Flag •...
-
Page 6: Safety
Read and follow the owner’s manual before operating your power chair. Before learning to operate your Stride , have your Golden Technologies, Inc. representative determine if it is advisable for you to practice getting on and off your power chair and operating it in the presence of an attendant. - Page 7 II. SAFETY DRIVING ON AN INCLINE • Drive with caution when attempting to negotiate any incline, even handicap access ramps. • Try to keep your Stride moving when climbing an incline. If you do come to a stop, restart and accelerate slowly and carefully.
- Page 8 • Never sit on your power chair when it is in freewheel mode and on an incline or decline. • Do not modify your power chair in any way that is not authorized by Golden Technologies, Inc. • Do not disassemble the tire. If disassembly is required, have your authorized Golden Technolo- gies provider perform any necessary maintenance or repair.
- Page 9 Do not modify your power chair in any way that is not authorized by Golden Technologies, Inc. Do not connect or allow anyone except an authorized Golden Technologies representative to connect any electrical or mechanical device to your Stride . Unauthorized acces- sories will void the warranty and may cause injury.
-
Page 10: Emi/Rfi
• If unintended movement or brake release occurs, turn your power chair off as soon as it is safe to do so. • Report all incidents of unintended movement or brake failure to your Golden Technologies repre- sentative or to Golden Technologies. -
Page 11: Technical Specifications Stride
IV. TECHNICAL SPECIFICATIONS Model Number GP301 Medicare Code None Weight Capacity 265 lbs. Drive Wheels Rear Maximum Speed 3.7 mph Operating Range 9.3 mi. Ground Clearance 1.6” Turning Radius 23.6” Type Batteries 24V 10AH Lithium-ion battery pack Colors Black Freewheel Mode Electronic Speed Control Electro-Mechanical Brakes Charger... -
Page 12: Main Components
Please follow the instructions below to quickly and easily assemble the power chair for your use. If you do not feel capable of safely assembling your power chair, please con- tact your local Golden Technologies, Inc. representative or retailer. - Page 13 VI. ASSEMBLY AND FOLDING YOUR Stride Before assembling your Stride , be sure to connect the battery harness located behind the battery pack.Your Stride will not power up or operate without completing this step. See figure 2. Figure 2 The Stride weighs approximately 55 pounds.
- Page 14 VI. ASSEMBLY AND FOLDING YOUR Stride 5. Press the latch for one of the anti-tip brackets, which are located at the inside of the rear wheels under the motors. Fully extend the ant-tip until it locks into place. See figure 6. Repeat step 5 for the opposite anti-tip.
-
Page 15: Operation
Read and follow the owner’s manual. Your Stride is simple to operate. However, for your safety and the safety of others, Golden Technologies, Inc. recommends that you carefully read and understand the following operating instructions. We also rec- ommend that you practice operating your Stride in an area free of any obstacles. -
Page 16: Battery Pack And Charging
VII. OPERATION BATTERY PACK AND CHARGING Battery maintenance is the most important part of maintaining your power wheelchair. Keeping the battery pack fully charged helps to extend battery life. Use the following guidelines to help keep your battery pack in optimum condition. IMPORTANT! Fully charge the battery pack prior to its initial use. -
Page 17: Riding Your Stride Tm
VII. OPERATION Failure to align and/or insert the plug in the correct orientation may damage the controller and render your power wheelchair non-operational. 4. Insert the plug at the other end of the charger power cord into a standard electrical wall outlet. - Page 18 VII. OPERATION 4. Unfasten the seat belt (if not already unfastened) to clear the seating surface. 5. While standing next to the power wheelchair, press the RED release button under the corresponding arm and lift the arm up and out of your way. See figure 13.
-
Page 19: Control Through Tight Spots
VII. OPERATION CONTROL THROUGH TIGHT SPOTS As you use your Stride to increase your mobility, you will undoubtedly encounter some obstacles that will require practice to negotiate smoothly and safely. Below are some common obstacles that you may meet during the daily use of your power wheelchair. Listed with those obstacles are some driving tips that should help you conquer those obstacles. -
Page 20: Fault Diagnosis And Troubleshooting
VIII. FAULT DIAGNOSIS AND TROUBLESHOOTING For your convenience, the Stride has an automatic fault warning system. If, when powered up, there is a fault with the system, then a corresponding alarm will be sounded by the horn. The horn will beep twice signaling a fault has occurred, followed by the number of beeps indicating the type of fault. -
Page 21: Care And Maintenance
IX. CARE AND MAINTENANCE ROUTINE MAINTENANCE Your power wheelchair requires a minimal amount of care and maintenance. If you do not feel con- fident in your ability to perform the maintenance listed below, you can schedule an inspection and maintenance with your retailer. •... - Page 22 IX. CARE AND MAINTENANCE Water, Rain, Sleet, and Snow Water, in any form, will cause electronic malfunction or corrosion of the electrical components, con- nections, and the chair frame. Temperature Temperature can adversely affect the components and performance of your power wheelchair.
- Page 23 Five-Year Limited Warranty: For the period of five years from the date of purchase, in the event of defective materials or workmanship, Golden Technologies will repair or replace at our option any of the following structural frame components found to be defective by an authorized Golden Technologies representative: •...
-
Page 24: Warranty
Items not mentioned or listed are covered at the discretion of Golden Technologies. Any accessories, standard or optional, supplied by Golden Technologies, are covered for a period of one year from the date of purchase with the particular unit. Warranty Exclusions:... -
Page 25: Warranty/Registration Card
SAVE TIME! Register your product Online. Visit goldentech.com or scan this QR code! - Page 26 Fold Here First Place Stamp Here Golden Technologies 401 Bridge Street Old Forge, PA 18518 Fold Here Second...
- Page 28 Model GP301 401 Bridge Street Old Forge, PA 18518 Tel: 800-624-6374 Fax: 800-628-5165 www.goldentech.com...
