Summary of Contents for Zanussi ZKT 630 D

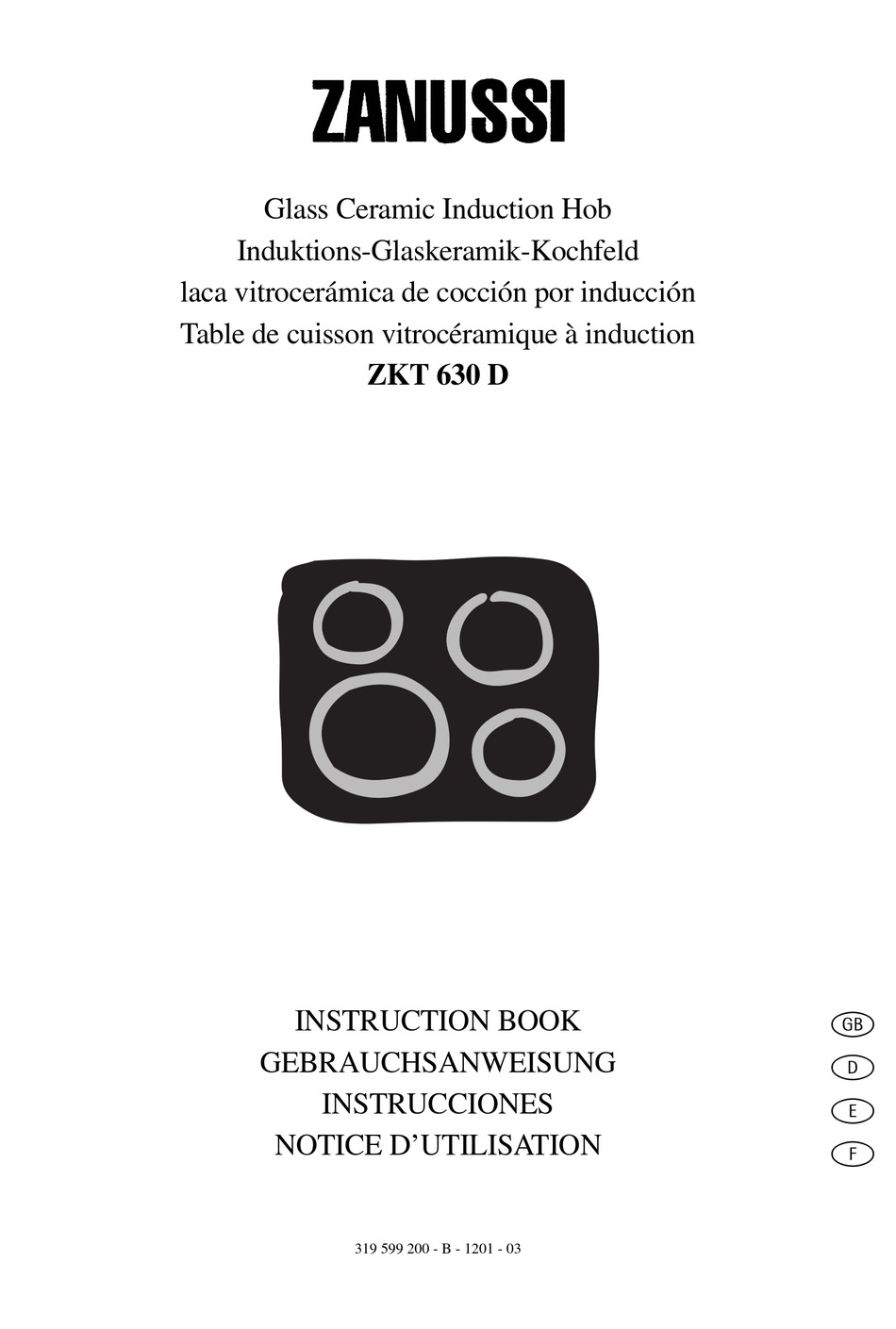

- Page 1 Glass Ceramic Induction Hob Induktions-Glaskeramik-Kochfeld laca vitrocerámica de cocción por inducción Table de cuisson vitrocéramique à induction ZKT 630 D INSTRUCTION BOOK GEBRAUCHSANWEISUNG INSTRUCCIONES NOTICE D’UTILISATION 319 599 200 - B - 1201 - 03...
-
Page 2: Dear Customer
The instructions on use contain information on deal- ing with problems yourself if any faults occur - see the section "What to do if". If these instructions are insufficient, please contact your local Zanussi Service Force Centre. Please refer to the section Service. -
Page 3: Table Of Contents
Contents Operating Instructions ..............4 Safety . -
Page 4: Operating Instructions
• Scientific investigations have shown that an influ- of the following safety information. ence on or endangering of patients with implan- ted heart pace makers by Zanussi induction Electrical Safety cooking zones are normally not to be expected. The distance between the trunk and the cooking •... -
Page 5: Disposal
How to avoid damaging your • Make sure that no acidic liquids, e.g. vinegar, lemon or descaling agents are spilt onto the appliance frame of the cooking surface, since these cause • Do not use the cooking surface as a work surface matte spots. -
Page 6: Appliance Description
Appliance Description Function and the Way the Induction hardly warms up. It only receives the reflected heat from the pan base. Cooking Zone Works Note: A copper wire induction coil is beneath the glass ceramic cooking surface. This generates electroma- If there is no pot or pan on the cooking zone there is gnetic fields, which act directly on the base of the no energy transfer (heating up) and thereby absolute... -
Page 7: Control Panel
Control panel Displays of the cooking zones Heat Setting controller + ITimer display Locking key Locking indicator lamp Indicator lamp for timer cooking zone selection Power/ double ring coo- king zone activation Timer Cooking zone selection Heat Setting regula- “On/Off” sensor tor - The Digital Displays The Power function supplies extra-high hea-... -
Page 8: Suitable Kitchenware For Induction Cooking Zones
Suitable Kitchenware for Induction Cooking Zones Pots and Pans Automatic Pan Sensing The induction cooking zone does not function when • In principle all pots and pans with magnetic bases unsuitable pans are used. are suitable. These are steel, steel-enamel as well If the cooking zone is switched on without a suitable as cast-iron pots and pans. -
Page 9: Pots And Pans For Rapid-Glowing Standard Cooking Zones
Pots and pans for rapid-glowing standard cooking zones pans for rapid-glowing standard cooking zones Energy saving tips • On principle all pots and pans with level bases are suitable for radiant heat cooking zones. You can recognise good quality pans by the base of •... -
Page 10: Using The Cooking Zones
Using the Cooking Zones TOUCH CONTROL Sensor Field If all cooking zones are switched off, the appliance switches off automatically after a To operate the TOUCH CONTROL sensor field, place period of time. you finger from above and flat onto the required field until the corresponding indicator lamp lights up or Cooking Zone Selection goes out, or until the required function is carried out. -
Page 11: Cooking Without The Automatic Heating-Up Function
Cooking without the Automatic Heating-Up Function When cooking with the induction cooking zone you should take into account that 1. For heating up/browning, select a high power. – the heating-up times are reduced by the direct 2. As soon as steam forms or the fat is hot, switch energy transfer to the pan! back to the required continued cooking stage. -
Page 12: Switching The Double Ring Cooking Zone On And Off
Switching the Double ring cooking Timer zone On and Off A cooking time can be set with the integrated timer for all 4 cooking zones. When the end of the cooking 1. Select the corresponding cooking zone. time is reached, the cooking zone switches itself off automatically. -
Page 13: Locking/Unlocking The Control Panel
Use the Timer as a Short Time Mea- surer (“Minute Minder”) The Timer function can also be used as a short time measurer without the automatic switch-off function, provided that the timer is not already being used for 1 or more coo- king zones. -
Page 14: Usage, Tables, Tips
Usage, Tables, Tips bles, Tips Tips on Cooking with or without the Automatic Feature We recommend the automatic heating up they reach the right degree of browning and are then cooked until done. feature for: • Dumplings, pasta dishes cooked in a great deal •... -
Page 15: Application Examples For The Automatic Heating-Up Feature
Application Examples for the Auto- matic Heating-Up Feature Cooking pro- Switch set- Application examples Duration Notes/tips cesses ting Heavy per pan Steaks A7 to A8 Turn occasionally browning 8 - 20 min. Schnitzel Rissoles per pan Roasting A6 to A7 Turn occasionally Fried eggs 10 - 20 min. -
Page 16: Problem Dirt
„Collo-Profi“ or „Cerafix“. You can obtain suitable cleaning and caring agents as well as glass scrapers from the Zanussi customer service. What to do if ..the letter f in the digital display ... j appears in the digital display? of the induction cooking zones flas- –... -
Page 17: Installation Instructions
INSTALLATION INSTRUCTIONS • Flush-mounted units may only be operated follo- wing installation in suitable installation cabinets Attention! and workplaces which conform to the relevant standards. This ensures sufficient protection • The new unit may only be installed and connec- against contact for electrical units as required by ted by an approved specialist. -
Page 18: Safety Instructions For The Installer
Safety Instructions for the Installer • A fixture must be provided in the electrical instal- lation which allows the appliance to be discon- nected from the mains at all poles with a contact opening width of at least 3 millimetres. Suitable isolation devices include, e.g. -
Page 19: Electrical Connection
Only the supply lead fitted on the recess may be used for connecting the unit. Replacement cables can only be obtained from Zanussi customer service. A fixture must be provided in the electrical installa- tion which allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3 millimetres. -
Page 20: Guarantee Conditions
GUARANTEE CONDITIONS Standard guarantee conditions European Guarantee We, Zanussi, undertake that if, within 24 months of If you should move to another country within Europe the date of the purchase, this Zanussi appliance or then your guarantee moves with you to your new... -
Page 21: Service & Spare Parts
For general enquiries regarding your Zanussi appli- Zanussi Service Force Centre by telephoning: ance, or for further information on Zanussi products, please contact our Customer Care department. 08705 929 929 Your call will be automatically routed to the Service Zanussi Force Centre covering your post code area. -
Page 22: Installation
Installation/Montage/Montaje/Montering/Asennus Asennus Montasje...
