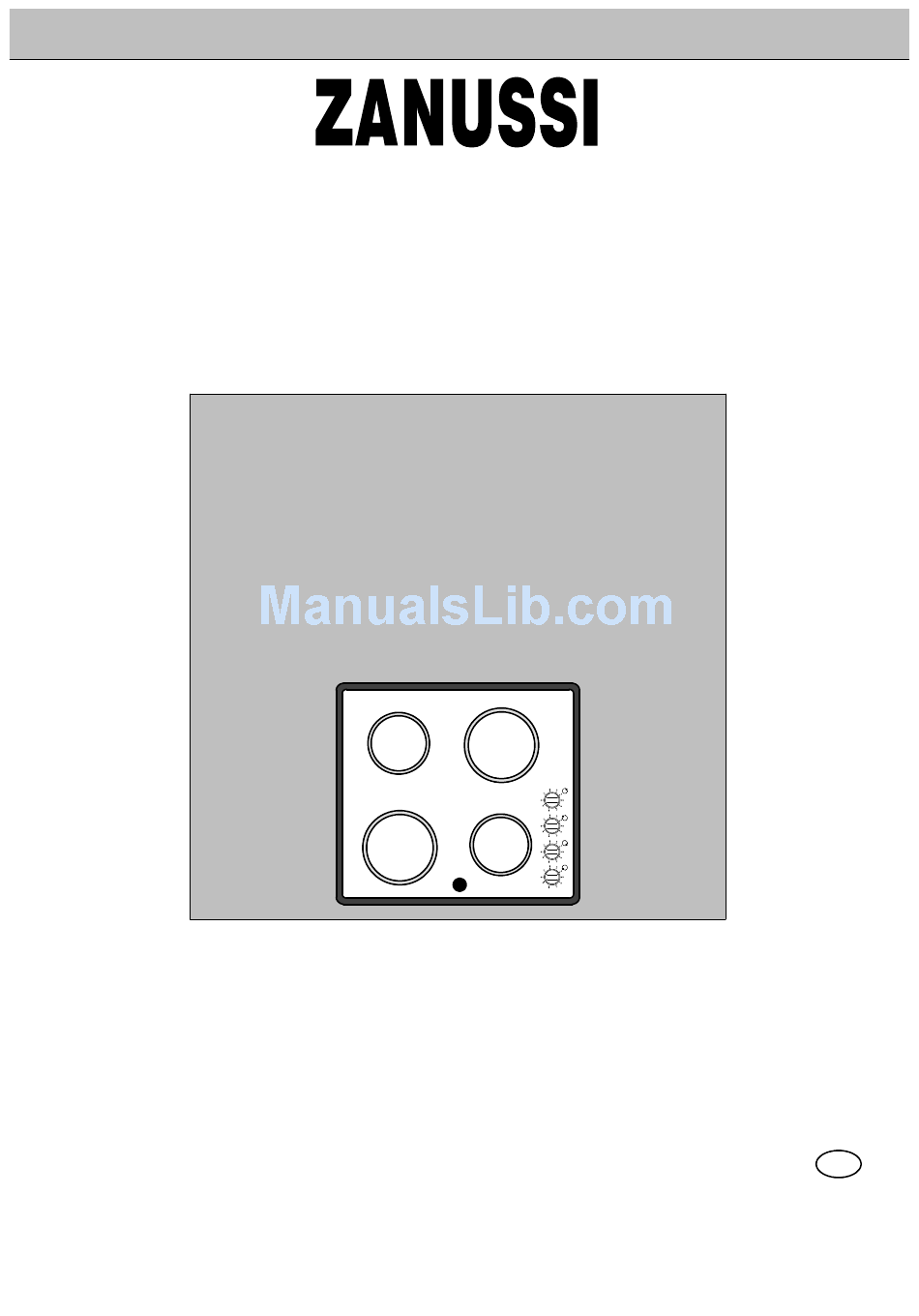

- Page 1 Electric Ceramic-glass Hob ZKL 64 W - ZKL 64 B ZKL 64 N - ZKL 64 X Operating and Installation Instruction 319 3900-00 K/RD-SD 980223...
-
Page 2: Important Hints On Safety
Important hints on safety Prior to the first use of the appliance do make your- Use and operation self familiar with the instruction manual. Pay spe- In case of careless handling there is danger of bur- cial attention to the hints on safety. In this manual ning oneself at the heating elements in the cooking they are marked with a area. -
Page 3: Overall View
Overall view ZKL 64 W ZKL 64 B ZKL 64 N ZKL 64 X 1. cooking zone Ø 180 mm, 1700 W 2. cooking zone Ø 145 mm, 1200 W 3. cooking zone Ø 180 mm, 1700 W 4. cooking zone Ø... -
Page 4: Hob Instructions
Hob instructions Ceramic glass surface The cooking surface is made of proven ceramic glass. The surface is non--porous and, in addition, insensitive to quick variations in temperature. Therefore pots may be moved from a hot to a cold zone. When switching on the cooking zones there may occur a short--termed audible buzzing sound of the radiant elements. -
Page 5: Residual Heat Indicator
Residual heat indicator The residual heat indicator with 1 indicator lamp is loca- ted between the two front cooking zones. The lamp comes on in case the temperature of switched on coo- king zones will reach more than (abt.) 60 C. -
Page 6: Cleaning And Care
Cleaning and care Clean your glass--ceramic hob thoroughly and regular- ly, when it is hand--hot or cold. Avoid frequent burning in of soiling. Suitable for cleaning are: Clean cloths or paper towels, cleansing agents such as cerafix, Stahl-fix, WK Top a.s.o. and a razor blade scra- per supplied by the manufacturer. -
Page 7: Installation Instructions
Installation instructions The appliance must exclusively be con- nected to the mains by an expert electri- cian. With the installation and in case of a service fai- lure the appliance has to be isolated from the mains. Fuselage to be switched off or removed. The general rules for the operation of electric appliances, the provisions by the competent electricity supply board and the specifications... -
Page 8: Built-In Dimensions
When building in ceramic glass cooking areas the front Measurement of cross-rail of the build-in cupboard must be removed in Worktop opening: Appliance: order to have the heat radiating off escape without any width: 560 mm width: 572 mm obstacles. depth: 490 mm depth: 502 mm The space under the hob unit must be closed at all... -
Page 9: Electric Connection
Electric connection Mains terminal in the bottom of the hob The mains connection must be carried out by an expert electrician. The VDE-regulations and the valid pre- scriptions by the local power suppy boards have to be compiled with. Prior to connection it should be checked whether the voltage stated on the type plate -- i.e. -
Page 10: What To Do In Case Of An Error
MADE IN GERMANY MADE IN GERMANY TYP: PEE2 011 PNC: 949 590 585 MODELL: ZKL 64 W TYP: PEE2 011 PNC: 949 590 587 MODELL: ZKL 64 N F.Nr.: ... . - Page 11 319 3900-00 - K/RD-SD 980928...
