Bowflex Xtreme 2 Assembly Instructions Manual

Home gym
Hide thumbs Also See for Xtreme 2:

Advertisement

Table of Contents

See also: Owner's Manual , Assembly and Instruction Manual
Assembly Instructions

Advertisement

Table of Contents
loading

Related Manuals for Bowflex Xtreme 2

Summary of Contents for Bowflex Xtreme 2

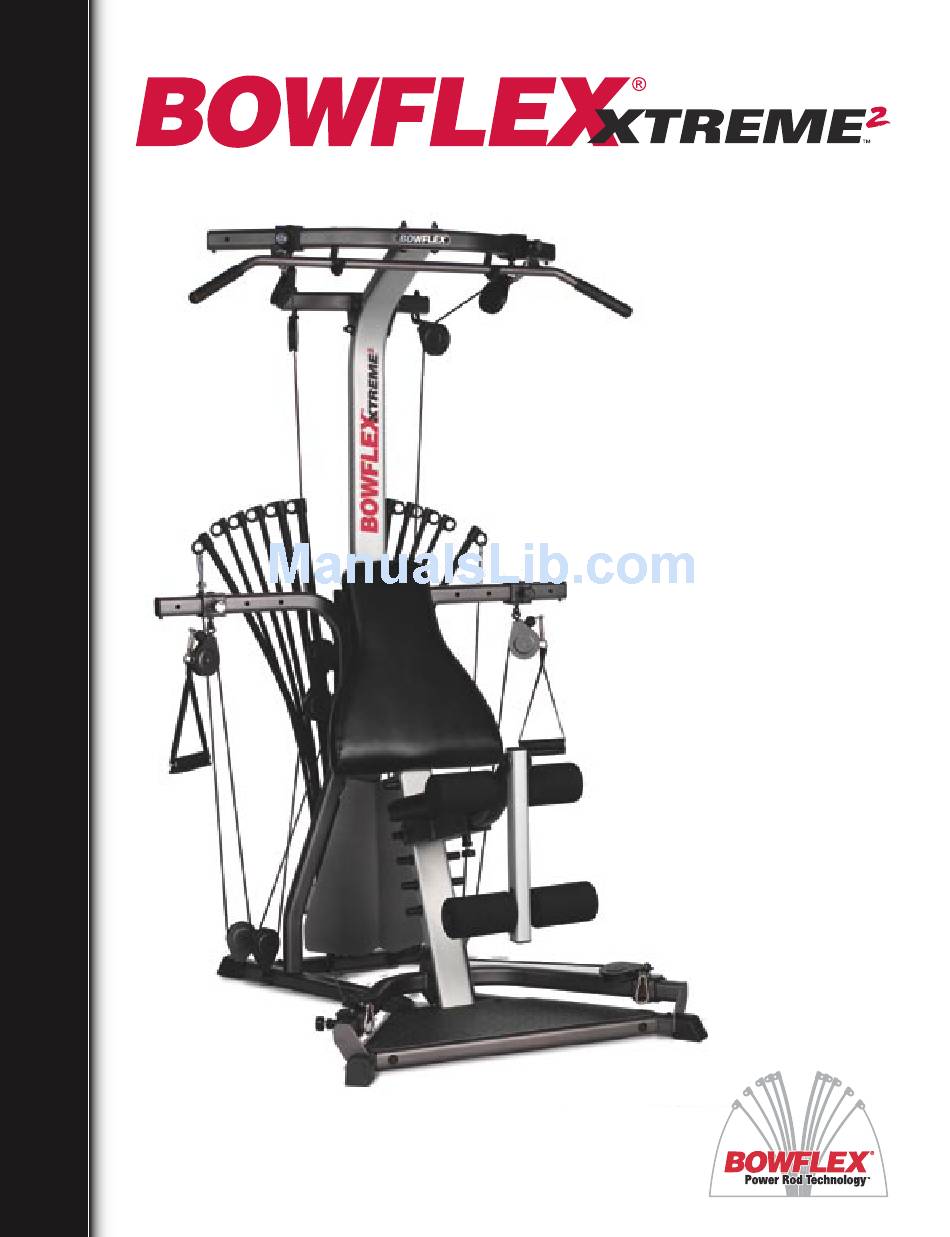

  • Page 1 Assembly Instructions...

  • Page 2: Product View

    Get To Know Your Machine The BOWFLEX Xtreme² Home Gym ®...

  • Page 3: Parts And Assembly

    Parts and Assembly Tips Parts List Hardware List Item Qty. Description Item Qty. Description STANDING PLATFORM SCREW, 4.2mm X 12mm SHROUD SCREW RIGHT FRAME RAIL SCREW, #10 X 1" SELF DRILLING LEFT FRAME RAIL BOLT, 1/4" X 1/2" SOCKET HEAD CAP REAR CROSS BAR BOLT, 5/16"...

  • Page 4: Assembly Hardware

    Bowflex® Xtreme² Home Gym Assembly Hardware Item #: D Item #: A Item #: B Item #:C Qty.: Qty.: Qty.: Qty.: Descr: 5/16" X 3/4" Descr: 4.2mm X 12mm Descr: #10 X 1" Self Descr: 1/4" X 1/2" Hex Head...

  • Page 5: Basic Assembly Principles

    2. When tightening a locknut on a bolt, use a combination wrench to grip the locknut and ensure that it is fastened securely. 3. When attaching two pieces, gently lift and look through the bolt holes to help guide the bolt through the holes. 4. As a general rule, and for all bolts and nuts on your Bowflex ®...

  • Page 6: Assembly

    Step 1: Assemble the Base Frame Assembly Figure 1 Locate the following items: • Item #1 - Standing Platform • Item #2 - Right Frame Rail • Item #3 - Left Frame Rail • Item #4 - Rear Cross Bar •...

  • Page 7: Attach Lower Lat Tower

    Step 3: Attach the Lower Lat Tower to the Base Figure 3 Frame Assembly Locate the following items: • From Step 1 - Base Frame Assembly • From Step 2 - Lower Lat Tower Assembly • Item #F - (2) 3/8" X 3/4" Hex Head Bolts •...

  • Page 8: Install Right/Left Squat Frame Rails

    Step 5: Install the Right and Left Squat Frame Rails Figure 5 Locate the following items: • Item #8 - Right Squat Frame Rail • Item #9 - Left Squat Frame Rail • Item #10 - Right Squat Frame Foot Assembly •...
  • Page 9 Step 6: Attach the Pulley Arms Locate the following items: • Items #12 and #13 - Right and Left Pulley Arms • From Step 5 - Main Assembly • Item #F - (4) 3/8" X 3/4" Hex Head Bolts • Item #O - (4) 3/8" Washers Place the Right Pulley Arm (Item #12) onto the bracket on the Right Frame Rail (Item #2), as shown in Figure 6.
  • Page 10 Step 8: Attach the Cable Shroud to the Pulley Arms Locate the following items: • Item #23 - Cable Shroud • From Step 7 - Main Assembly • Item #A - (4) 4.2mm X 12mm Self Drilling Screws • Item #L - (4) M4 Washers Line up the bolt holes in the Cable Shroud (Item #23) with the bolt holes in the Right and Left Pulley Arms (Items #12 &...
  • Page 11 Step 10: Attach the Seat Pad to the Seat Support Rail Locate the following items: • From Step 9 - Seat Backbone w/ Seat Assembly • From Step 8 - Main Assembly With the Seat Pad (Item #16) cushion side up, align the top two hooks on the Seat Backbone with the lowest pair of “pins”...

  • Page 12: Attach Front/Rear Lat Cross Bar

    Step 12: Attach Front Lat Cross Bar to Upper Lat Tower Figure 12 Locate the following items: • Item #25 - Upper Lat Tower • Item #26 - Front Lat Cross Bar • Item #H - (2) 3/8" X 3" Hex Head Bolts •...
  • Page 13 Step 14: Attach Upper Lat Tower to the Lower Assembly Figure 14 Locate the following items: • From Step 13 - Upper Lat Tower Assembly • From Step 11 - Main Assembly • Item #F - (3) 3/8" X 3/4" Hex Head Bolts •...
  • Page 14 Step 16: Bowflex® Xtreme² Home Gym Pulleys ™ Figure 16 shows all Pulleys on the Bowflex Xtreme home gym. Subsequent images illustrate how to connect and ² route each of the Cables through the pulleys. Connecting the Cables is much easier with a second person assisting you.

  • Page 15: Connect Right/Left Cables

    Step 17: Connect the Right and Left Cables to the Lat Figure 17 - Lat Pulley Housing Pulley Housing Locate the following items: • Item #36 - R2 and L2 Pulleys (already installed) Grasp and hold Cables here • Item #AA - (1) 3/8" X 4 1/2" Hex Head Bolt (installed) •...

  • Page 16: Connect Rod Cables Through R3/L3

    Step 18: Connect Rod Cables through the R3/L3 Figure 18 - Right Lat Tower Pulleys Floating and Lat Tower Pulleys Locate the following items: • Item #32 - R3 & R8 Floating Pulley (connected unit) • Item #33 - L3 & L8 Floating Pulley (connected unit) •...
  • Page 17 Step 19: Connect Squat Cables through the R8/L8 Figure 19 - Right Main Assembly Pulleys Floating and Main Assembly Pulleys Move the Right Squat Frame Pulley (R6) to the furthest back hole, as indicated in Figure 19. Unwrap the Right Squat Frame Pulley (R6) Cable and guide the Cable under the Cable Shroud, threading under and through the Rear Cross Bar Pulley (R7), and up through the Floating R8 Pulley.
  • Page 18 Step 20: Install the Leg Extension Figure 20 Locate the following items: • Item #18 - Lock Knob • Item #19 - Leg Extension Assembly Remove the Seat (installed in Step 10), and turn it cushion side down. Insert the Leg Extension Assembly (Item #19) into the open end of the Seat Backbone (Item #17).
  • Page 19 Leg Extension at the lower Rollers, as shown in Figure 22. Pulleys Pulleys Step 16: Inspect and Tighten all Hardware Carefully go over the entire Bowflex ® Xtreme² home gym assembly, and tighten all bolts, nuts and other hardware before using your Bowflex ® Xtreme²...
  • Page 20 1-800-269-3539 for assistance. © 2004, The Nautilus Group, Inc. 1400 N.E. 136th Ave., Vancouver, WA 98684. Bowflex Xtreme², Nautilus, Power Rods® and the Bowflex Xtreme² and Nautilus logos are registered trademarks of Nautilus, Inc. 12496 Rev AA (03/2004)
