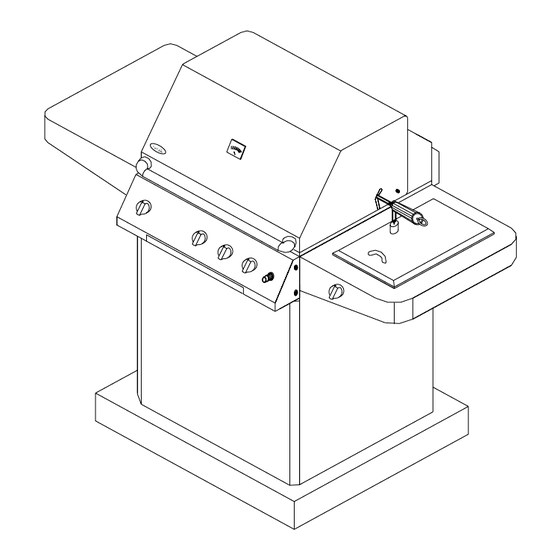

- Page 1 ASSEMBLY & OPERATING INSTRUCTIONS Model: 720-0083-04R FOR OUTDOOR USE ONLY PLEASE CONTACT 1-800-913-8999 FOR ASSISTANCE ABOUT ASSEMBLY OR GRILL OPERATION DO NOT RETURN TO THE PLACE OF PURCHASE...
- Page 2 FOR YOUR SAFETY If you smell gas: Shut off gas to the appliance. Extinguish any open flames. Open lid. If odor continues, immediately call your gas supplier or your fire department. WARNING Do not try to light this appliance without first reading the “LIGHTING INSTRUCTIONS”...
-
Page 3: Table Of Contents
MESSAGE TO OUR CONSUMERS Thank you for selecting our stainless steel gas grill. Because this appliance contains features which may not found on other grill, we recommend that you read this entire booklet before your first use. Keep it in handy place as it has answers to questions that may occur during future use. -
Page 4: Precautions
PRECAUTIONS FOR YOUR SAFETY CALIFORNIA PROPOSITION 65-WARNING If you smell gas: The burning of gas fuel generates some by- Shut off gas to the appliance. products, which are on the list of Extinguish any open flames. substances, which are known by the State of California to cause cancer or Open lid. - Page 5 PRECAUTIONS DO NOT STORE ITEMS OF INTEREST Moist or damp potholders on hot surfaces TO CHILDREN AROUND OR BELOW may cause burns from steam. Do not use a THE GRILL OR IN THE CART. NEVER towel or bulky cloth in place or potholders. ALLOW CHILDREN TO CRAWL INSIDE Do not let potholders touch hot portions of OF THE CART.
-
Page 6: Placement Of The Grill
PRECAUTIONS DO NOT USE BRIQUETTES OF ANY Do not use the grill for cooking KIND IN THE GRILL. excessively fatty meats or products which promote flare-ups. Do not operate the grill This stainless steel grill is designed for under unprotected combustible optimum performance without the use of construction. -
Page 7: Assembly Instructions
ASSEMBLE INSTRUCTIONS •The screws used to attach the side burner and side shelf are already screwed into the two side panels. Remove the screws and washers from the two side panels, align with the holes in the side shelves, and then re-screw into the holes on the side panels of the grill. (see the figure below) •Repeat the above step to install the left side shelf on left side panel. - Page 8 ASSEMBLE INSTRUCTIONS •To assemble the side burner lid handle. Open the lid first, cut off the plastic tie tied in the screw hole and install the handle in the lid as shown in figure below. •The screws for the rotisserie bracket are already screwed into the left side of the grill housing.
- Page 9 ASSEMBLE INSTRUCTIONS •Side Burner Valve Assembly Take side burner valve and insert through side burner front panel. Then secure with two (2) screws. Insert burner venturi onto burner valve orifice and use two (2) screws to secure burner to bracket as shown Secure burner with “u”...
- Page 10 ASSEMBLE INSTRUCTIONS •Remove the screw from the side panel, then attach the lighting rod onto the side panel by using the original screw. Your gas grill is ready to use.
- Page 11 PROPANE TANK ASSEMBLE Attach propane gas tank to regulator inlet fitting by turning the regulator clockwise as shown in figure below. LP gas cylinder must be fitted with a listed overfill prevention device (OPD) PROPANE TANK ASSEMBLE CYLINDER TANK STRAP – MUST BE USED...
-
Page 12: Gas Hook-Up
GAS HOOK-UP NEVER CONNECT AN UNREGULATED QCC1 in the standard for compressed gas GAS SUPPLY LINE TO THE APPLIANCE. cylinder valve outlet and inlet connection USE THE REGULATOR/HOSE ANSI/CGA-V-1. ASSEMBLY SUPPLIED. Manifold pressure: 10” water column This is a liquid propane configured grill. (W.C.). -
Page 13: Installer Final Check List
GAS HOOK-UP the valve, hand tighten the nut To disconnect L.P. gas cylinder: clockwise to a complete stop. Do not 1. Turn the burner valves off. use a wrench to tighten. Use of a wrench may damage the quick coupling 2. -
Page 14: Leak Testing
LEAK TESTING GAS FLOW CHECK Check all gas supply fittings for leaks before each use. It is handy to keep a Each grill burner is tested and adjusted at spray bottle of soapy water near the the factory prior to shipment; however, shut-off valve of the gas supply line. -
Page 15: Operation Instructions
OPERATING INSTRUCTIONS GENERAL USE OF THE GRILL AND WARNING: IMPORTANT! ROTISSERIE USING THE SIDE BURNER: Each main burner is rated at 12,000 Inspect the gas supply hose prior to Btu/hr. The main grill burners encompass turning the gas “ON”. If there is evidence the entire cooking area and are side of cuts, wear or abrasion, it must be ported to minimize blockage from falling... -
Page 16: Grill Lighting Instruction
OPERATING INSTRUCTIONS then push the meat forks firmly together. CAUTION: PLEASE TAKE OFF THE Tighten the wing nuts as tight as possible. WARMING RACK WHEN USING THE ROTIS BURNER. THE HIGH HEAT It may also be necessary to wrap the food COMING FROM THE ROTIS BURNER with butchers string (never use nylon or MAY CAUSE THE WARMING RACK TO... - Page 17 GRILL LIGHTING INSTRUCTIONS TO LIGHT THE GRILL BURNER: If you’ve just attempted to light the burner with the igniter, allow 5 minutes for any Make sure all knobs are “OFF” then turn on accumulated gas to dissipate. Keep your the gas supply from the LP tank. Always face and hands as far away from the grill keep your face and body as far from the as possible.
- Page 18 GRILL LIGHTING INSTRUCTIONS...
- Page 19 GRILL LIGHTING INSTRUCTIONS FLAME CHARACTERISTICS flame is noisy and tends to lift away from the burner, it indicates too much air. Check for proper burner flame characteristics. Burner flames should be blue and stable Each burner is adjusted prior to with no yellow tips, excessive noise, or shipment;...
-
Page 20: Lighting Illustration
LIGHTING ILLUSTRATION Main & Side Burner Lighting Illustrations Step 1. Make sure the Lid is open Step 2. Push and turn one of main or side burner knobs to HI position Step 3. You may need 3 or 4 trials to light the burner. After the burner is lit, adjust the knob as desired... - Page 21 The rear (rotisserie) burner is equipped with a safety control valve. If rear burner flame is extinguished, the safety will automatically shut off the gas supply to that burner. TO LIGHT REAR (ROTISSERIE) BURNER 1. Push in control knob, at the same time push safety button. 2.
-
Page 22: Care And Maintenance
CARE AND MAINTENANCE STAINLESS STEEL is made to relight the grill. Frequency of cleaning will depend on how often you use The grill is made from non-rusting and the grill. non-magnetic stainless steel. There are many different stainless steel cleaners MAIN GRILL BURNER CLEANING available. -
Page 23: Trouble Shooting
CARE AND MAINTENANCE in the direction of the grain. Do not use BURNER GRATE: steel wool as it will scratch the surface. To The top burner grate is stainless steel. To touch up noticeable scratches in the avoid burns do not clean a hot grate. They stainless steel, sand very lightly with dry may be wiped while 100 grit emery paper in the direction of the... - Page 24 TROUBLE SHOOTING CHECK LIST WHAT TO DO PROBLEMS Check to see if LP tank is empty. Grill won’t light when the control knob is rotated. Clean wire(s) and /or electrode by rubbing with alcohol and clean swab. Wipe with dry cloth. Make sure the wire is connected to electrode assembly.
-
Page 25: Parts List
PARTS LIST... - Page 26 PARTS LIST REF# DESCRIPTION Q’TY REF# DESCRIPTION Lid, Front Manifold Retainer Bracket Heat Indicator Control Panel Heat Insulating Spacer Safety Button Handle Assembly, Lid Control Knob Seat Name Plate Control Knob Bowl Assembly Grease Tray Lid, Side Burner Front Panel, Cart Lid Handle, Side Burner 3”Caster With Brake Cooking Grid, Side Burner...
-
Page 27: Ordering Parts
Different orifices must be installed when purchased. If dealer service is not converting from one type of gas to another. available, contact: Nexgrill Industries, Inc. You will also need a data plate indicating customer service 1-800-913-8999 or what type of gas is used by the grill. -
Page 28: Grill Cooking Chart
GRILL COOKING CHART... - Page 29 GRILL COOKING CHART...
- Page 30 GRILL COOKING CHART...
-
Page 31: Grill Recipe Suggestions
GRILL RECIPE SUGGESTIONS BBQ SALMON TANGY SEAFOOD KABOBS Half hour before cooking, turn the burner to the grill on full. Drain 1 lb. Large shrimp, shelled & 2 large salmon steaks deveined seafood reserving marinade. On 2 tbs. Oil each of twelve 10” skewers, ¾... - Page 32 GRILL RECIPE SUGGESTIONS Preheat grill. Combine cheese, Pound flank steak to ¼ inch In blender, process 1/3 c. water, condensed soup, milk, BBQ thickness or flatten chicken onion, soy sauce, 2 tsp. oil and sauce, oregano, salt and pepper breasts. Mix oil, lime juice and the next 8 ingredients until in a large mixing bowl.
- Page 33 GRILL RECIPE SUGGESTIONS CHICKEN TANDOORI STYLE the rack and to its center, minutes. Cook for approximately penetrate the second rib with the 3 hours. The basting sauce 8 large chicken thighs or drumsticks pointed end of the spit and push combined with turkey drippings it between the meat.
-
Page 34: Limited Warranty
Our obligation under this warranty is limited to repair or replacement, at our option, of the product during the warranty period. The extent of any liability of Nexgrill Industries, Inc. under this warranty is limited to repair or replacement. This warranty does not cover...
