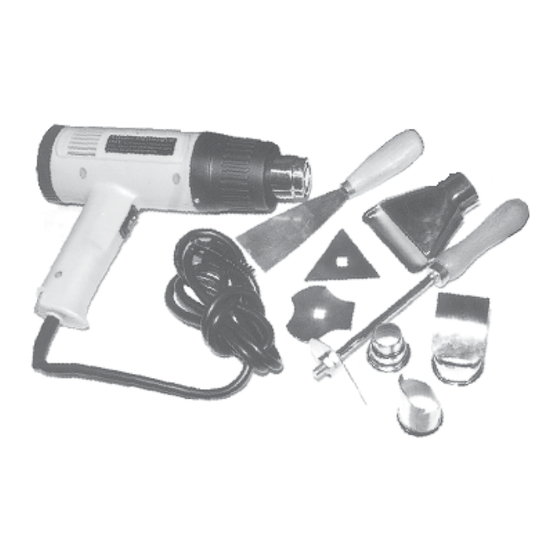

Heat gun with accessories
Hide thumbs
Table of Contents

Advertisement

Quick Links

HEAT GUN
WITH ACCESSORIES
ASSEMBLY & OPERATING INSTRUCTIONS
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at http://www.harborfreight.com
TO PREVENT SERIOUS INJURY,
READ AND UNDERSTAND ALL WARNINGS
AND INSTRUCTIONS BEFORE USE.
©
Copyright
2002, 2004 by Harbor Freight Tools
portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
For technical questions and replacement parts, please call 1-800-444-3353
47269
®
®
. All rights reserved. No

Advertisement

Table of Contents
loading

Related Manuals for Chicago Electric 47269

Summary of Contents for Chicago Electric 47269

  • Page 1 2002, 2004 by Harbor Freight Tools portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools. For technical questions and replacement parts, please call 1-800-444-3353 47269 ®...

  • Page 2: General Safety Rules

    THANK YOU for choosing a HARBOR FREIGHT TOOLS product. For future reference, please complete the owner’s record below: Model___________ Serial No._____________ You will need the manual for the safety warnings and precautions, assembly instructions, operating and maintenance procedures, parts list and diagram. Keep your invoice with this manual. Write the invoice number on the inside of the front cover.

  • Page 3: Personal Safety

    Use safety equipment. Always wear ANSI approved safety goggles and a respirator mask when using this tool.-See Heat Gun Specific Instruction 6 on page 5 for further details.
  • Page 4 OPERATOR. Warning: This product contains or, when used, produces a chemical known to the State of California to cause cancer and birth defects (or other reproductive harm). (California Health & Safety Code 25249.5 et seq.) ITEM 47269 SERVICE Page 4...
  • Page 5 Be sure the mask fits. Beards and facial hair may keep masks from sealing properly. Change filters often. DISPOSABLE PAPER MASKS ARE NOT ADEQUATE. 7) Use caution when operating the Heat Gun. Keep the Heat Gun moving as excessive heat will generate fumes which can be inhaled by the operator.

  • Page 6: Grounded Tools: Tools With Three Prong Plugs

    Nozzle is extremely hot. When using the Heat Gun, never allow any body part to contact nozzle. Never touch any hot surface when the Heat Gun is running. Be careful to put the hot Heat Gun down only on a non-flammable surface.

  • Page 7: Double Insulated Tools: Tools With Two Prong Plugs

    National Electrical Code. (See Figure B.) Double insulated tools may be used in either of the 120 volt outlets shown in the following illustration. (See Figure B.) n o xxxx/min. ITEM 47269 FIGURE B SYMBOLOGY Double Insulated Canadian Standards...

  • Page 8: Extension Cords

    Protect your extension cords from sharp objects, excessive heat, and damp or wet areas. REQUIRED MINIMUM EXTENSION CORD GAUGE - 110 VOLT NAMEPLATE AMPERES (At Full Load) 0-25 FT. ITEM 47269 EXTENSION CORD LENGTH 25-50 FT. 50-100 FT. 100-150 FT. FIGURE C Page 8...

  • Page 9: Operation

    The Heat Gun and included accessories are designed to be used to remove paint from painted surfaces. Never use the Heat Gun with chemical strippers. Other Uses for the Heat Gun Shrink plastic wire nuts and other wire jointers for tight fits.

  • Page 10: Maintenance

    Step 3) Turn on the Heat Gun. The Heat Gun has a High setting, a Low setting and an OFF Setting. Push the Switch (2) in at “H” (top of Switch) for the High setting or at “L” (bottom of Switch) to run on the low setting.
  • Page 11 When unpacking your Heat Gun in Blowmold Case, check to make sure the following parts are included. If any parts are missing or broken, please call HARBOR FREIGHT TOOLS at 1-800-444-3353. Left Housing Switch Shock Proof Pad Diode Motor Tapping Screw...
