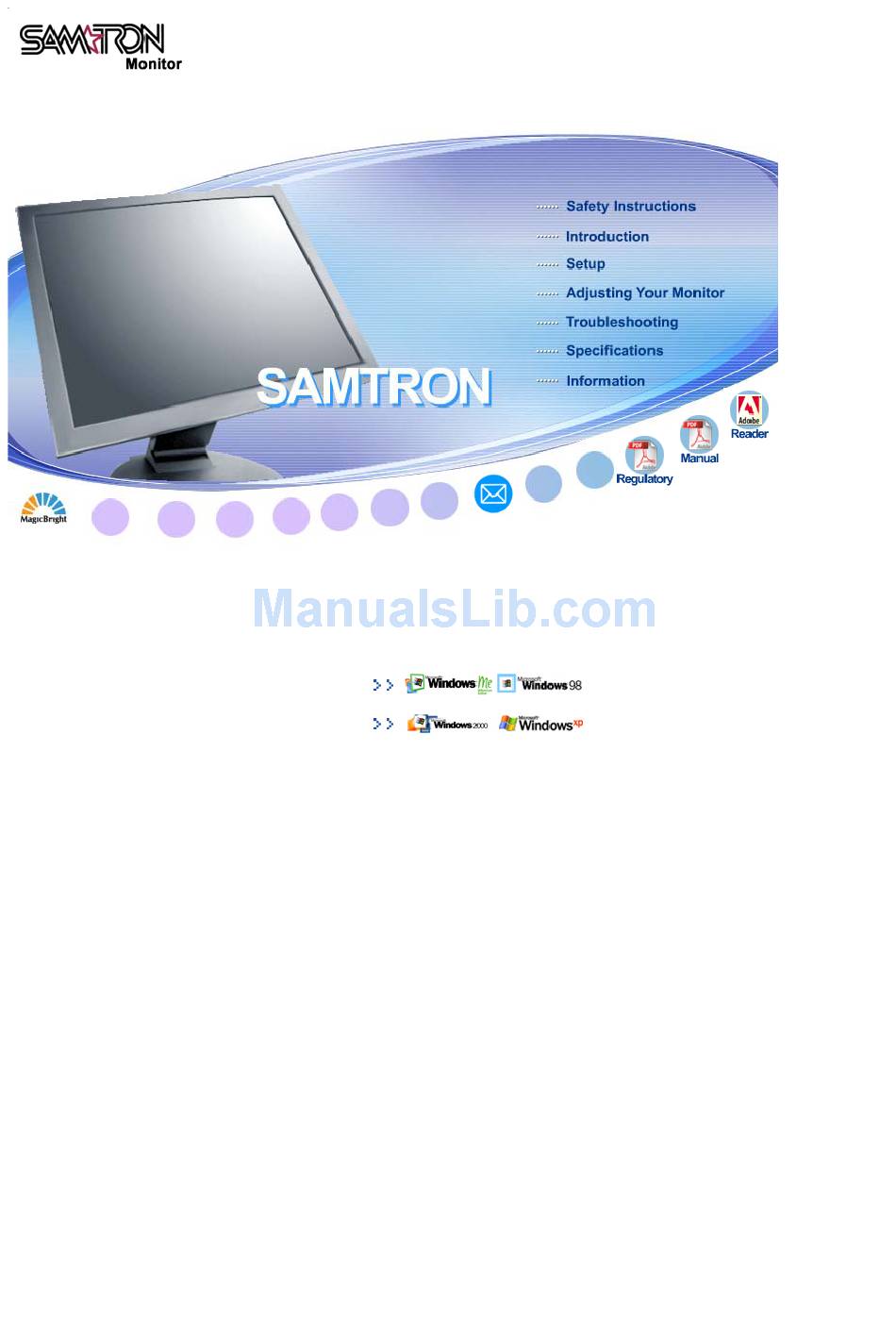

  • Page 1 SAMTRON 94B Install drivers...
  • Page 2 Notational Failure to follow directions noted by this symbol could result in bodily harm or damage to equipment. Prohibited Important to read and understand at all times Do not disassemble Disconnect the plug from the outlet Do not touch Grounding to prevent an electric shock Power When not used for an extended period of time, set your computer to DPMS.

  • Page 3: Installation

    Do not use a damaged or loose plug. This may cause an electric shock or fire. Do not pull the plug out by the wire nor touch the plug with wet hands. This may cause an electric shock or fire. Use only a properly grounded plug and receptacle.
  • Page 4 This may cause damage to the product or human body. Install the monitor base in a showcase or shelf so that the end of the base does not protrude from the showcase or shelf. Dropping the product may cause damage to the product or personal injury. Do not place the product on an unstable or small surface area.
  • Page 5 Installation by unqualified personnel may result in injury. Always use the mounting device specified in the owner's manual. When installing the product, make sure to keep it away from the wall (more than 10 cm / 4 inch ) for ventilation purposes. Poor ventilation may cause an increase in the internal temperature of the product, resulting in a shortened component life and degraded performance.
  • Page 6 Contact the Service Center or Customer Center for interior cleaning once a year. Keep the product's interior clean. Dust which has accumulated in the interior over an extended period of time may cause malfunction or fire. Others Do not remove cover (or back). This may cause an electric shock or fire.
  • Page 7 Do not cover the vents on the monitor cabinet. Bad ventilation may cause a breakdown or fire. Do not place water containers, chemical products or small metal objects on the monitor. This may cause malfunction, an electric shock or fire. If a foreign substance enters the monitor, unplug the power cord and contact the Service Center.
  • Page 8 Do not install the product on an unstable, uneven surface or a location prone to vibrations. Dropping the product may cause damage to the product or personal injury. Using the product in a location prone to vibrations may shorten the lifetime of the product or may catch fire.
  • Page 9 Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Contact a local dealer to buy optional items. Unpacking Monitor Monitor Manual Warranty Card User's Guide, Quick Setup Guide (Not available in all locations) Monitor Driver Cable D-Sub Cable...
  • Page 10 Front MEUN button [ ] Use this button for open the on-screen menu and exits from the menu screen or closes screen adjustment menu. MagicBright button MagicBright is a new feature providing optimum viewing environment depending on the contents of the image you are watching. Currently three different modes are available: Text, Internet, and Entertain.
  • Page 11 For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. Rear (The configuration at the back of the monitor may vary from product to product.) POWER port Connect the power cord for your monitor to the power port on the back of the monitor.
  • Page 12 Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet. 2-1. Using the D-sub (Analog) connector on the video card. Connect the signal cable to the 15-pin, D-sub port on the back of your monitor. [ RGB IN ] Using the DVI (Digital) connector on the video card.
  • Page 13 Follow the directions appropriate for the operating system you have. Prepare a blank disk and download the driver program file at the Internet web site shown here. Internet web site : http://www.samtron.com/ Windows XP/2000 1. Insert CD into the CD-ROM drive.
  • Page 14 This monitor driver is under certifying MS logo,and this installation don't damage your system.The certified driver will be posted on Samtron Monitor homepage http://www.samtron.com/. 5. Monitor driver installation is completed. Windows XP Windows 2000 Windows NT Linux When prompted by the operating system for the monitor driver, insert the CD-ROM included with this monitor.
  • Page 15 5. Click "Update Driver.." and select "Install from a list or.." then click "Next" button. 6. Select "Don't search ,I will.." then click "Next" and then click "Have disk". 7. Click the "Browse" button then choose A:(D:\Driver) and choose your monitor model in the model list and click the "Next"...
  • Page 16 This monitor driver is under certified MS logo,and this installation doesn't damage your system.The certified driver will be posted on Samtron Monitor homepage. http://www.samtron.com/ 9. Click the "Close" button then click "OK" button continually. 10. Monitor driver installation is completed.
  • Page 17 ® ® Microsoft Windows NT Operating System 1. Click Start, Settings, Control Panel, and then double-click Display icon. 2. In Display Registration Information window, click Settings Tab and then click All Display Modes. 3. Select a mode that you wish to use (Resolution, Number of colors and Vertical frequency) and then click OK.
  • Page 18 1. Opens the OSD menu. Also use to exit the OSD menu or return to the previous menu. 2. This button allows you to adjust items in the menu. 3. This button allows you to adjust items in the menu. 4.
  • Page 19 Menu Description Auto adjustment allows the monitor to self-adjust to the incoming video signal. The values of fine, coarse and position are adjusted automatically. (Available in analog mode only) AUTO To make the automatic adjustment function sharper, execute the 'AUTO' function while the AUTO PATTERN is on.
  • Page 20 Menu Description Brightness When OSD is not on the screen, push the button to adjust brightness. Source Menu Description Selects the Video signal while the OSD is off. Source Brightness Contrast 1. Picture Color Tone Color Control Gamma 2. Color Coarse Fine Sharpness...
  • Page 21 Picture Menu Description Play/Stop You can use the on-screen menus to change the brightness according to personal preference. Brightness Direct Access Feature : When OSD is not on the screen, push the button to adjust brightness. You can use the on-screen menus to change the contrast Contrast according to personal preference.
  • Page 22 can be selected - Cool, normal, Warm and Custom. Adjusts individual R,G,B color balance. Color Control Gamma correction changes the luminance of the colors with intermediate luminance. Gamma Mode 1 Mode 2 Mode 3 Image Menu Description Play/Stop Removes noise such as vertical stripes. Coarse adjustment may move the screen image area.
  • Page 23 Menu Description Play/Stop You can choose one of the seven languages. Language Note:The language chosen affects only the language of the OSD. It has no effect on any software running on the computer. You can change the horizontal position where the OSD menu H-Position appears on your monitor.
  • Page 24 Menu Description Play/Stop Select Auto Source for the monitor to automatically select the Auto Source signal source. Image Reset Image parameters are replaced with the factory default values. Color parameters are replaced with the factory default values. Color Reset Information Menu Description Shows a video source, display mode on the OSD screen.
  • Page 25 Before calling for service, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call the phone number on the Information section or contact your dealer. Symptom Check List Solutions No images on the Is the power cord connected properly?
  • Page 26 mode during this one-minute period. (The message is displayed again if the system is rebooted.) There is no image on the screen. The monitor is in PowerSaver mode. Is the power indicator on the monitor blinking at 1 second intervals? press a key on the keyboard to activate the monitor and restore the image on the screen.

  • Page 27: Self-Test Feature Check

    to reinstall the adapter (video) driver. If problems repeatedly occur, contact an authorized service center. Q & A Question Answer How can I change the frequency? Frequency can be changed by reconfiguring the video card. Note that video card support can vary, depending on the version of the driver used.
  • Page 28 Environment The location and the position of the monitor may influence the quality and other features of the monitor. 1. if there are any sub woofer speakers near the monitor, unplug and relocate the woofer to another room. 2. Remove all electronic devices such as radios, fans, clocks and telephones that are within 3 feet (one meter) of the monitor.
  • Page 29 General General Model Name SAMTRON 94B LCD Panel Size 19 inch Diagonal (48 cm) Display area 372.32 mm (H) x 301.56 mm (V) Pixel Pitch 0.294 mm (H) x 0.294 mm (V) Type a-si TFT active matrix Synchronization Horizontal 30 ~ 81 kHz...

  • Page 30: Preset Timing Modes

    Dimensions (WxDxH)/ Weight 428.0 X 61.8 X 357.5 mm / 16.9 x 2.4 x 14.1 inch (Without Stand) 428.0 X 204.0 X 433.0 mm / 16.9 x 8.0 x 17.0 inch (With Basic Stand) / 6.25 kg VESA Mounting Interface 100 mm x 100 mm (for use with Specialty(Arm) Mounting hardware.) Environmental considerations Operating...
  • Page 31 Table 1. Preset Timing Modes Horizontal Vertical Pixel Clock Sync Polarity Display Mode Frequency Frequency (MHz) (H/V) (kHz) (Hz) IBM, 640 x 350 31.469 70.086 25.175 IBM, 640 x 480 31.469 59.940 25.175 IBM, 720 x 400 31.469 70.087 28.322 MAC, 640 x 480 35.000 66.667...
  • Page 32 Contact SAMSUNG WORLD-WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. North America CANADA 1-800-SAMSUNG (7267864) http://www.samsung.com/ca MEXICO 01-800-SAMSUNG (7267864) http://www.samsung.com/mx U.S.A 1-800-SAMSUNG (7267864) http://www.samsung.com Latin America ARGENTINE 0800-333-3733 http://www.samsung.com/ar BRAZIL 0800-124-421 http://www.samsung.com/br...
  • Page 33 CZECH REPUBLIC 844 000 844 http://www.samsung.com/cz DENMARK 38 322 887 http://www.samsung.com/dk FINLAND 09 693 79 554 http://www.samsung.com/fi FRANCE 08 25 08 65 65 (€ 0,15/min) http://www.samsung.com/fr GERMANY 01805 - 121213 (€ 0,12/Min) http://www.samsung.de HUNGARY 06 40 985 985 http://www.samsung.com/hu ITALIA 199 153 153 http://www.samsung.com/it LUXEMBURG...

  • Page 34: Vertical Frequency

    Terms Dot Pitch The image on a monitor is composed of red, green and blue dots. The closer the dots, the higher the resolution. The distance between two dots of the same color is called the 'Dot Pitch'. Unit: mm Vertical Frequency The screen must be redrawn several times per second in order to create and display an image for the user.

  • Page 35: Information In This Document Is Subject To Change Without Notice

    4. If you are not satisfied with the quality of picture, you can get better quality of picture by executing "auto adjustment function" in display screen that is appeared as window termination button is pressed. If there's still noise after automatic adjustment, use FINE/COARSE adjustment function. 5.

  • Page 36: Product Information (Image Retention Free)

    PRODUCT INFORMATION (Image Retention Free) LCD Monitors and TVs may have image retention when switching from one image to another especially after displaying a stationary image for a long time. This guide is to demonstrate correct usage of LCD products in order to protect them from Image retention.
  • Page 37 The best way to protect your monitor from Image retention is to set your PC or System to operate a Screen Saver program when you are not using it. Image retention may not occur when a LCD panel is operated under normal conditions. Normal conditions are defined as continuously changing video patterns.

  • Page 38: Correct Disposal Of This Product (Waste Electrical & Electronic Equipment) - Europe Only

    Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.
