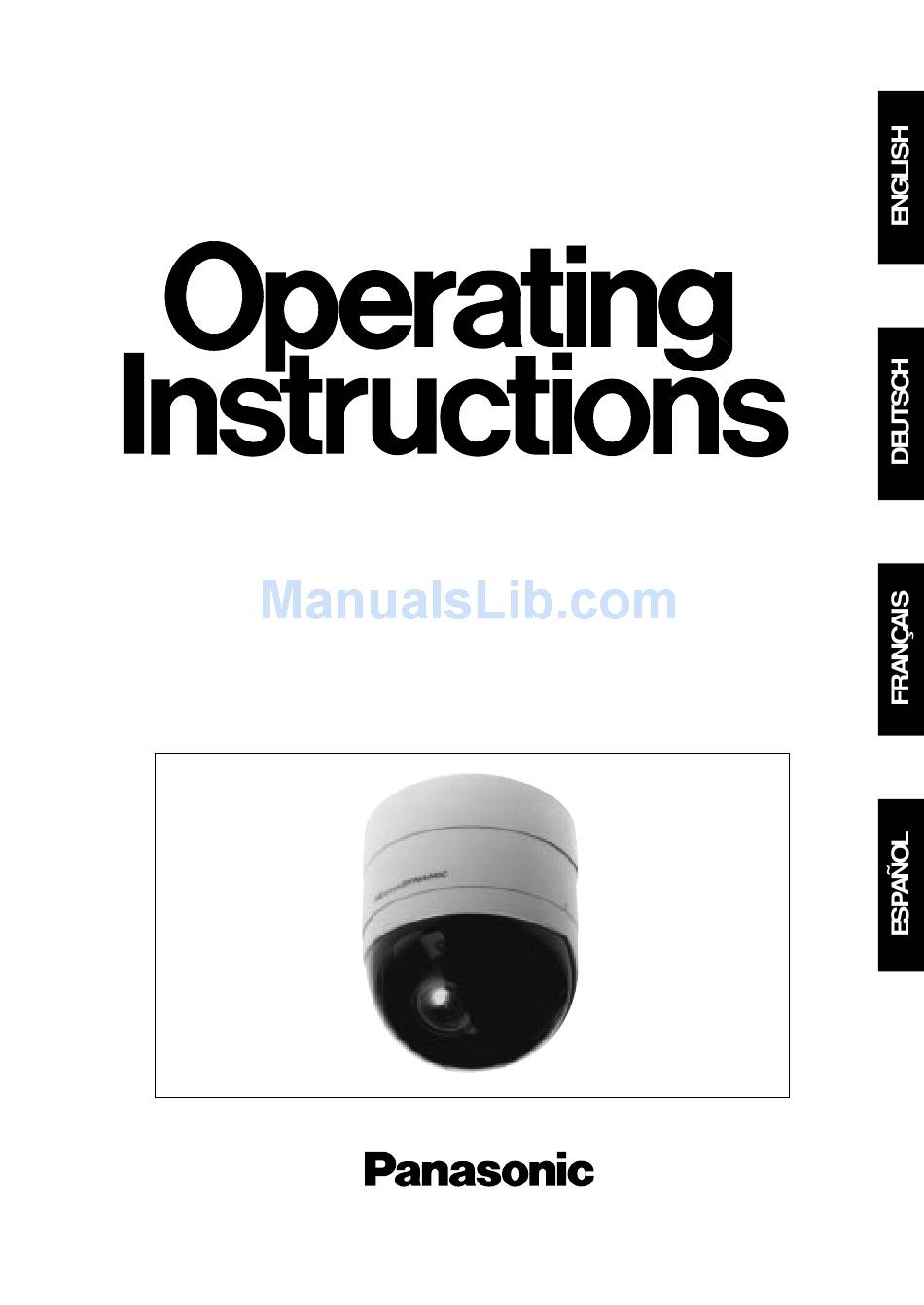

- Page 1 Colour CCTV Camera WV-CF250 WV-CF254 Before attempting to connect or operate this product, please read these instructions completely...
- Page 2 ENGLISH VERSION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK), NO USER SERVICEABLE PARTS INSIDE. For Australia REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. THIS APPARATUS MUST BE EARTHED. To ensure safe operation the three-pin plug must be inserted only into a standard three-pin power point which is effectively earthed through the normal household wiring.
-
Page 3: Table Of Contents
CONTENTS PREFACE ................................2 FEATURES ................................2 PRECAUTIONS ..............................2 MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS ................3 CONNECTIONS ..............................5 INSTALLATION ..............................6 ADJUSTMENT ............................... 9 SYSTEM CONNECTION ............................11 SETUP ................................. 12 1. CAMERA SETUP MENU ..........................12 2. -
Page 4: Preface
PREFACE PRECAUTIONS Panasonic's WV-CF250 series colour digital cam- 1. Do not attempt to disassemble the camera. era introduces a new level of high picture quality To prevent electric shock, do not remove and high resolution through the use of a 1/3-inch screws or covers. -
Page 5: Major Operating Controls And Their Functions
MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS LEFT RIGHT DOWN... - Page 6 This button moves the cursor to the right. It supply cable. also selects the mode and adjusts some lev- els. !4 AC Power Cable (for WV-CF250) This cable is for connecting the 220-240 V AC (L) (Left Button) power supply.
-
Page 7: Connections
Contact Insert • Power supply connection Insert the wire until A position A. WV-CF250 (220-240V AC 50Hz) and clamp the contacts. Connect the AC power cable to an electrical Prepare the individual conductors for clamping. outlet of 220-240V AC 50Hz. -
Page 8: Installation
INSTALLATION Important Notices: 2. Mounting the camera onto the camera fixing bracket • The following installation should be made by 2-1. Make sure the video output cable and power qualified service personnel or system installers cable are fixed by the coaxial cable clamps. and should confirm to all local codes. - Page 9 2-3. Remove the dome cover from the camera by 2-5. Turn the camera in the LOCK direction until the turning it counterclockwise. lock tab of the camera fixing bracket meets the lock line of the camera. Lock tab Lock line 2-6.
- Page 10 2-7. Match the four grooves on the camera with the four projections on the dome cover. Grooves Projections 2-8. Attach the dome cover to the camera by turn- ing this cover clockwise so that the window in the dome cover matches the camera head.
-
Page 11: Adjustment
ADJUSTMENT 1. Panning 3. Uprighting the picture Loosen the 2 lens holders and bring the pic- The Panning table can be moved between the ture in an upright position on the monitor guide lines. screen by turning the camera head. Guide lines Lens holders Panning table... - Page 12 4-5. Set the correct focus by turning the focus ring. 4-6. After setting the correct focus, tighten the focus lock lever. 4-7. After adjusting the angular field of view and focus, attach the dome cover to the camera body. -10-...
-
Page 13: System Connection
SYSTEM CONNECTION Shown below is an example of a basic system connection. Alarm Video Multiplexer CAMERA/PRESET POSITION MULTI MULTISCREEN PUSH OPEN ALARM SCREEN SELECT LOCK POWER RESET SPOT SEQUENCE RS-232C/Wired Time Lapse VTR Spot Monitor Multiscreen Monitor Live 1-16ch Live 1-16ch Playback 1-16ch -11-... -
Page 14: Setup
SETUP 1. CAMERA SETUP MENU This camera utilizes a user setup menu that is displayed on-screen. The setup menu contains various items that form a tree-type structure as shown below. It is described in the following section : “2. SETUP OPERATION.” CAM SET UP SET UP DISABLE SET UP ENABLE... -
Page 15: Opening The Setup Menu
White Special Balance menu Manual Manual Chroma Level Level Gain Gain Pedestal Adjustment Adjustment Manual Manual Mask Area Mask Area Selection Selection • Opening the Setup Menu ** CAM SET UP ** Press and hold down (S) for a second or longer. CAMERA ID ALC/ELC SHUTTER... - Page 16 ** CAM SET UP ** ** CAM SET UP ** CAMERA ID CAMERA ID ALC/ELC ALC/ELC SHUTTER SHUTTER SYNC SYNC WHITE BAL WHITE BAL SET UP DISABLE SET UP ENABLE • Editing the SPECIAL menu To edit the SPECIAL menu (change settings), pro- ceed as for editing the CAM SET UP menu above.
-
Page 17: Setting Procedures
SETTING PROCEDURES 1. Camera Identification (CAMERA ID) To erase all characters in the editing area Move the cursor to RESET and press (S). All Setting characters in the editing area disappear. You can use the camera identification (CAMERA ID) to assign a name to the camera. The camera ID To determine the display position of the consists of up to 16 alphanumeric characters. - Page 18 2-1. ALC Mode with SUPER-D ON 2-2. ALC Mode with SUPER-D OFF and ELC Mode Super Dynamic Function (SUPER-D) Note: If ELC is selected, set MASK SET according The important object in a scene is usually placed in to this procedure. the centre of the monitor’s screen.
- Page 19 4. Repeat step 3 to mask the desired areas. To 4. Gain Control Setting (AGC ON/OFF) cancel masking, move the cursor to that area You can set the gain (brightness level portion of an and press (S). image) to automatic level adjustment (ON) or fixed level (OFF).
- Page 20 5-1. Line-lock Sync Mode (LL) 8. Press (L) or (R) to match the vertical phase for both video output signals as closely 1. Move the cursor to the SYNC parameter and as possible. select LL. (FINE adjustment can be made up to 22.5 Note: The settings in this menu can be made degrees by pressing (L) or...
- Page 21 • AWC (Automatic White Balance Control) 5. Press (L) or (R) to obtain the optimum In this mode, accurate white balance is amount of blue gain. obtained within a colour temperature range of approximately 2 300-10 000K. Note: When you need to set MASK SET, re-adjust 1.
-
Page 22: Prevention Of Blooming And Smear
To close the SPECIAL menu and return to the CAM SET UP menu Move the cursor to RET and press (S). To close the SPECIAL menu and return to the camera picture Move the cursor to END and press (S). PREVENTION OF BLOOMING AND SMEAR When the camera is aimed at a bright light, such as a spotlight, or a surface that reflects bright light,... -
Page 23: Specifications
Ambient Operating Temperature: 10°C - +50°C (14°F - 122°F) Ambient Operating Humidity: Less than 90% Power Source: WV-CF250: 220-240V AC 50 Hz, 4.6 W WV-CF254: 24V AC 50 Hz, 4.6 W Dimensions: 143.5 (H) x 121 (D) mm [5-5/8” (H) x 4-3/4” (D)]... - Page 24 Matsushita Electric Industrial Co., Ltd. Central P.O. Box 288, Osaka 530-91, Japan N1297-0 YWV8QA4880AN Printed in Japan N 30 Gedruckt in Japan Imprimé au Japon Impreso en Japón...
