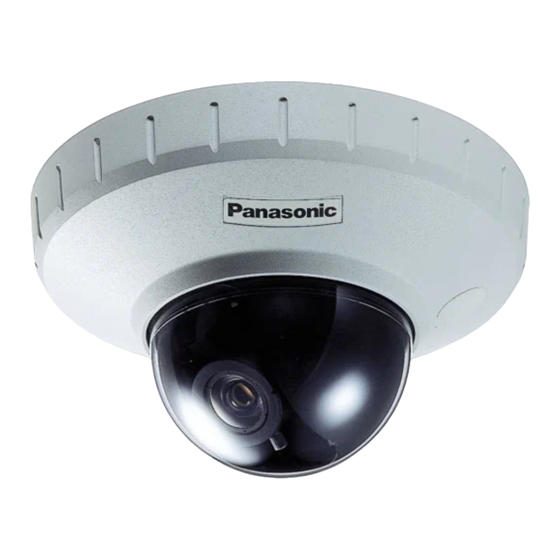

Panasonic WV-CF212E Series Operating Instructions

Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER SER-
VICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead
symbol, within an equilateral trian-
gle, is intended to alert the user to
the presence of uninsulated "dan-
gerous voltage" within the product's
enclosure that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and mainte-
nance (servicing) instructions in the
literature accompanying the appli-
ance.
The serial number of this product may be found on the bottom of the unit.
You should note the serial number of this unit in the space provided and retain this instruction as a permanent
record of your purchase to aid identification in the event of theft.
Model No.
Serial No.
WARNING: To prevent fire or electric shock hazard, do not expose this appliance to rain or moisture.
The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as
vases, shall be placed on the apparatus.
PREFACE
Panasonic's WV-CF212E series digital signal pro-
cessing colour CCD cameras uses a 1/4-inch
interline transfer CCD image sensor having 752
horizontal pixels (picture elements), and digital
PRECAUTIONS
1. Do not attempt to disassemble the camera.
To prevent electric shock, do not remove
screws or covers.
There are no user-serviceable parts inside.
Ask qualified service personnel for servicing.
2. Handle the camera with care.
Do not abuse the camera. Avoid striking,
shaking, etc. The camera could be damaged
by improper handling or storage.
3. Do not expose the camera to rain or
moisture, or try to operate it in wet areas.
Turn the power off immediately and ask quali-
fied service personnel for servicing. Moisture
can damage the camera and also create the
danger of electric shock.
4. Do not use strong or abrasive detergents
when cleaning the camera body.
Use a dry cloth to clean the camera when
dirty.
In case the dirt is hard to remove, use a mild
detergent and wipe gently. Afterwards, wipe
off the remained part of the detergent in it
with a dry cloth.
Colour CCTV Camera
Operating Instructions
WV-CF212E
Model No.
Ns0902-2043 3TR001235CAA Printed in China
We declare under our sole responsibility that the
product to which this declaration relates is in confor-
mity with the standards or other normative documents
following the provisions of Directives EEC/73/23 and
EEC/89/336.
Wij verklaren als enige aansprakelijke, dat het prod-
uct waarop deze verklaring betrekking heeft, voldoet
aan de volgende normen of andere normatieve docu-
menten, overeenkomstig de bepalingen
Richtlijnen 73/23/EEC en 89/336/EEC.
Vi erklærer os eneansvarlige for, at dette produkt,
som denne deklaration omhandler, er i overensstem-
melse med standarder eller andre normative doku-
menter i følge bestemmelserne i direktivene
73/23/EEC og 89/336/EEC.
Vi deklarerar härmed värt fulla ansvar för att den pro-
dukt till vilken denna deklaration hänvisar är i
överensstämmelse med standarddokument, eller
andra normativa dokument som framstölls i EEC-
direktiv nr. 73/23 och 89/336.
Ilmoitamme yksinomaisella vastuullamme, että tuote,
jota tämä ilmoitus koskee, noudattaa seuraavia stan-
dardeja tai muita ohjeellisia asiakirjoja, jotka noudat-
tavat direktiivien 73/23/EEC ja 89/336/EEC
säädöksiä.
Vi erklærer oss alene ansvarlige for at produktet som
denne erklæringen gjelder for, er i overensstemmelse
med følgende normer eller andre normgivende doku-
menter som følger bestemmelsene i direktivene
73/23/EEC og 89/336/EEC.
WV-CF212E
signal processing LSI's. This model is designed
for video surveillance.
5. Clean the lens faceplate with care.
Do not clean the lens with strong or abrasive
detergents. Use lens tissue or a cotton tipped
applicator and ethanol.
6. Never face the camera towards the sun.
Do not aim the camera at bright objects.
Whether the camera is in use or not, never
aim it at the sun or other extremely bright
objects. Otherwise, blooming or smear may
be caused.
7. Do not operate the camera beyond the
specified temperature, humidity or power
source ratings.
Use the camera under conditions where tem-
perature is between –10 °C to +50 °C (14 °F to
122 °F), and humidity is below 90 %. The
input power source is 12 V DC, 240 mA.
8. It is recommended to use a monitor whose
resolution is at least equal to that of the
camera.
MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS
-
+12 V
q Camera Panel
w Panning/Tilting/Azimuth Table
Adjusts the panning/tilting angle of the cam-
era.
e Focus Lever
Fixes the focus position after adjusting.
r Zoom Lever
Fixes the zoom position after adjusting.
van
t Video Output Terminal
Connects to the video input connector of a
monitor.
y DC 12 V Input Terminal
Connects to the 12 V DC, 240 mA power sup-
ply. Connection should be made in accor-
dance with the !/@ signs of PCB.
Caution: CONNECT THIS TO 12 V DC
(10.5 V TO 16 V) CLASS 2 POWER
SUPPLY ONLY.
u Back Light Compensation Mode Selector
(BLC ON, OFF)
ON: Select this when the brightness level of
the background is higher than the
object.
OFF: Select this when you can view the
object without backlight.
The factory default setting is OFF.
INSTALLATIONS
WARNING
• The following installation should be made by qualified service personnel or system installers and
should confirm to all local codes.
• Be sure to use a ceiling board/wall having enough strength to support this camera.
Camera mounting position
Notes:
• Remove the panel cover before the mounting procedure. (Refer to Step 1 to 4 of "How to mount the
camera" on the next page.)
• Procure four mounting screws locally.
To mount the camera on a junction box
Note: If you mount the camera on a junction box, procure one locally that meets the dimensions in the fig-
ure below.
1. Install the junction box to the wall/ceiling.
2. Attach the four mounting screws to the junction box.
3. Fix the camera and the junction box. Then, turn the camera clockwise.
4. Fasten all the mounting screws.
Shown figure is an
example for junction box.
Camera mounting screw x 4
To mount the camera directly on the wall/ceiling
1. Cut out the panel according to the concave.
(Refer to the figure on the right.)
2. Prepare a space, which is ø155 mm (6.1") or
larger, on the wall/ceiling.
3. Attach the four mounting screws to the
wall/ceiling. (Refer to "Installation dimensional
drawing".)
4. Fix the camera and the wall/ceiling. Then,
turn the camera clockwise.
5. Fasten all the mounting screws.
q
w
e
r
o
u
i
–
y
AP Soft
t
AP Sharp
i Aperture Level Selector (AP Sharp/Soft)
Sharp: Sharpens the image outline.
Soft: Softens the image outline.
The factory default setting is Sharp.
Note: Set the selector to Soft when a quad
system is connected to this camera.
o Video Jack (3.5 diam. mini jack)
Connect the LCD monitor and such devices
with 3.5 diam. 2-pole L-type plug for check-
ing images.
!0 Panel Cover
Installation dimensional drawing
Front / Upper
Cable access hole
46 mm
(1-13/16")
83.5 mm
(3-5/16")
!0
BLC OFF
BLC ON
46 mm
(1.81")
6-ø4.5(0.18")
35°
ø130 (5.12")
