Summary of Contents for Panasonic WV-BM990
-
Page 1: Video Monitor

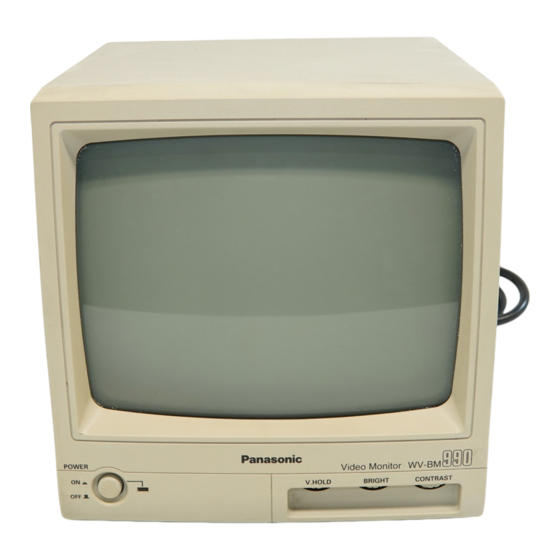

Video Monitor Operating Instructions WV-BM990 Model No. PO W ER OF F V id eo M on 9 9 0 ito r W V -B V HO LD BR IG HT CO NT RA ST Before attempting to connect or operate this product,... - Page 2 If you lose the fuse cover the plug must not be used until a replacement cover is obtained. DO NOT REMOVE COVER (OR BACK), NO USER A replacement fuse cover can be purchased from your local Panasonic SERVICEABLE PARTS INSIDE. Dealer.
-
Page 3: Table Of Contents
CONTENTS PREFACE ......................................4 FEATURES ...................................... 4 PRECAUTIONS ....................................4 MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS ......................5 CONNECTIONS ....................................6 INSTALLATION ....................................6 SPECIFICATIONS ................................... 7 OPTIONAL ACCESSORY ................................7... -
Page 4: Preface
PREFACE The Panasonic Video Monitor WV-BM990 reproduces sharp black and white pictures on its 10-inch picture tube. FEATURES • Approx. 220 mm (8-11/16 inches) in actual diagonal visual size. • Horizontal resolution of more than 800 lines in centre. • Looped through BNC connectors for video input and output. -
Page 5: Major Operating Controls And Their Functions
MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS Front View Rear View VIDEO IN VIDEO OUT POWER Video Monitor WV-BM V.HOLD BRIGHT CONTRAST q Power Switch (POWER, ON/OFF) t Contrast Control (CONTRAST) This is a push-push type switch which turns the power Adjusts the picture contrast. -
Page 6: Connections
(3 300 ft) (4 125 ft) • Up to 10 monitors can be hooked up in the figure shown below (looped through connection) before signal loss occurs. Total cable length should not exceed 150 m (500 feet). WV-BM990 WV-BM990 WV-BM990 Camera... -
Page 7: Specifications
SPECIFICATIONS Power Source: 220-240 V AC, 50 Hz Power Consumption: Approx. 28 W Screen Size: 245 mm (9-5/8’’) diagonal tube size, 90° deflection. 220 mm (8-11/16’’) diagonal actual visual size. Horizontal Resolution: 800 TV lines at centre Video Input: 1.0 V[p-p] composite/75 , BNC with Auto Termination Video Output: Looped through video input, BNC Horizontal Scanning Frequency:... - Page 8 Matsushita Electric Industrial Co., Ltd. Central P.O. Box 288, Osaka 530-91, Japan Nt0100-0 YWV8QA5383AN Printed in Japan N 19 Gedruckt in Japan Imprimé au Japon Impreso en Japón © Matsushita Communication Industrial Co., Ltd. 2000...
