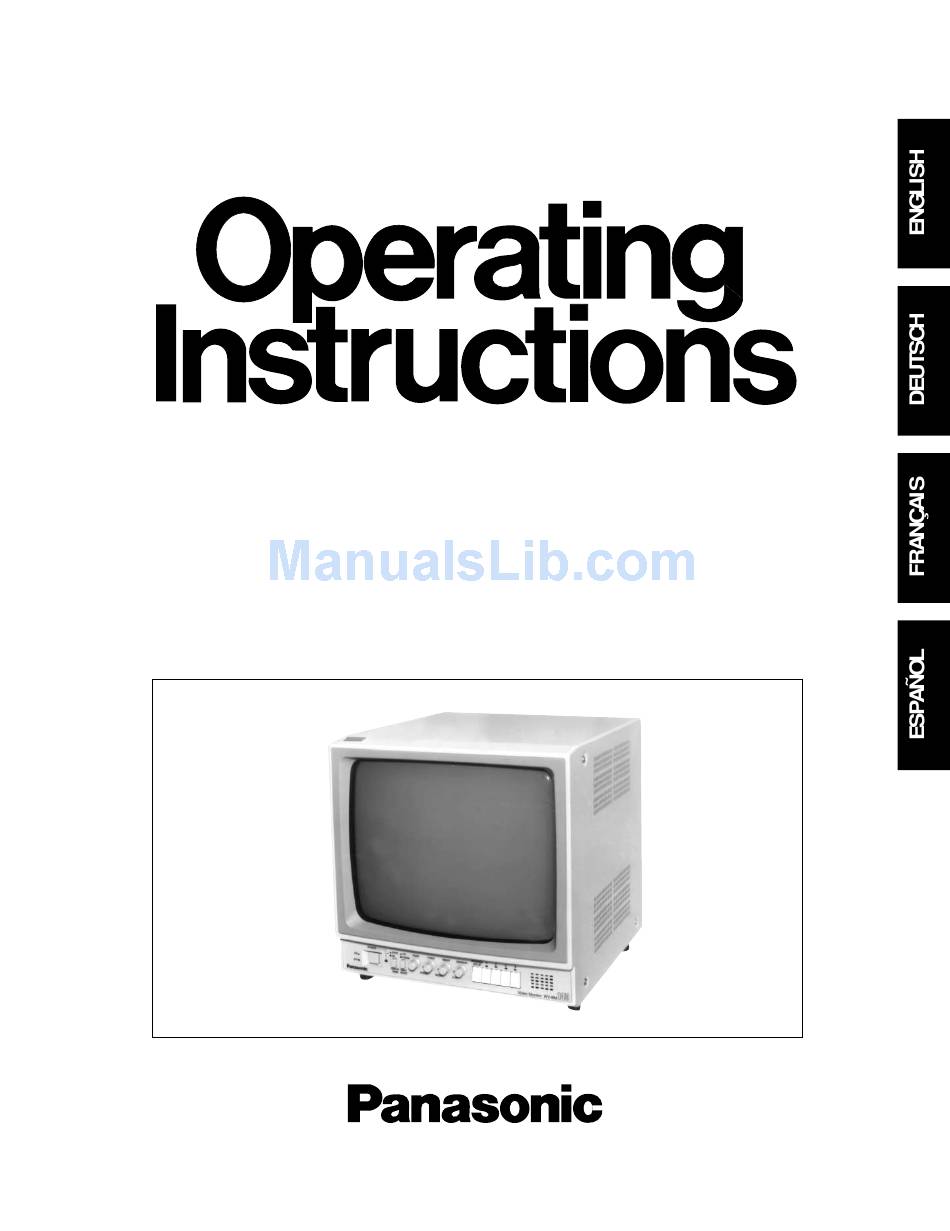

Page 1: Video Monitor
Video Monitor WV-BM140 Before attempting to connect or operate this product, please read these instructions completely... - Page 2 If you lose the fuse cover the plug must not be used until a replacement TO REDUCE THE RISK OF ELECTRIC SHOCK, cover is obtained. DO NOT REMOVE COVER (OR BACK), NO USER A replacement fuse cover can be purchased from your local Panasonic SERVICEABLE PARTS INSIDE. Dealer. REFER SERVICING TO QUALIFIED SERVICE IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCK- PERSONNEL.
-
Page 3: Table Of Contents
CONTENTS PREFACE ......................................2 FEATURES ......................................2 PRECAUTIONS ....................................2 MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS ......................3 SETUP OPERATION ................................... 6 OPERATING PROCEDURES ................................9 CONNECTIONS ....................................11 SYSTEM CONNECTION ..................................15 SPECIFICATIONS ....................................16 OPTIONAL ACCESSORIES ................................16... -
Page 4: Preface
PREFACE The Panasonic's WV-BM140 is a desk-top closed circuit tem, interconnected by coaxial cables that carry DC power Video Monitor especially designed for surveillance. and vertical drive pulse to the cameras. The system can be Up to four specified cameras can be connected to this... -
Page 5: Major Operating Controls And Their Functions
MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS FRONT VIEW SEQUENCE POWER AUDIO V.HOLD BRIGHT CONTRAST SET UP STD BY CAMERA H.HOLD HEIGHT V.LIN DISPLAY INPUT MODE SELECT Video Monitor WV-BM 1. Power Switch (POWER) 6. Horizontal Hold Control (H. HOLD) This switch turns the power of the monitor on or off. This control is used to adjust the horizontal position of Press this switch once (;) to turn the monitor on. -
Page 6: Rear View
9. Bright Control (BRIGHT) 12. Sequence / Setup Switch Turn this control clockwise to increase the picture (SEQUENCE / SET UP) brightness. Turn it counterclockwise to decrease the This switch is used to display a series of camera pic- picture brightness. tures on the monitor. - Page 7 STD BY-GND Connection 25. Camera Input Connectors (CAMERA INPUT, 1/2/3/4) The alarm output signal is supplied only when the Connect the specified cameras to these connectors. DISPLAY MODE switch is set to STD BY. These connectors supply DC power and vertical drive ALL MODE-GND Connection pulse to the cameras and receive the video and audio The alarm output signal is supplied regardless of...
-
Page 8: Setup Operation
SET UP OPERATION • Opening the Setup Menu Make sure that the connections of peripherals and those made at the alarm output terminals are correct and firm. The SET UP MENU is not displayed unless a camera is connected. (Refer to “CONNECTIONS” on page 11.) ** SET UP MENU ** The SET UP MENU is described in detail in the following CAMERA ID... - Page 9 Setting Procedure 1-1. Move the cursor to CAMERA ID and select the desired camera by using the Left (A) or Right (B) switch. To display the camera identification, press the SET UP 1. Camera Identification Setting switch repeatedly. (CAMERA ID) This item has two functions.
- Page 10 3. Timing Selection (TIMING SELECT) 5-1 Move the cursor to ALARM BUZZER. 5-2. ALARM BUZZER On/Off can be selected by using the This item is used to select the switching timing. Left (A) or Right (B) switch. INT: The switching timing is determined by the setting The alarm sounds for 1-60 seconds (selected by of SEQ TIME ADJ.
-
Page 11: Operating Procedures
8. Manual Skip Setting OPERATING PROCEDURES (MANUAL SKIP) This item is used to skip the picture of a specified cam- SEQUENCE POWER AUDIO V.HOLD BRIGHT CONTRAST SET UP STD BY era for monitoring in sequential switching. CAMERA H.HOLD HEIGHT V.LIN DISPLAY INPUT MODE... - Page 12 VTR Playback Mode 1. Press the POWER switch once (;) to turn on the mon- itor and the cameras. 2. Set the DISPLAY MODE switch to ON. 3. Set the INPUT SELECT switch to VTR for observing the playback picture. Note: Sequential switching features an automatic bypass circuit that detects the presence of DC Automatic Reset function for Spot Monitor...
-
Page 13: Connections
1. These connections should be made by qualified service personnel or system installers. 2. Keep the power switches of the monitor, optional camera, and optional camera extension unit in the OFF position during the connection. Connection with camera Video Monitor WV-BM140 Camera CAMERA CAMERA... - Page 14 • Connect the camera extension cable from the camera TIMING SELECT: INT extension unit at the CAMERA EXTENSION IN connec- tor on the monitor. Video Monitor WV-BM140 • Up to 2 Camera Extension Units can be connected. ALARM CONTROL SPOT MONITOR CONTROL IN...
- Page 15 Connection with the VTR Note: Avoid the following connection if you want to monitor Video Monitor WV-BM140 the playback picture of a VTR. Video Monitor WV-BM140 CAMERA CAMERA EXTENSION IN CAMERA INPUT AUDIO AUDIO PLAY Time Lapse VTR VIDEO PLAY...
- Page 16 Connection with the Alarm Switch The following two modes can be selected for the Alarm Control Out terminals: STD BY: Alarm is activated in STD BY for DISPLAY MODE when SPOT CONTROL IN receives a signal from the intercom or an alarm sensor. ALL MODE: Alarm is activated regardless of the selected DISPLAY MODE when SPOT CONTROL IN receives a signal from the intercom or an alarm sensor.
-
Page 17: System Connection
Camera 4 Intercom 1 Setup Menu Settings for Monitor (B) are: TIMING SELECT Intercom 2 AUTO RESET Intercom 4 Intercom 3 Ground Video Monitor WV-BM140 ALARM CONTROL SPOT MONITOR CONTROL IN REMOTE OUT TIMING SELECT RECOVER STDBY MODE RESET TIMING SELECT IN... -
Page 18: Specifications
SPECIFICATIONS Power Source: 220 - 240V AC, 50 Hz Power Consumption: Approx. 63W Tube Size : 322 mm (12-11/16”) diagonal actual visual size 347 mm (13 - 11/16”) diagonal tube screen size Camera Input: 1.0 V[p-p]/75 , composite 4 (BNC) Playback Input: 1.0 V[p-p]/75 , composite 1 (BNC) - Page 19 Matsushita Electric Industrial Co., Ltd. Central P.O. Box 288, Osaka 530-91, Japan N0797-1060 YWV8QA4636BN Printed in Japan N 30 Gedruckt in Japan Imprimé au Japon Impreso en Japón...
