Dear customer
Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully.
Before connecting, operating or adjusting this product, please read the instructions completely.
Please keep this manual for future reference.
The illustrations shown may differ from your unit.
Region number
The player plays DVD-Video marked with labels containing the region number "2" or "ALL".
Example
2
ALL
Model number suffix "EB" denotes UK model.
[EB]
2
3
5
Operating Instructions
DVD Home Theater Sound System
SC-PT90
Model No.
RQTX1198-B
Advertisement
Table of Contents
Related Manuals for Panasonic SC-PT90
Summary of Contents for Panasonic SC-PT90
-
Page 1: Operating Instructions

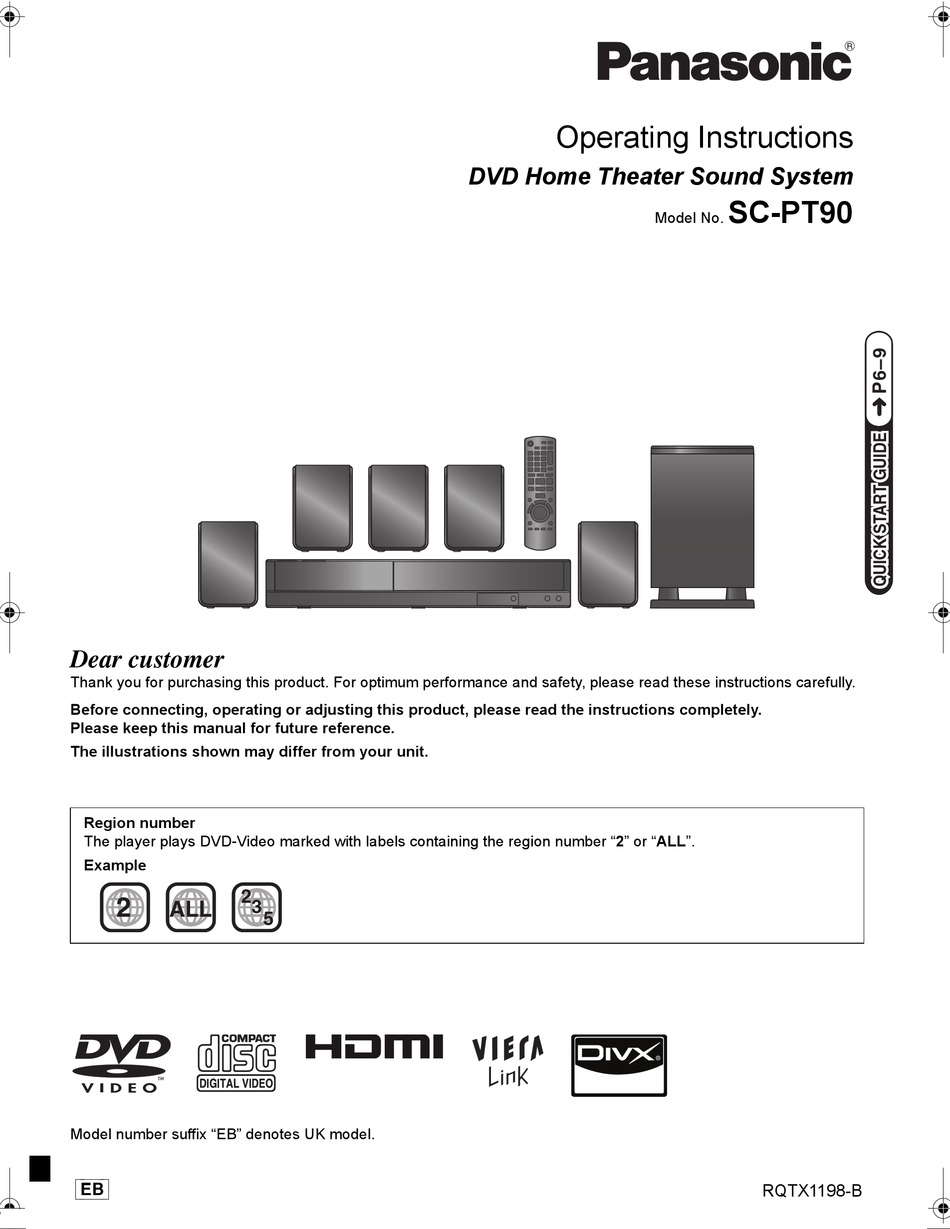

Operating Instructions DVD Home Theater Sound System SC-PT90 Model No. Dear customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully. Before connecting, operating or adjusting this product, please read the instructions completely. -
