ENGLISH VERSION We declare under our sole responsibility that the product to which Vi erklærer os eneansvarlige for, at dette produkt, som denne this declaration relates is in conformity with the standards or other deklaration omhandler, er i overensstemmelse med standarder eller normative documents following the provisions of Directives andre normative dokumenter i følge bestemmelserne i direktivene EEC/73/23 and EEC/89/336.
CONTENTS PREFACE ....................................2 FEATURES ....................................2 PRECAUTIONS ..................................3 MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS ....................4 Front View ..................................4 Rear View ..................................5 INSTALLATIONS ..................................6 DIP Switch Setting (On the Board) ........................... 6 DIP Switch Setting (On the Front Board) .......................... 7 Mounting in the Rack ...............................

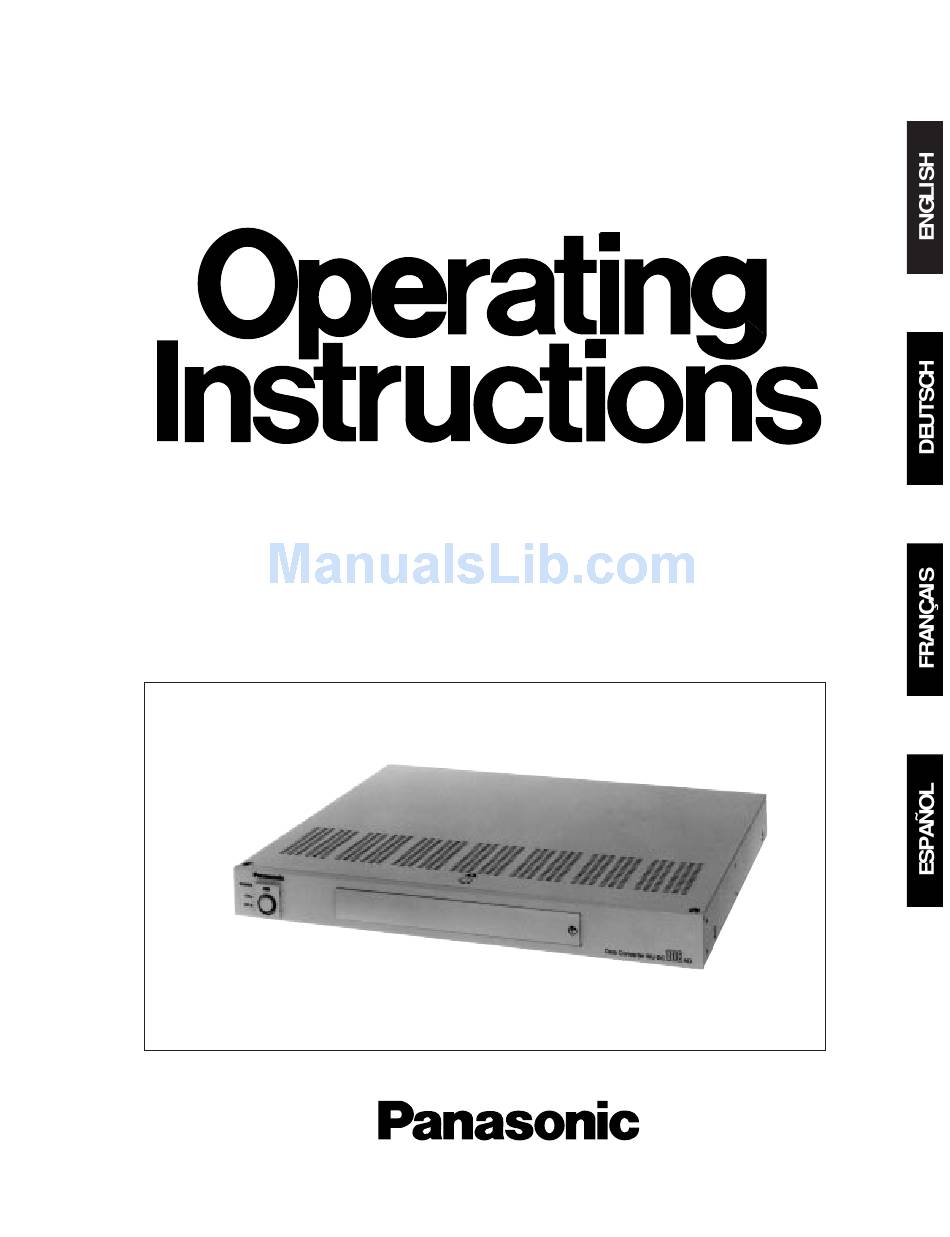

PREFACE The WJ-DC108AD Data Converter is designed to con- trol Panasonic cameras and auxiliary equipment by use of an AD (American Dynamics) controller. FEATURES The WJ-DC108AD Data Converter, when combined with the AD (American Dynamics) controller, enables control of the Panasonic cameras shown below.
PRECAUTIONS • Refer all work related to the installation of this • Do not expose the appliance to water or product to qualified service personnel or system moisture, nor try to operate it in wet areas. installers. Do take immediate action if the appliance becomes wet.
MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS Front View POWER SWITCH PROTECTER Data Converter WJ-DC 1. Power Switch (POWER ON/OFF) 2. RS485 Address Switches (RS485-1, RS485-2) This switch is used to turn the Data Converter power These switches are used to set the camera address- On or Off.
Rear View RS485 CODE CAMERA LINE SELECT DATA VS/VD TERM CAMERA VS/VD DATA (THRU) SIGNAL DATA 11. Camera Input Connector (CAMERA IN 1 - 8) 15. VS/VD Output Connector (VS/VD OUT) This connector accepts either a colour or B/W com- The internal VD (Vertical Drive) pulse or the looping- posite video signal from the camera.
INSTALLATIONS The installations described below should be made 4. Set the switches (SW902 and SW952) on the board by qualified service personnel or system installers. to choose the camera or receiver command for Coaxial cameras when the AUXILIARY key is pressed.
DIP Switch Setting (On the Front Board) Remove the switch cover by removing the screw on the front panel of the Data Converter shown below to expose the DIP switches. Remove screw POWER SWITCH PROTECTER Data Converter WJ-DC RS485 Camera Coax.
Mounting in the Rack 1. Remove the four rubber feet by removing the four screws from the bottom of the Data Converter. Remove four rubber feet. 2. Place the rack mounting brackets on both sides of the Data Converter and tighten them with the eight supplied screws (M3 X10).
SYSTEM CONNECTIONS An example of the basic system connection is shown below. • Data Line (High Speed Data Link) Connection Data Converter (No. 2) CODE RS485 CAMERA LINE SELECT DATA VS/VD TERM ON OFF DATA CAMERA VS/VD (THRU) SIGNAL DATA VS or VD Data Converter (No.
Page 12
• Code (Manchester Code) Connection Data Converter (No. 2) RS485 CODE CAMERA LINE SELECT DATA VS/VD TERM ON OFF CAMERA VS/VD DATA (THRU) SIGNAL DATA VS or VD Data Converter (No. 1) CODE RS485 CAMERA LINE SELECT DATA VS/VD TERM ON OFF CAMERA VS/VD...
CAMERA CAMERA To AD equipment Data Converter WJ-DC108AD Cautions: • The multiplexed camera site alarm, including motion detector, is not effective with the AD equipment. To prevent malfunction in the system, set the camera site alarm to the OFF position.
VS/VD TERM ON OFF CAMERA VS/VD DATA (THRU) SIGNAL DATA (REAR) Data Converter WJ-DC108AD CODE DATA VS/VD TERM ON OFF VS/VD DATA (THRU) DATA Set the Data / Code selector to the DATA position when using the DATA LINE to control the cameras.
CAMERAS 1 2 3 4 5 6 7 8 Si NONCC BWS BWSBWS BWS MONITORS 120V 60Hz KEYBOARDS RS232 PORTS (REAR) AD2350 Series Data Converter WJ-DC108AD CODE RS485 CAMERA LINE SELECT VS/VD DATA TERM ON OFF DATA CAMERA VS/VD (THRU)
1 on the selected monitor. The following functions are available only with cameras that have auto panning functions, such as the Panasonic WV-CS600 series and when the DIP switch is Controlling System Accessories set to CAM position.
Page 17
RC100 or WV-RC150 Receiver is included in the sys- that have the preset position function, such as the tem, and the DIP switch is set to RECV and WIP/DEF Panasonic WV-CS600 series and when the DIP switch positions. is set to CAM position.
Camera Setup 1. Select the desired camera referring to the Camera Selection. 2. Select 3 by pressing the Numeric key, then press the AUXILIARY ON key to display the Camera’s Setup Menu on the selected monitor. 3. Select an item by moving the joystick controller upward or downward.
SPECIFICATIONS Power Source: 220 - 240 V AC 50 Hz Power Consumption: Camera Input (1 - 8): 1.0 V[p-p] /75 composite video signal 0.5 V[p-p] /75 data signal and 2.5 V[p-p] /75 vertical timing pulse multi- plexed Camera Output (1 - 8): 1.0 V[p-p] /75 composite video signal VS/VD Input/Output:...
Page 36
Matsushita Electric Industrial Co., Ltd. Central P.O. Box 288, Osaka 530-91, Japan NM1098-0 YWV8QA4971AN Printed in Japan N 19 Gedruckt in Japan Imprimé au Japon Impreso en Japón...
