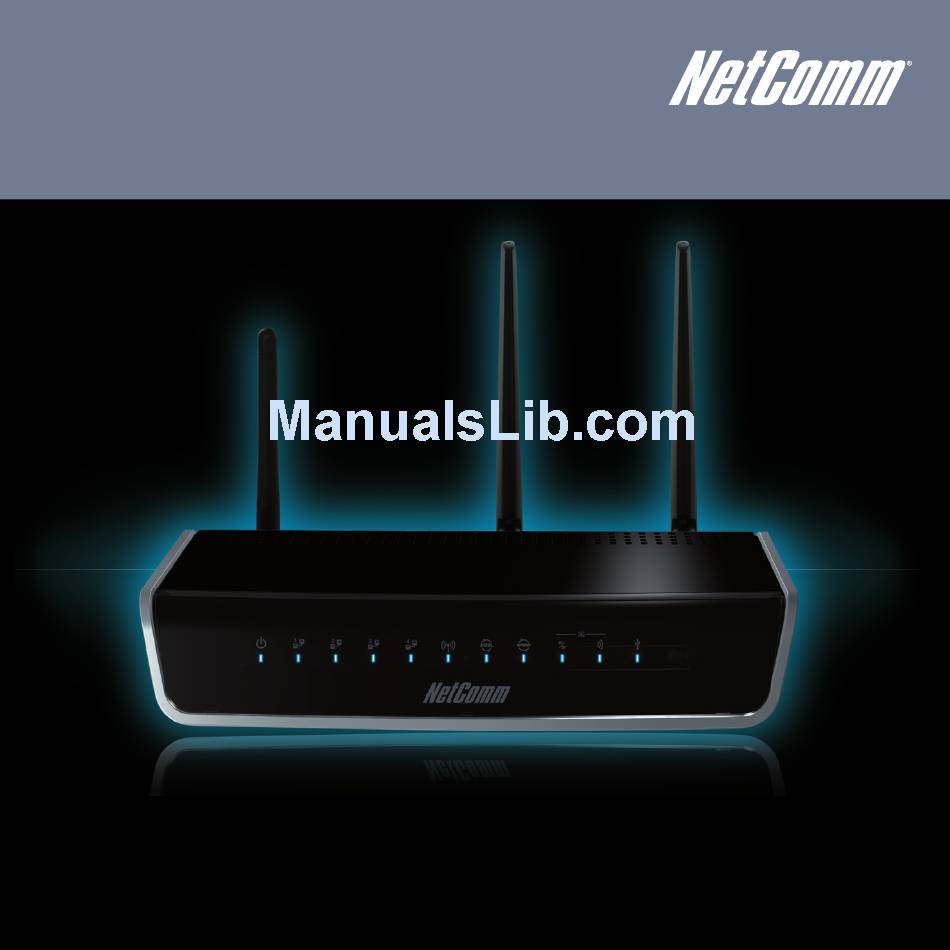

- Page 1 NETCOMM GATEWAY™ SERIES Dual ADSL2+ / 3G Wireless N Gateway 3G29WN2 Quick Start Guide...
-
Page 2: Connecting The Cables
Connecting the cables 1. Connect the supplied RJ-11 cable to the DSL port on the back of your device to the phone port that supplies your ADSL. 2. And/or, insert a compatible 3G SIM card into the USIM slot on the back of the device. -
Page 3: Login To The Web Interface
Login to the web interface 1. Open a web browser (Internet Explorer, Firefox and Safari), type 192.168.1.1 into the address bar and press Enter/Return. 2. At the login screen type admin into both the username and password fields. Then click OK. This will take you directly to the Quick Setup page. 3. - Page 4 Connecting with ADSL 1. From the Quick Setup page, select the ADSL only box and click Next. 2. Enter the user ID/Password on this screen as supplied by your ISP. 3. Click on Next to use these settings. 4. You will then be asked to enter additional setup details. This will be explained from Step 6.
- Page 5 Connecting with 3G 1. From the Quick Setup page, select the 3G only box and click Next. 2. Compatible modems will be auto detected: This information can be seen at the top of the page. 3. Select the APN from the drop down box as supplied by your 3G ISP provider. 4.
- Page 6 Configuring 3G backup 1. Select the ADSL with 3G backup box and click Next. 2. Follow the instructions listed previously for both ADSL and 3G to set up both connections. 3. Ensure the Enable 3G Backup box is checked and enter your desired backup settings.
- Page 7 Wireless Quick Setup 1. The default settings already appear on the wireless quick setup page. 2. You can enable/disable the wireless signal. 3. You can change your wireless SSID. If you do, be sure to remember the new name or write it down so you know what network to connect to. 4.
-
Page 8: Usb Storage
USB Storage 1. If a USB device is plugged into the USB port, it will be auto detected and you will have the choice to Enable USB storage. 2. If you enable USB storage you will be shown the Netbios and Directory name. You can change these to anything you want. -
Page 9: Usb Print Server
USB Print Server 1. If a USB device is plugged into the USB port, it will be auto detected and you will have the choice to Enable on-board print server. 2. If you enable the device to work as a print server you will be asked to enter the printer name and make and model. - Page 10 Passwords 1. On this page you can change the passwords for the different levels of users. We recommend that you prevent any unauthorised access to your admin settings by changing the password. Remember to write any new passwords down so you can access them anytime in the future.
-
Page 11: Establishing A Wireless Connection
Establishing a Wireless Connection 300Mbps Wireless Link You can connect multiple wireless devices, including laptops, desktops and PDA’s to your router by following these two basic steps. 1. Using your wireless device, scan the wireless networks in your area and select the wireless network name listed on the included Wireless Security Card and then click connect. -
Page 12: Troubleshooting
Troubleshooting Cannot establish a wireless connection • Make sure the wireless switch on your laptop is in the on position. • Ensure your device and wireless adapter are using the same wireless security settings. • Make sure you are trying to connect to the correct SSID with the correct security key. - Page 13 Cannot establish a 3G Connection • Ensure you are using an active 3G SIM card. • Ensure you have entered the correct APN setting supplied by your 3G ISP. Cannot access the Web UI • If you have changed your username/password and forgotten them you will need to reset your router to the factory default settings and use the default settings admin/admin How to reset your router to the factory default settings...
