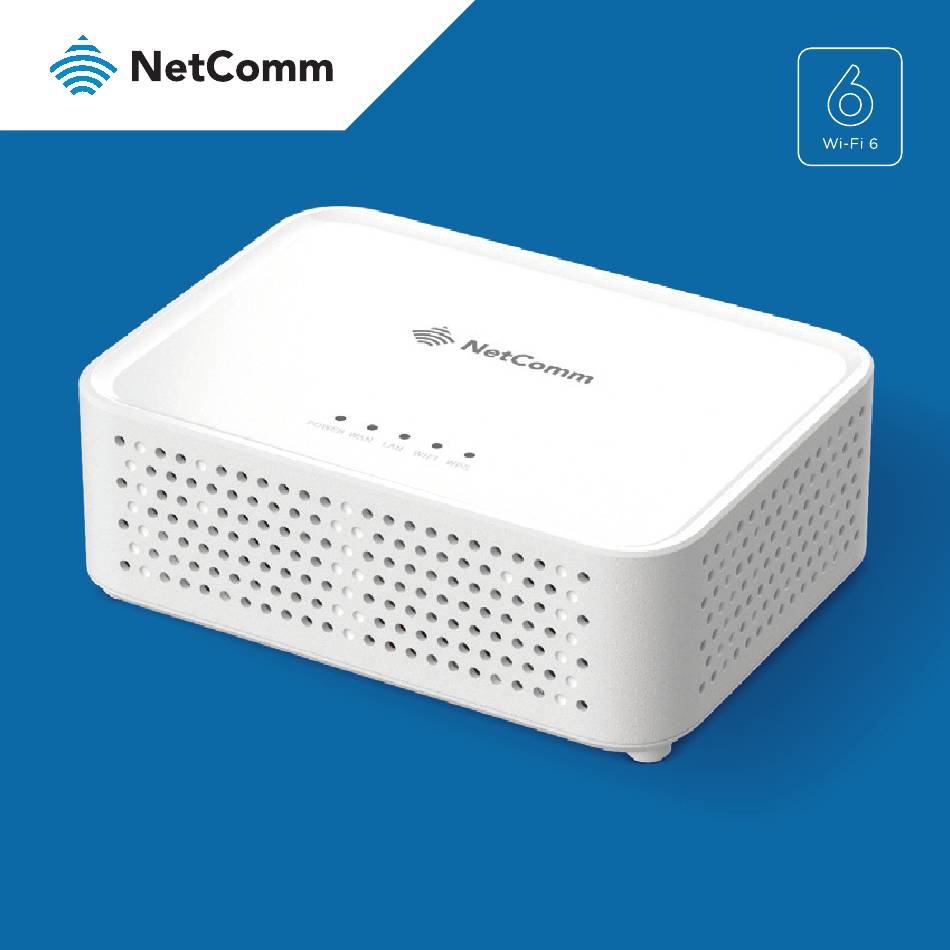

- Page 1 Wi-Fi 6 Gateway CF40MESH INTELLIGENT WI-FI 6...
-
Page 2: Getting Started
PRE-CONFIGURED? If you received your gateway from your service provider and they have provided you with their own instructions, refer to those to complete the setup. In some cases, the gateway has been pre-configured for you and is ready to use. Otherwise, you will need to complete the setup yourself. -
Page 3: Before You Begin
BEFORE YOU BEGIN Ensure that you have the following information from your service provider: - How your Internet service will physically connect to your gateway - The Settings specific to your type of service. There are two primary ways to connect your gateway to the Internet service: Ethernet WAN This is the most common access type in Australia and New Zealand... - Page 4 Wi-Fi 6 Gateway Power outlet Power adaptor...
- Page 5 IF YOU’RE CONNECTING WITH AN NBN™/UFB PLAN Your nbn™/UFB retail service provider will contact you when your service is activated. You can set up your gateway before this time, if you have the required nbn™/UFB hardware. Once your service is activated, it’s time to complete the set-up of your Wi-Fi 6 Gateway.
- Page 6 Wi-Fi 6 Gateway Power adaptor Ethernet cable...
- Page 7 HYBRID FIBRE COAXIAL (HFC) Power outlet Power adaptor nbn™ connection box Ethernet cable The Ethernet cable connects to the UNI-D port on the nbn™ connection box.
- Page 8 Wi-Fi 6 Gateway Power adaptor Ethernet cable...
- Page 9 FIBRE TO THE PREMISES (FTTP) Power outlet Power adaptor nbn™ connection box The Ethernet cable connects to the UNI-D port on the nbn™ connection box. Ethernet cable...
- Page 10 Wi-Fi 6 Gateway Power adaptor Wait for the lights on the nbn™ connection box to turn blue (this may take up to 15 minutes) and then connect your Ethernet cable Wi-Fi 6 Gateway...
- Page 11 FIBRE TO THE CURB (FTTC) Power outlet Power adaptor nbn™ connection box The Ethernet cable connects to the UNI-D port on the nbn™ connection box. Ethernet cable...
- Page 12 Wi-Fi 6 Gateway Power adaptor Ethernet Cable...
- Page 13 FIBRE TO THE NODE (FTTN) AND FIBRE TO THE BUILDING (FTTB) CONNECTIONS Power outlet DSL Box Telephone wall plate (Optional accessory) Telephone cable...
-
Page 14: Connecting With Wifi
Wi-Fi 6 Gateway Power button CONNECTING WITH WIFI Turn on the Wi-Fi Gateway. Wait a few minutes for it to start up. Type the Wi-Fi Network Name and Wi-Fi Password on the Wi-Fi Security Card into your wireless device when connecting or scan the QR code. - Page 15 TYPE The Wi-Fi Network Name and Wi-Fi Password are case sensitive. SCAN...
-
Page 17: Configuring Your Gateway
CONFIGURING YOUR GATEWAY To complete the setup, you will need the following information from your service provider: - Connection type (PPPoE/Dynamic IP/Static IP) - Other specifics depending on your connection type including VLAN Tag, WAN IP Address, Subnet Mask and DNS Servers When you have the necessary information, follow these steps: Push the power button on the back of the Wi-Fi Gateway to turn it on. - Page 18 NetComm Wireless Limited is part of Casa Systems, Inc. Casa Systems, the future of NetComm ANZ HEAD OFFICE SYDNEY Casa Systems Inc. 18-20 Orion Road, Lane Cove NSW 2066, Sydney Australia +61 2 9424 2070 www.netcomm.com CORPORATE HEADQUARTERS ANDOVER Casa Systems Inc.
