Brookstone i-Convert Instruction Manual

Brookstone i-Convert Instruction Manual

Portable document and photo scanner
Hide thumbs Also See for i-Convert:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Quick Manual

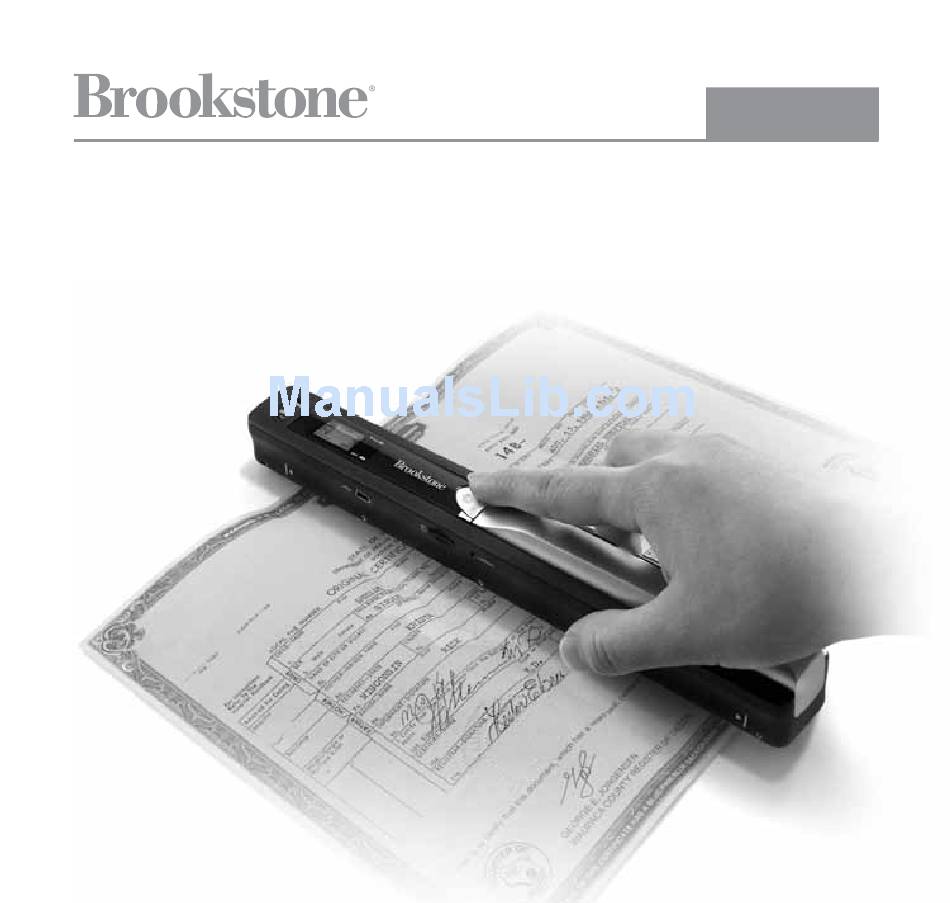

i-Convert
®
Portable Document
and Photo Scanner
ScaN receIPtS, letterS, recIPeS,
PHOtOS aNd mOre

Advertisement

Table of Contents
loading

Related Manuals for Brookstone i-Convert

Summary of Contents for Brookstone i-Convert

  • Page 1 ® Portable Document and Photo Scanner ScaN receIPtS, letterS, recIPeS, PHOtOS aNd mOre...

  • Page 2: Table Of Contents

    Table of conTenTs Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Location of Parts and Controls .
  • Page 3 baTTeRY PRecaUTIons • Dispose of the old batteries properly . Do not dispose of the old batteries in a fire . • Do not leave the batteries where a child or pet could play with or swallow them . If the batteries are swallowed, contact a physician immediately . •...

  • Page 4: Location Of Parts And Controls

    locaTIon of PaRTs and conTRols Battery Door Scan LED Indicator Power/Scan Button Time Set Button Error LED Indicator USB Port LCD Screen 10 . microSD Card Slot DPI Resolution Button 11 . Format Button C/BW Button 12 . Scan Guides...

  • Page 5: Lcd Screen Icons

    lcd scReen Icons Selected Effect Indicator (Color/Mono [Black and White]) microSD Card Indicator Battery Indicator Selected Resolution Indicator (High 600dpi/Low 300dpi) Scan Count/Time/Date Indicator InclUded accessoRIes Scanner 4 . Mini USB Cable 2 . White Balance Calibration Sheet 5 . Software CD 3 .

  • Page 6: Installing The Battery

    InsTallIng The baTTeRY Slide open and remove the BATTERY DOOR and insert 2 AA alkaline batteries according to the polarity indicators inside the compartment . 2 . Replace the BATTERY DOOR and slide closed . Note: the BatterY INdIcatOr on the led screen will reveal if the batteries need to be replaced.

  • Page 7: Calibrating The Scanner

    calIbRaTIng The scanneR Place the Scanner on the White Balance Calibration Sheet and press the POWER/SCAN button for two seconds to turn the unit on . 2 . Press and hold the C/BW button . While holding the C/BW button, press the POWER/SCAN button once to enter into auto-calibration mode .

  • Page 8: Setting The Time And Date

    seTTIng The TIme and daTe 1 . Turn the Scanner on by pressing the POWER/SCAN button for two seconds . 2 . Using a thin, blunt object, such as a paper clip, press the TIME/SET button on the scanner . 3 .

  • Page 9: Setting The Scan Mode

    seTTIng The scan mode 1 . Turn the Scanner on by pressing the POWER/SCAN button for two seconds . 2 . By pressing the C/BW button, you may choose between Color and Mono . 3 . The Color or Mono icon will be displayed on the LCD screen to reflect your choice .

  • Page 10: Viewing Your Scans

    vIewIng YoUR scans Connect the mini USB to the Scanner and then to a USB 2 . 0 port on your computer . 2 . Press the POWER/SCAN button on the scanner for two seconds to turn it on . 3 .
  • Page 11 ® Connect the scanner to your Mac via the USB cable . 2 . Power the scanner on . 3 . Locate and open the scanner’s microSD folder on your desktop . Note: Ignore iPhoto or Image capture if they appear automatically. 4 .

  • Page 12: Editing And Saving After Scanning

    edITIng and savIng afTeR scannIng You may edit and save your scans using the included software (Windows PC only) . ® Load the included software CD into your CD/DVD-ROM drive . The installation program should launch automatically . 2 . Follow the on-screen instructions to install the software on your computer . Note: If the installation program is not launched automatically, double-click the setup.exe file located on the cd-rOm.

  • Page 13: Specifications

    sPecIfIcaTIons Image Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Letter Size Color Contact Image Sensor Number of Sensor .
  • Page 14 sPecIfIcaTIons (conTInUed) LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Scanning Status Display Auto Power Off .

  • Page 15: Computer System Minimum Requirements

    comPUTeR sYsTem mInImUm ReqUIRemenTs Computer Requirements . . . . . . . . . . . . . . . . . . . . . . . . . PC with Windows XP SP2/ ®...

  • Page 16: Troubleshooting

    TRoUbleshooTIng PrOBlem POSSIBle cauSe SOlutION Low battery or the Replace or install Cannot turn on battery was not the battery properly . the scanner . installed properly . Insert a microSD card . The microSD card has Pictures cannot be Download the pictures already not been inserted or saved when you are...
  • Page 17 TRoUbleshooTIng POSSIBle cauSe PrOBlem SOlutION Clean the lens with a soft, Blurry images . The lens of the scanner dry cloth and try scanning is dirty, or the scanner again with a steadier motion . is not being held still while scanning .

  • Page 18: Warranty

    (“Warranty Period”) . If a defect arises and a valid claim is received within the Warranty Period, at its option, Brookstone will either 1) repair the defect at no charge, using new or refurbished replacement parts, or 2) replace the product with a new product that is at least functionally equivalent to the original product, or 3) provide a store credit in the amount of the purchase price of the original product .
  • Page 19 Brookstone, in so far as permitted by law, provides these products “as is . ” This warranty does not apply to: a) damage caused by failure to follow instructions relating to product’s use or the installation of components; b) damage caused by accident, abuse, misuse, fire, floods, earthquake or other external causes;...
  • Page 20 Merrimack, New Hampshire USA 03054 • 800-846-3000 • www.Brookstone.com 653782...
