I Power steering fluid reservoir. See Power Steering Fluid Check (page 220).
J Engine coolant reservoir. See Engine Coolant Check (page 219).
1
The filler caps and the engine oil dipstick are coloured for easy identification.
UNDER BONNET OVERVIEW - 1.6L DURATORQ-TDCI (DV) DIESEL
J
E135199

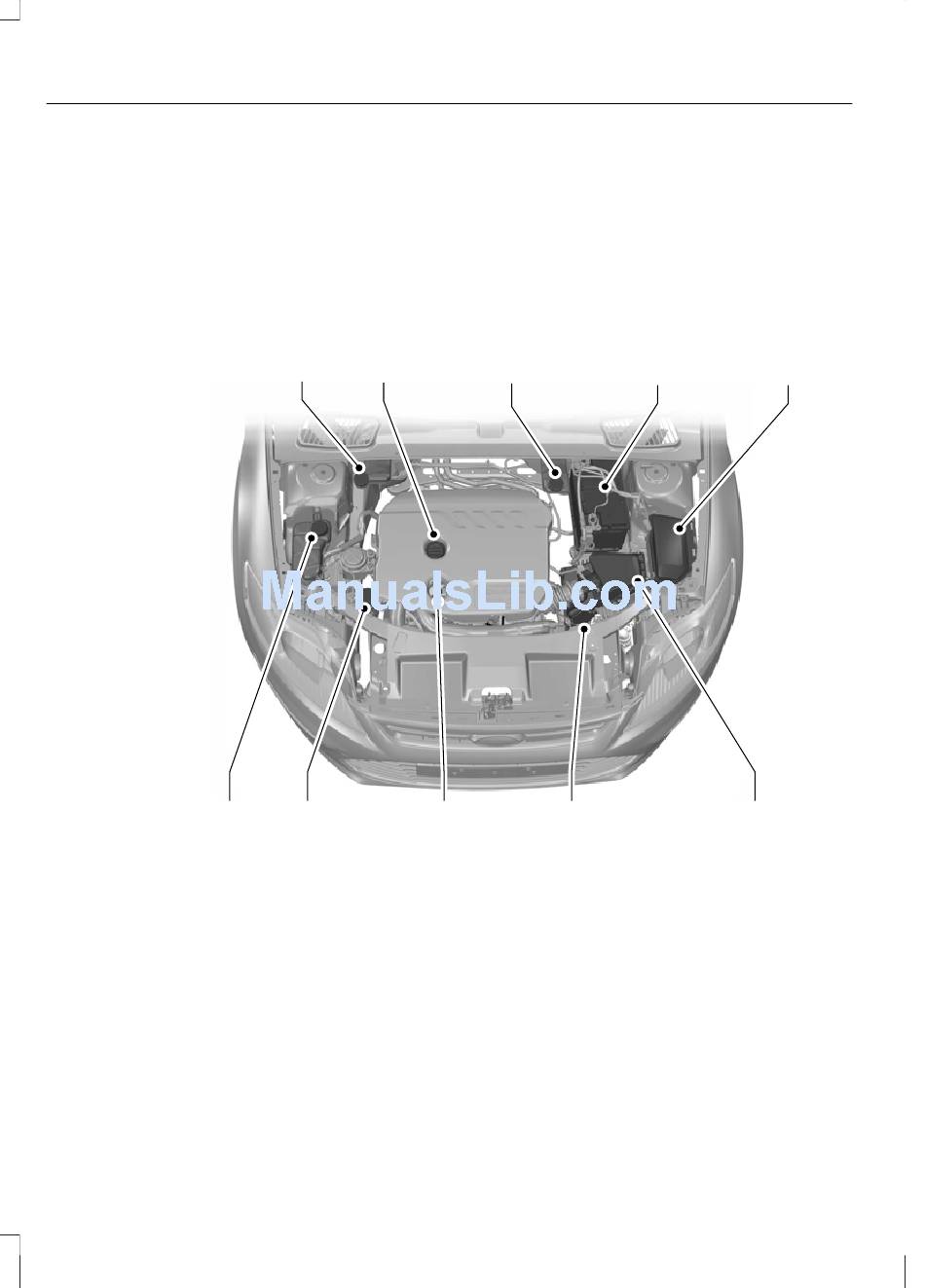

A Brake and clutch fluid reservoir (right-hand drive). See Brake and Clutch Fluid
Check (page 220).
B Engine oil filler cap
C Brake and clutch fluid reservoir (left-hand drive). See Brake and Clutch Fluid
Check (page 220).
D Battery. See Vehicle battery (page 226).
E Engine compartment fuse box. See Fuses (page 193).
F Air cleaner. No maintenance necessary.
G Screen washer fluid reservoir. See Washer Fluid Check (page 221).
Maintenance
A
B
I H
1
. See Engine Oil Check (page 219).
