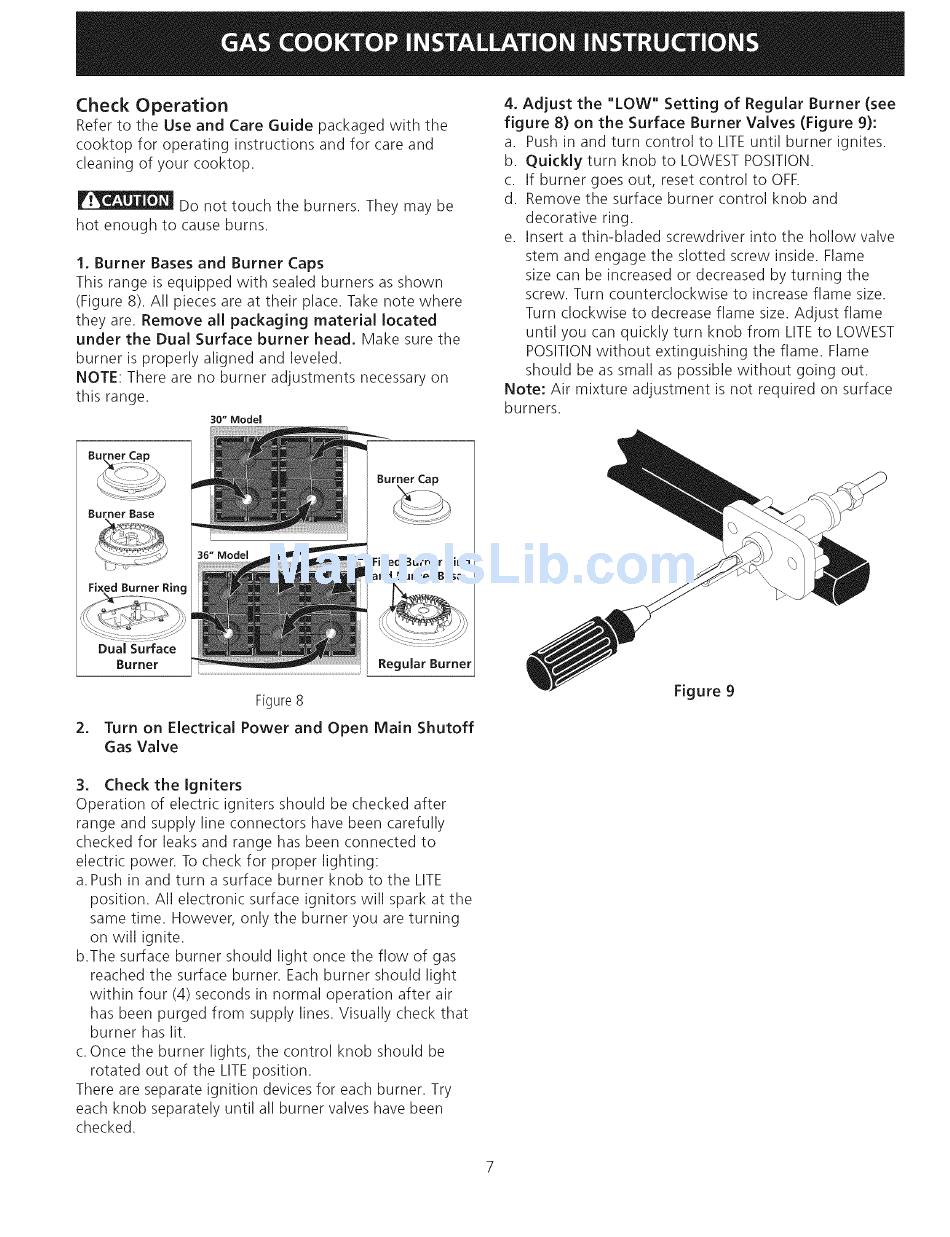

Check Operation
Refer t o theUseandCareGuidepackaged w iththe
cooktop foroperating instructions andforcareand
cleaning ofyourcooktop.
Donottouchthe burners. They maybe
hot enough to cause burns.
1, BurnerBases andBurnerCaps
This range is equipped w ith sealed burners asshown
(Figure 8).All pieces a reattheirplace. T ake notewhere
theyare.Remove all packagingmateriallocated
underthe DualSurfaceburner head,Makesurethe
burner is properly a ligned andleveled.
NOTE: There arenoburner adjustments necessary on
thisrange.
30" Model
4. Adjust the "LOW" Setting of Regular Burner (see
figure 8) on the Surface Burner Valves (Figure 9):
a. Push in and turn control to LITE until burner ignites.
b. Quickly turn knob to LOWEST POSITION.
c. If burner goes out, reset control to OFF.
d. Remove the surface burner control knob and
decorative ring.
e. Insert a thin-bladed screwdriver into the hollow valve
stem and engage the slotted screw inside. Flame
size can be increased or decreased by turning the
screw. Turn counterclockwise to increase flame size.
Turn clockwise to decrease flame size. Adjust flame
until you can quickly turn knob from LITE to LOWEST
POSITION without extinguishing the flame. Flame
should be as small as possible without going out.
Note: Air mixture adjustment is not required on surface
burners.
Bur_er Cap
Fixed Burner Ring
Dual Surface
Burner
Burner Cap
Fixed Burner Ring
and Burner Base
Regular Burner
Figure8
2. Turn on Electrical Power and Open Main Shutoff
Gas Valve
Figure 9
3. Check the Igniters
Operation of electric igniters should be checked after
range and supply line connectors have been carefully
checked for leaks and range has been connected to
electric power. To check for proper lighting:
a. Push in and turn a surface burner knob to the LITE
position. All electronic surface ignitors will spark at the
same time. However, only the burner you are turning
on will ignite.
b.The surface burner should light once the flow of gas
reached the surface burner. Each burner should light
within four (4) seconds in normal operation after air
has been purged from supply lines. Visually check that
burner has lit.
c. Once the burner lights, the control knob should be
rotated out of the LITE position.
There are separate ignition devices for each burner. Try
each knob separately until all burner valves have been
checked.
