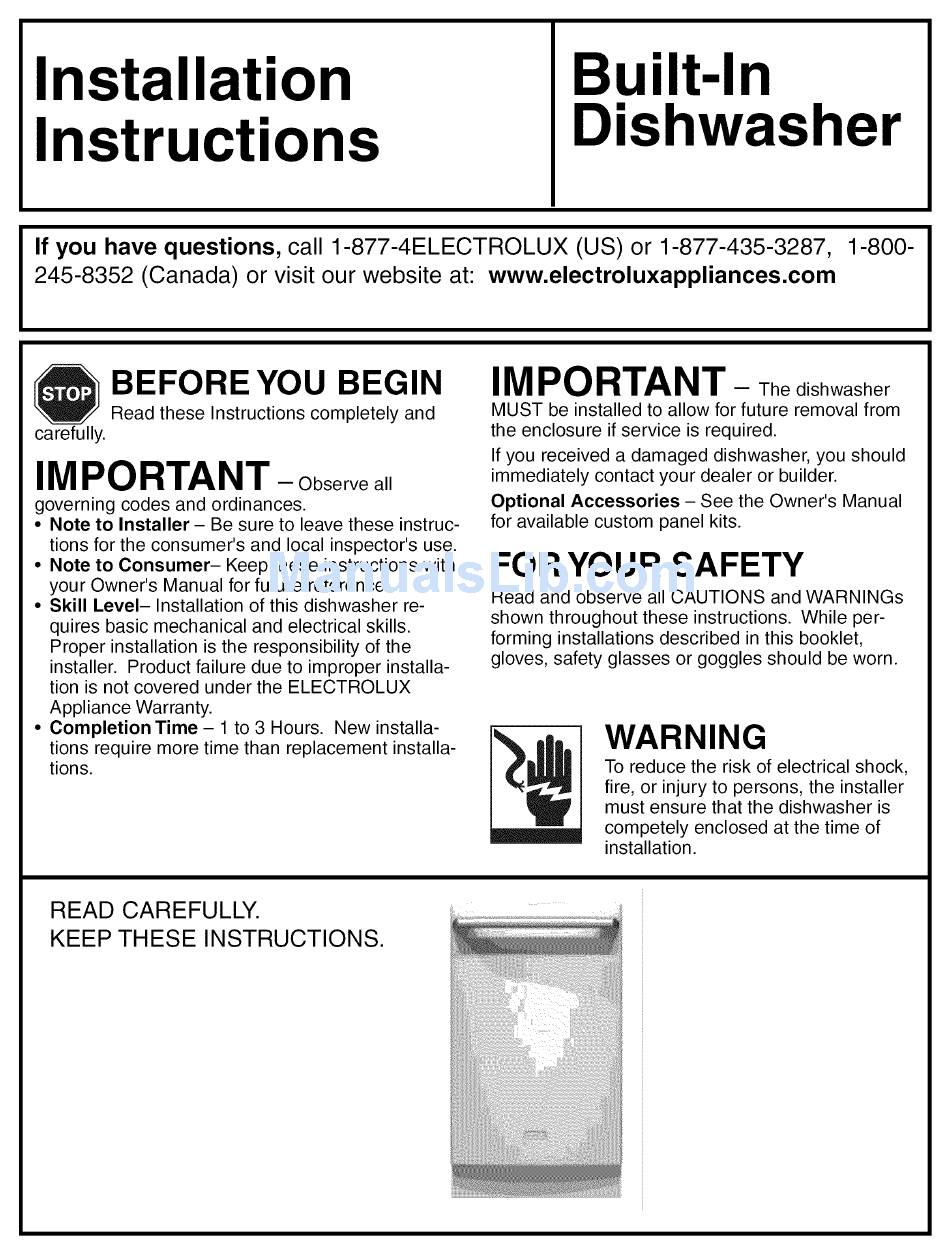

Use and Care Manual
Installation
Instructions
Built-In
Dishwasher
If you have questions,
call 1-877-4ELECTROLUX
(US) or 1-877-435-3287,
1-800-
245-8352 (Canada) or visit our website at: www.electroluxappliances.com
BEFORE YOU BEGIN
Read these Instructions
completely
and
carefully.
IMPORTANT
--Observe
all
governing
codes and ordinances.
• Note to Installer
- Be sure to leave these instruc-
tions for the consumer's
and local inspector's
use.
• Note to Consumer-
Keep these instructions
with
your Owner's
Manual
for future reference.
• Skill
Level-
Installation
of this dishwasher
re-
quires basic mechanical
and electrical
skills.
Proper installation
is the responsibility
of the
installer.
Product failure due to improper
installa-
tion is not covered
under the ELECTROLUX
Appliance
Warranty.
• Completion
Time - 1 to 3 Hours.
New installa-
tions require more time than replacement
installa-
tions.
IMPORTANT - The
dishwasher
MUST be installed
to allow for future removal from
the enclosure
if service
is required.
If you received
a damaged
dishwasher,
you should
immediately
contact your dealer or builder.
Optional
Accessories
- See the Owner's
Manual
for available
custom
panel kits.
FOR YOUR SAFETY
Read and observe
all CAUTIONS
and WARNINGs
shown throughout
these instructions.
While per-
forming
installations
described
in this booklet,
gloves, safety glasses
or goggles
should
be worn.
WARNING
To reduce the risk of electrical
shock,
fire, or injury to persons,
the installer
must ensure
that the dishwasher
is
competely
enclosed
at the time of
installation.
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.
Advertisement
Table of Contents
Related Manuals for Electrolux EIDW1805KS0A
Summary of Contents for Electrolux EIDW1805KS0A
- Page 1 Product failure due to improper installa- tion is not covered under the ELECTROLUX Appliance Warranty. WARNING • Completion Time - 1 to 3 Hours. New installa- tions require more time than replacement installa- tions.
- Page 2 Installation Preparation PARTS SUPPLIED [] Two #8 Phillips flat head wood screws, 5/8" long to secure dishwasher to underside of countertop (in literature package). [] Two Phillips head, color matched toekick screws 2 Wood 2 Color Matched Screw Type (in literature package). Screws Toekick Screws Hose Clamp...
-
Page 3: Prepare Dishwasher
Installation Preparation PREPARE DISHWASHER ENCLOSURE hose is no more than 10 feet in length for proper drainage. • The dishwasher must be fully enclosed on the top, sides and back, and must not support any part of the enclosure Clearance: When installed into a corner, allow 2"... - Page 4 Installation Preparation PREPARE ELECTRICAL WIRING WARNING FOR PERSONAL SAFETY: move house fuse or open circuit breaker before beginning installa- tion. Do no use an extension cord or adapter plus witthis appliance. ELECTRICAL REQUIREMENTS: • This appliance must be supplied with 120V, 60Hz., and connected to an individual properly...
-
Page 5: Prepare Hot Water Line
Installation Instructions PREPARE HOT WATER LINE BEFORE YOU BEGIN • The line may enter from either side, rear or floor within the shaded area shown in Figure R Locate and set aside the package • The line may pass throughthe same hole as the containing 2 Phillips head countertop... -
Page 6: Step 2 ] Adjust Leveling Legs
Installation Instructions _STEP 2 ] ADJUST LEVELING STEP 4 INSTALL 90 ° ELBOW LEGS • Wrap 90 ° elbow with thread seal tape. • Install a 90 ° elbow onto the water valve. • Move the dishwasher close to the installation •... - Page 7 Installation Instructions ISTEP 5 POSITION WATER LIND ISTEP 7 SLIDE DISHWASHER PAR- AND HOUSE WIRING TIALLY INTO CABINET DO NOT PUSH AGAINST FRONT PANELWITH • Position water supply line and house wiring on KNEES. DAMAGE WILL OCCUR. the floor of the opening to avoid interference with base of dishwasher and components...
-
Page 8: Step 9 Level Dishwasher
Installation Instructions STEP 8 POSTION DISHWASHER UNDER COUNTERTOP • Check to be sure that wires are secure under the dishwasher and not pinced or in contact with door springs or other dishwasher compo- nents TIP: Check tub insulation blanket, if equipped. should be positioned so it is not bunched... - Page 9 Installation Instructions [STEP 10 ]SECURE DISHWASHER STEP 11 CONNECT WATER SUPPLY TO COUNTERTOP OR CABINET Connect water supply to 90 ° elbow. In this step you will need the 2 Phillips special • Slide compression nut, then ferrule over end of head screws set aside prior to Step 1.
-
Page 10: Connect Drain Line
Installation Instructions STEP 12 CONNECT DRAIN LINE DRAIN LINE INSTALLATION FOLLOW ALL LOCAL CODES AND ORDINANCES • Connect drain line to air gap, waste tee or dis- poser using either previously determined method. The drain hose molded end will fit 5/8", 3/4" or 1" diameter connections on the air gap, waste tee or... -
Page 11: Pre-Test Checklist
Installation Instructions STEP13 CONNECT POWER ISTEP 14 PRE-TEST CHECKLIST SUPPLY Review this list after installing your dishwasher avoid charges for a service call that is not covered Skip this step if equipped with power cord. Verify by your warranty: that power is turned off at the source. [] Check to be sure power is OFE •... -
Page 12: Step 15 Dishwasher Wettest
Installation Instructions STEP 15 DISHWASHER WETTEST STEP 16 REPLACETOEKICK [] Turn on power supply (or plug power cord into outlet, if equipped). [] Turn dial to Normal "Wash" position. [] Close door. [] Check to be sure that water enters the dishwasher. If water does not enter the dishwasher, check to be sure that water and power are turned on.
