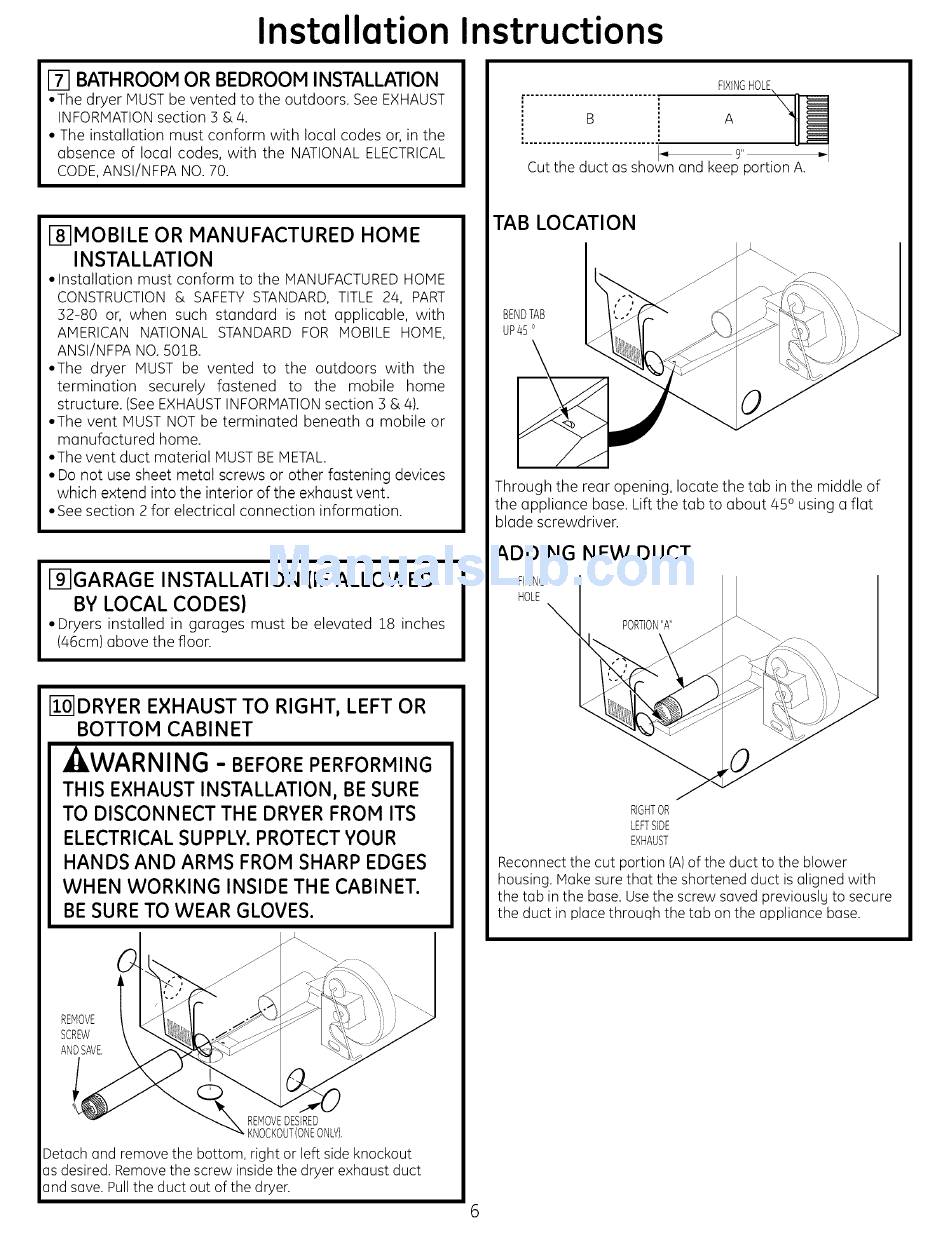

I-_ BATHROOM OR BEDROOM INSTALLATION
• The dryer MUST be vented to the outdoors.
See EXHAUST
INFORMATION section :3& 4.
• The installation
must conform
with local codes or, in the
absence
of local codes, with the NATIONAL ELECTRICAL
CODE, ANSI/NFPA NO. 70.
F-_MOBILE OR MANUFACTURED
HOME
INSTALLATION
• Installation
must conform
to the MANUFACTURED HOME
CONSTRUCTION
& SAFETY STANDARD, TITLE 24, PART
:32-80 or, when
such standard
is not applicable,
with
AMERICAN
NATIONAL STANDARD FOR MOBILE HOME,
ANSI/NFPA NO. 501B.
• The dryer
MUST be vented
to the
outdoors
with
the
termination
securely
fastened
to
the
mobile
home
structure.
(See EXHAUST INFORMATION section :3 & 4).
• The vent MUST NOT be terminated
beneath
a mobile
or
manufactured
home.
• The vent duct material
MUST BE METAL.
• Do not use sheet metal screws or other fastening
devices
which extend into the interior of the exhaust vent.
• See section 2 for electrical
connection
information.
19IGARAGE INSTALLATION (IF ALLOWED
BY LOCAL CODES)
• Dryers installed
in garages
must be elevated
18 inches
(46cm) above the floor.
I1-O1DRYER EXHAUST TO RIGHT, LEFT OR
BOTTOM CABINET
, WARNING
- BEFOREPERFORMING
THIS EXHAUST INSTALLATION, BE SURE
TO DISCONNECT THE DRYER FROM ITS
ELECTRICAL SUPPLY. PROTECT YOUR
HANDS AND ARMS FROM SHARP EDGES
WHEN WORKING INSIDE THE CABINET.
BE SURE TO WEAR GLOVES.
REMOVE
SCREW
ANDSAVE.
REMOVE
DESIRED
KNOCKOUT
(ONE O NLY).
Detach and remove the bottom, right or left side knockout
as desired. Remove the screw inside the dryer exhaust duct
and save. Pull the duct out of the dryer.
B
A
I_
9"
=1
Cut the duct as shown and keep portion A.
TAB LOCATION
BEND TAB
UP45 o
Through the rear opening, locate the tab in the middle of
the appliance base. Lift the tab to about 450 using a flat
blade screwdriver.
ADDING
NEW DUCT
FIXING
HOLE
PORTION
"A"
RIGHT O R
LEFT S IDE
EXHAUST
Reconnect the cut portion (A) of the duct to the blower
housing. Make sure that the shortened duct is aligned with
the tab in the base. Use the screw saved previouslg to secure
the duct in place throuqh the tab on the appliance base.
