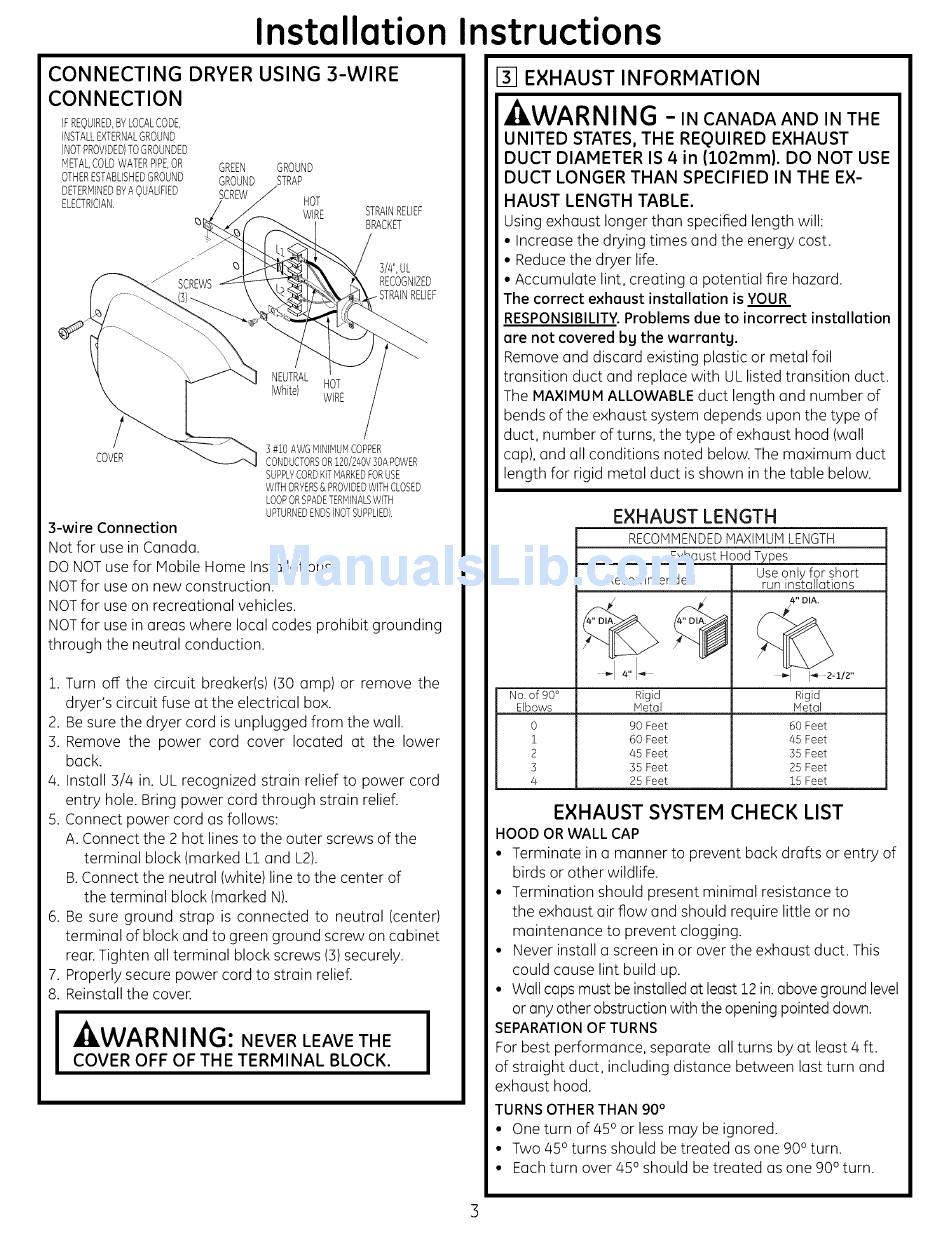

Installation
Instructions
CONNECTING
DRYER USING 3-WIRE
CONNECTION
IFREQUIRED,
BYLOCAL CODE,
INSTALL
EXTERNAL
GROUND
(NOT P ROVIDED)TO
GROUNDED
METAL, COLD W ATER PIPE, OR
GREEN
GROUND
OTHER ESTABLISHED
GROUND
GROUND STRAP
DETERMINED
BYAQUALIFIED
SCREW
ELECTRICIAN.
HOT
WiRE
STRAIN R ELIEF
q)
BRACKET
3/#',UL
RECOGNIZED
NEUTRAL
(White)
HOT
WIRE
] #10 AWGMINIMUM COPPER
COVER
CONDUCTORS
OR120/240V ]0A POWER
SUPPLY CORD KITMARKED F OR USE
WITH DRYERS & PROVIDED
WITH CLOSED
LOOP ORSPADE TERMINALS
WITH
UPTURNED
ENDS (NOT SUPPLIED).
s-wire Connection
Not for use in Canada.
DO NOT use for Mobile Home Installations.
NOTfor use on new construction.
NOTfor use on recreational vehicles.
NOTfor use in areas where local codes prohibit grounding
through the neutral conduction.
1. Turn off the circuit breaker(s) (30 amp) or remove the
dryer's circuit fuse at the electrical box.
2. Be sure the dryer cord is unplugged from the wall.
3. Remove the power cord cover located at the lower
back.
4. Install 3//4 in. UL recognized strain relief to power cord
entry hole. Bring power cord through strain relief.
5. Connect power cord as follows:
A. Connect the 2 hot lines to the outer screws of the
terminal block (marked L1 and L2).
B.Connect the neutral (white) line to the center of
the terminal block (marked N).
6. Be sure ground strap is connected to neutral (center)
terminal of block and to green ground screw on cabinet
rear. Tighten all terminal block screws (3) securely.
7. Properly secure power cord to strain relief.
8. Reinstall the cover.
I
ILWARNING:
NEVER LEAVE THE
I
COVER OFF OF THE TERMINAL
BLOCK.
[]
EXHAUST INFORMATION
- WARNING
-IN CANADA AND INTHE
UNITED
STATES, THE REQUIRED
EXHAUST
DUCT DIAMETER
IS 4in
(102ram).
DO NOT USE
DUCT LONGER THAN SPECIFIED IN THE EX-
HAUST LENGTH TABLE.
Using exhaust longer than specified length will:
• Increase the drying times and the energy cost.
• Reduce the dryer life.
• Accumulate lint, creating a potential fire hazard.
The correct exhaust installation is YOUR
RESPONSIBILITY. P roblems due to incorrect installation
are not covered by the warranty.
Remove and discard existing plastic or metal foil
transition duct and replace with UL listed transition duct.
The MAXIMUM ALLOWABLE duct length and number of
bends of the exhaust system depends upon the type of
duct, number of turns, the type of exhaust hood (wall
cap), and all conditions noted below. The maximum duct
length for rigid metal duct is shown in the table below.
EXHAUST LENGTH
RECOMMENDED MAXIHUM LENGTH
Exhaust Hood Types
Useonly for short
Recommended
run installations
No, of 90°
Rigid
Elbows
Metal
0
90 Feet
1
60 Feet
2
45 Feet
3
35 Feet
4
25 Feet
4" DIA.
Rigid
Metal
60 Feet
45 Feet
35 Feet
25 Feet
15 Feet
EXHAUST SYSTEM CHECK LIST
HOOD OR WALL CAP
• Terminate in a manner to prevent back drafts or entry of
birds or other wildlife.
• Termination should present minimal resistance to
the exhaust air flow and should require little or no
maintenance to prevent clogging.
• Never install a screen in or over the exhaust duct. This
could cause lint build up.
• Wall caps must be installed at least 12 in. above ground level
or any other obstruction with the opening pointed down.
SEPARATIONOF TURNS
For best performance, separate all turns by at least 4 ft.
of straight duct, including distance between last turn and
exhaust hood.
TURNS OTHERTHAN 90 °
• One turn of 45 o or less may be ignored.
• Two 450 turns should be treated as one 900 turn.
• Each turn over 450 should be treated as one 900 turn.
