OWNER'S GUIDE
Warning!!
Advanced
Advertisement
Table of Contents
Related Manuals for Ultra Start 45xx Series
Summary of Contents for Ultra Start 45xx Series

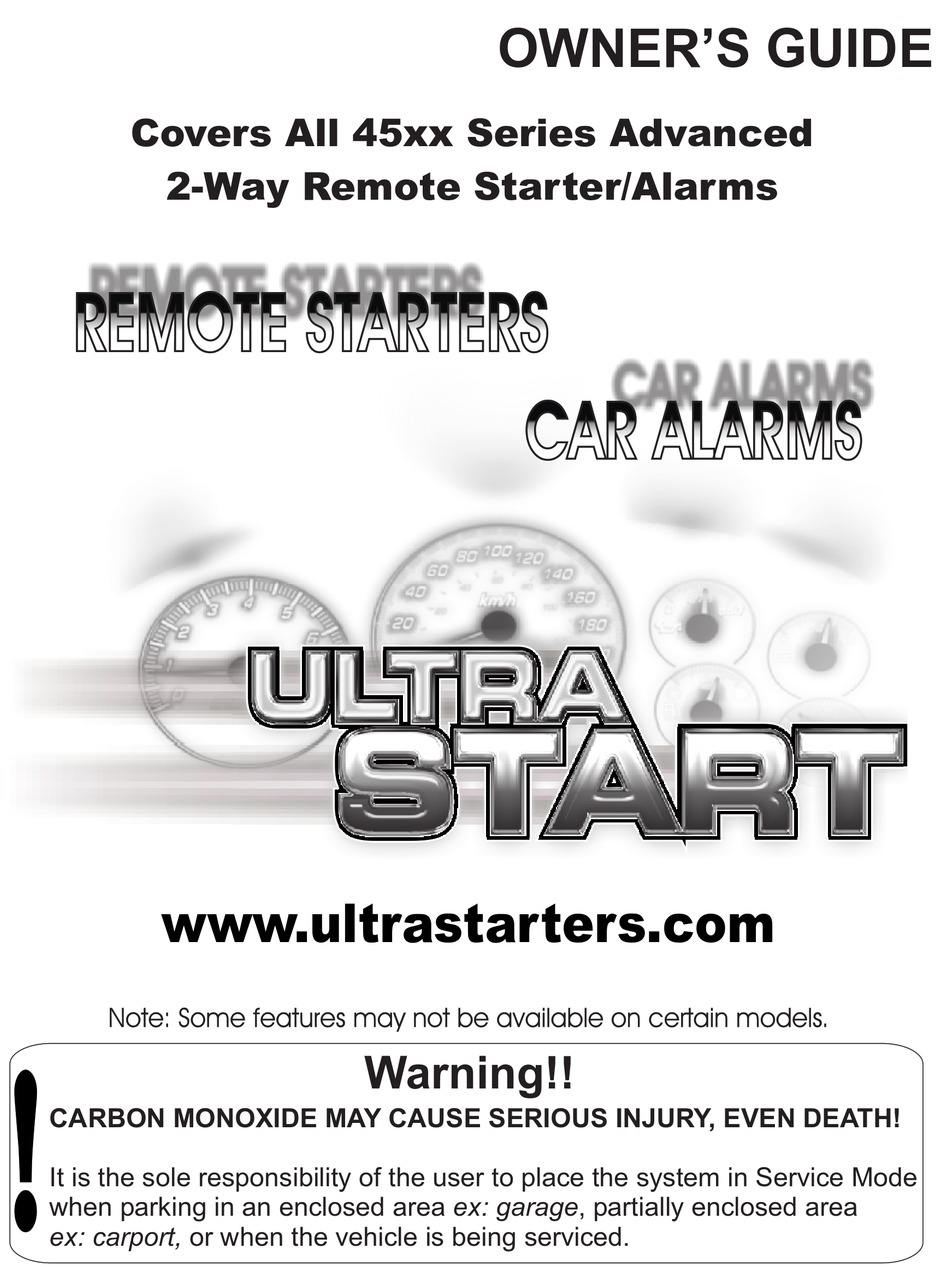

- Page 1 OWNER’S GUIDE Covers All 45xx Series Advanced 2-Way Remote Starter/Alarms www.ultrastarters.com Warning!! The system must be placed into Service Mode before any service work is started on the CARBON MONOXIDE MAY CAUSE SERIOUS INJURY, EVEN DEATH! vehicle. It is the sole responsibility of the vehicle owner to ensure that this is done. The manufacturer accepts no liability or responsibility for accidental starting of the vehicle.
-
Page 2: Table Of Contents
OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 2 Table Of Contents Table Of Contents Page 2 Welcome Page 3 About Ultra Start Feature List Safety Page 4 Remote Transmitters & Antenna Page 5 Remote Starter Functions Page 6 Remote Starting Extended Runtime... -
Page 3: Welcome
PAGE 3 Welcome Congratulations on your purchase of an Ultra Start remote vehicle starter. Ultra Start remote vehicle starters will provide years of comfort and convenience. To utilize and understand this system to the fullest, PLEASE READ THIS MANUAL IN DETAIL. -
Page 4: Safety
OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 4 Safety VERY IMPORTANT SAFETY NOTES! The owner/user MUST INSTALL a CARBON MONOXIDE DETECTOR in the living area near to where the vehicle is being stored or parked. It is the sole responsibility of the owner/user to keep the remote transmitters away from the reach of children and handle with care so that the system does not unintentionally start. -
Page 5: Remote Transmitters & Antenna
OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 5 Remote Transmitters and Antenna 1 1 2 2 3 3 FM Two Way FM One Way Program Button LEDs Active RF antenna with built in LEDs and Program Button. NOTE Remote transmitter’s and antenna may not be exactly as shown. -
Page 6: Remote Starter Functions
OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 6 Remote Star ter Functions Remote Starting (if remote start fails to start see page 15) 1. Press and release the button. 2. The park lights will flash and the siren will chirp once to confirm. The vehicle will then remote start, the siren will chirp and the park lights will then flash four times then remain on while the vehicle is running.* Extended Run Time... -
Page 7: Reservation Mode (Manual Transmissions Vehicles Only)
OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 7 Reservation Mode - (Manual Transmission Vehicles) Very Important! Do not set Reservation Mode if the vehicle is occupied. Manual transmission remote starters must be set into Reservation Mode before the remote starter will activate. The activation type of Reservation Mode is determined when the system is installed. - Page 8 OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 8 Alarm Functions 1. Press and release the button. 2. The park lights will flash and the siren will chirp one time. 3. The doors will lock (optional). NOTE: The LEDs on the antenna will start flashing within five seconds. If installed, the starter disable will activate.
-
Page 9: Optional Features
OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 9 Optional Remote Features ar Finder 1. Press and release the button two times within three seconds. 2. The park lights will flash and the siren will chirp 5 times. NOTE: This feature available on Vibra mode ONLY! (see page 16). This feature can be used to locate the vehicle in a crowded parking lot. - Page 10 OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 10 Cold Start*/Timer Mode Cold Start*/Timer Mode will start the vehicle at a user selectable start interval or temperature setting. The vehicle can be set to start once every 2, 3 or 4 hours in Timer Mode or -5,-15 or -25 Celsius in Temperature Mode*, for a maximum of 12 starts.
-
Page 11: Remote Transmitter Learn
OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 11 Remote Transmitter Learn IMPORTANT! All remote transmitters not programmed at this time will be erased from memory for security. STEP 1 - Within 3 seconds turn the ignition key to the “ON” position three times leaving “ON” the third time. STEP 2 - Press and hold the Program Button. -
Page 12: Se Rvice Mode
OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 12 System Service Mode (Valet Mode) System Service Mode will disable the remote starter. This will only effect the remote start portion of the system. The optional lock, unlock and trunk release features will still be operational. When the vehicle is to have any under hood or service work done, the system must be placed into Service Mode. -
Page 13: Lcd Display
OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 13 LCD DISPLAY These icon’s display the current status of the system. The icons may not all be present on the screen at all times, certain icons will only turn on when a feature is activated. - Page 14 OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 14 LCD DISPLAY RUN TIMER- This icon activates during remote starting. The bar graph will count down in 2 minute increments, indicating how much time is left on the remote starter’s runtime. NOTE: At rest four bars will scan back and fourth. EXHAUST and WHEEL’S- These icons activate during remote starting.
- Page 15 OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 15 LCD DISPLAY TRUNK ICON- This icon indicates that the trunk has been opened. SIREN and LOCK ICONS- These icons indicate that the alarm has been triggered by the door, hood or ignition inputs. SIREN and HAMMER ICONS- These icons indicate that the alarm has been triggered by the shock sensor input.
-
Page 16: Setting The Time
OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 16 LCD DISPLAY Setting The Time Press and hold the buttons until the remote transmitter chimes and the minute portion of the clock begins to flash. To change from minutes to hours, press and release the button. -
Page 17: Lcd Display
OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 17 LCD DISPLAY Programable Icons- The six squares found at the bottom of the display are user/dealer programmable (see page 17 to enter). TIMER ICON- When the vehicle starts in Timer Mode, this icon will appear in conjunction with the usual icons that indicate that the vehicle is running by the remote starter. -
Page 18: Shock Sensor
OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 18 Shock Sensor Shock Sensor Programming/Adjustment METHOD 1: Step1 - Press and hold the buttons for 3 seconds. The siren will chirp and the park lights will flash 3 times and then the park lights will stay ON. Step 2 - While the park lights are on strike the vehicle with the amount of force wanted to trigger the alarm*. -
Page 19: Diagnostics
OWNER’S MANUAL REMOTE VEHICLE STARTER PAGE 19 Diagnostics If the remote starter does not activate when the button is pressed the park lights will flash a diagnostic code to indicate what shutdown input has been triggered. PARK LIGHTS STATUS LED DIAGNOSTIC CODE 3 Slow Flashes LED’s On Solid... -
Page 20: Limited Lifetime Warranty
