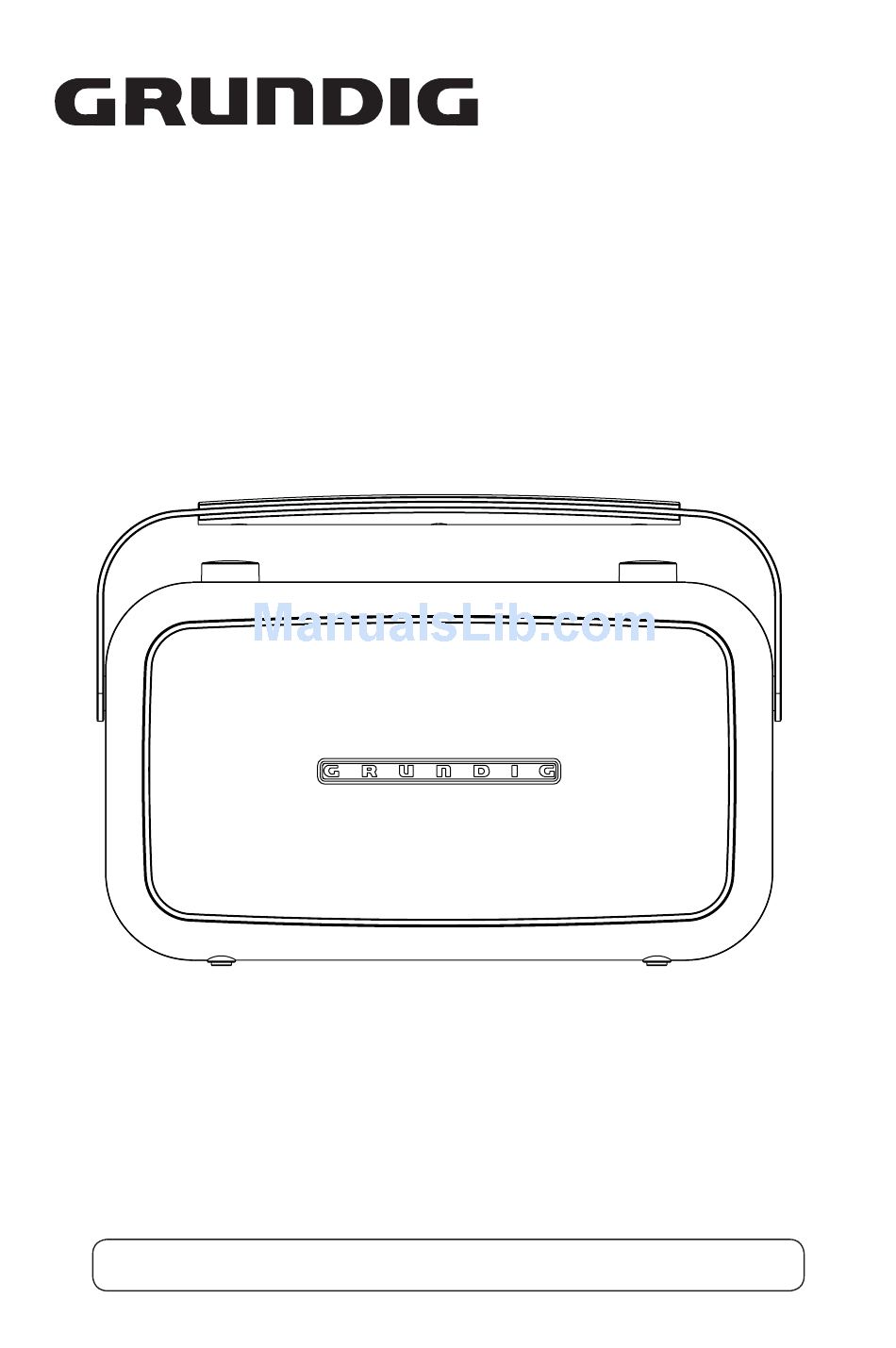

- Page 1 GUSR91DAB DAB Radio With PLL FM Tuner User Guide IMPORTANT: Please read all instructions carefully before use and keep for future use...
-
Page 2: Your Dab Radio.
Thank you for choosing this Grundig DAB Radio with Touch Screen Control Panel. Not only can it receive DAB radio stations, but you can also tune into FM radio stations or connect an auxiliary device to it. Throughout this User Guide the DAB Radio with Touch Screen... -
Page 3: Table Of Contents
What’s in the box? This User Guide Contents 01 Your DAB Radio ...3 Get going ...4 Daily use ...5 Trouble Shooting ...15 DAB Radio AC Power Cord Specifications ...16 Warnings ...17 Guarantee ...19... -
Page 4: Your Dab Radio
01 Your DAB Radio BBS button Standby button Volume control knob Mute button Scan button Standby Display Preset 10:00:00 23-7-2009 Mute Scan Mode Menu AUX In Socket PHONE Socket Rod Antenna Display button Preset button Select/Scroll up/ down Menu button... -
Page 5: Get Going
Using the DAB Radio with Batteries The DAB Radio can be powered by 6 “C” types Batteries. This allows the DAB Radio to be used outside or away from wall sockets. To remove the Battery Compartment Cover, press the 2 retaining clips firmly and pull away from the DAB Radio. -
Page 6: Daily Use
03 Daily Use Switching On To turn on the DAB Radio, ensure the power switch on the rear of the unit is set to the ON position. Press the STANDBY button on the touch panel. To turn the DAB Radio off press the STANDBY button again. - Page 7 Rotate the Scroll Up/Down knob to scroll through the stations in the station list. Press the Scroll Up/Down button to select a new station from the list. Push the SELECT button to confirm. The radio will tune to the new station. DON’T FORGET! If no new station is selected the DAB Radio will display the currently playing station after 15 seconds.
- Page 8 Time This shows the current time and is provided by the broadcaster so will always be accurate. Date This displays the date and is provided by the broadcaster. Press DISPLAY Button BBC Radio 5 Live DLS scrolling Press DISPLAY Button BBC Radio 5 Live Press DISPLAY Button...
-
Page 9: Manual Tune
Daily Use Using the MENU Control (DAB mode) The MENU control allows you to change some of the system options on your DAB Radio. These options are arranged in a menu structure as shown below. BBC Radio 5 Live RadioText Press MENU Button <Full scan... - Page 10 03 Daily Use Using the Menu Press the MENU button to enter the menu. Rotate the SELECT button to scroll through the options described below. Full Scan Press the MENU button to access the menu. Rotate the SELECT button until “Full scan” is displayed. Push the SELECT button to activate a full scan for DAB stations.
- Page 11 Dynamic Range Control (DRC) DRC adds or removes a degree of compression to compensate for the differences in the dynamic range between radio stations. For example, a station broadcasting popular music may have a high level of compression applied since the emphasis is on a constant high listening level.
- Page 12 When using battery power, the backlight time-out will be set to 10 seconds when the DAB Radio is switched to standby. You can touch any button on the radio to turn the backlight on for 10 seconds if you want to view the time.
- Page 13 FM station. There are six types of information available as listed below with examples to the right. Radio text This is scrolling text information supplied by the FM station. It may comprise information on music titles or details of the programme and is provided by the broadcaster.
-
Page 14: Scan Setting
03 Daily Use Using the MENU Control (FM mode) The MENU control allows you to change some of the system options on your DAB Radio. These options are arranged in a menu structure as shown below. Press MENU Button <Scan setting Press MENU Button <Audio setting... - Page 15 Daily Use Using the Menu Press the MENU button to enter the menu. Rotate the SELECT button to scroll through the options described below. Scan Press the MENU button to access the menu. Rotate the SELECT button until “Scan setting” is displayed. Push the SELECT button to select.
-
Page 16: Trouble Shooting
Interference from other electrical fully extended. items. Adjust the position of the antenna. Move the radio away from sources of interference. Need a spare part? In the unlikely event of you needing spare parts, please contact our spares department on: 0871 230 0790... -
Page 17: Specifications
Specifications Model Number GUSR91DAB Power Supply AC Input 230 V 50Hz or 6 X "C" (UM-2) batteries Standby Power Consumption Max Power Consumption Max Power Output 1.2W 10% THD Power Output DAB section Band III, 174 MHz to 240 MHz FM section 87.5 MHz to 108 MHz... -
Page 18: Warnings
DAB Radio. Don’t continue to operate the DAB Radio if you are ever in doubt about it working normally, or if it is damaged in any way. Switch it off, withdraw the plug from the mains and consult your dealer. -
Page 19: Electrical Information
Warnings Electrical Information This DAB Radio is supplied with a mains lead fitted with a BS1363/A 13 amp plug. If it is not suitable for your supply sockets it must be removed and replaced with an appropriate plug. If the plug becomes damaged and/or needs to be replaced please follow the wiring instructions below. -
Page 20: Guarantee
07 Guarantee The DAB Radio is guaranteed for twelve months from the date of original purchase. If there are any defects due to faulty materials or workmanship, contact the Grundig Helpline. Have your receipt of purchase on hand. The guarantee is subject to the following provisions: •... - Page 21 Helpline 0871 230 1777...
