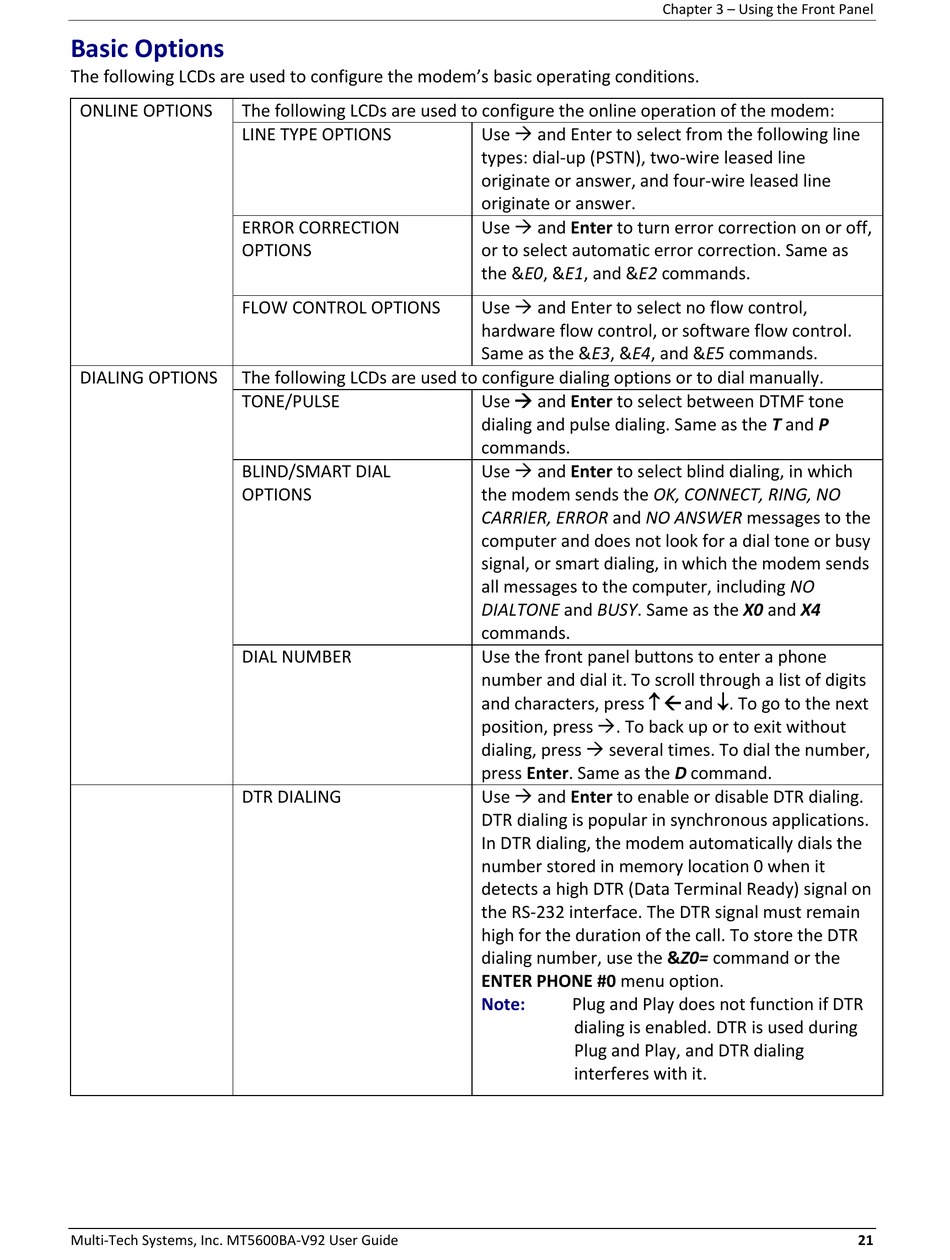

Basic Options
The following LCDs are used to configure the modem's basic operating conditions.
ONLINE OPTIONS The following LCDs are used to configure the online operation of the modem:
LINE TYPE OPTIONS
ERROR CORRECTION
OPTIONS
FLOW CONTROL OPTIONS
DIALING OPTIONS The following LCDs are used to configure dialing options or to dial manually.
TONE/PULSE
BLIND/SMART DIAL
OPTIONS
DIAL NUMBER
DTR DIALING
Multi-Tech Systems, Inc. MT5600BA-V92 User Guide
Use  and Enter to select from the following line
types: dial-up (PSTN), two-wire leased line
originate or answer, and four-wire leased line
originate or answer.
Use  and Enter to turn error correction on or off,
or to select automatic error correction. Same as
the &E0, &E1, and &E2 commands.
Use  and Enter to select no flow control,
hardware flow control, or software flow control.
Same as the &E3, &E4, and &E5 commands.
Use  and Enter to select between DTMF tone
dialing and pulse dialing. Same as the T and P
commands.
Use  and Enter to select blind dialing, in which
the modem sends the OK, CONNECT, RING, NO
CARRIER, ERROR and NO ANSWER messages to the
computer and does not look for a dial tone or busy
signal, or smart dialing, in which the modem sends
all messages to the computer, including NO
DIALTONE and BUSY. Same as the X0 and X4
commands.
Use the front panel buttons to enter a phone
number and dial it. To scroll through a list of digits
and characters, press   and . To go to the next
position, press . To back up or to exit without
dialing, press  several times. To dial the number,
press Enter. Same as the D command.
Use  and Enter to enable or disable DTR dialing.
DTR dialing is popular in synchronous applications.
In DTR dialing, the modem automatically dials the
number stored in memory location 0 when it
detects a high DTR (Data Terminal Ready) signal on
the RS-232 interface. The DTR signal must remain
high for the duration of the call. To store the DTR
dialing number, use the &Z0= command or the
ENTER PHONE #0 menu option.
Note: Plug and Play does not function if DTR
dialing is enabled. DTR is used during
Plug and Play, and DTR dialing
interferes with it.
