MINELAB

User Manual

Advertisement

Table of Contents
loading

Related Manuals for Minelab Quattro MP

Summary of Contents for Minelab Quattro MP

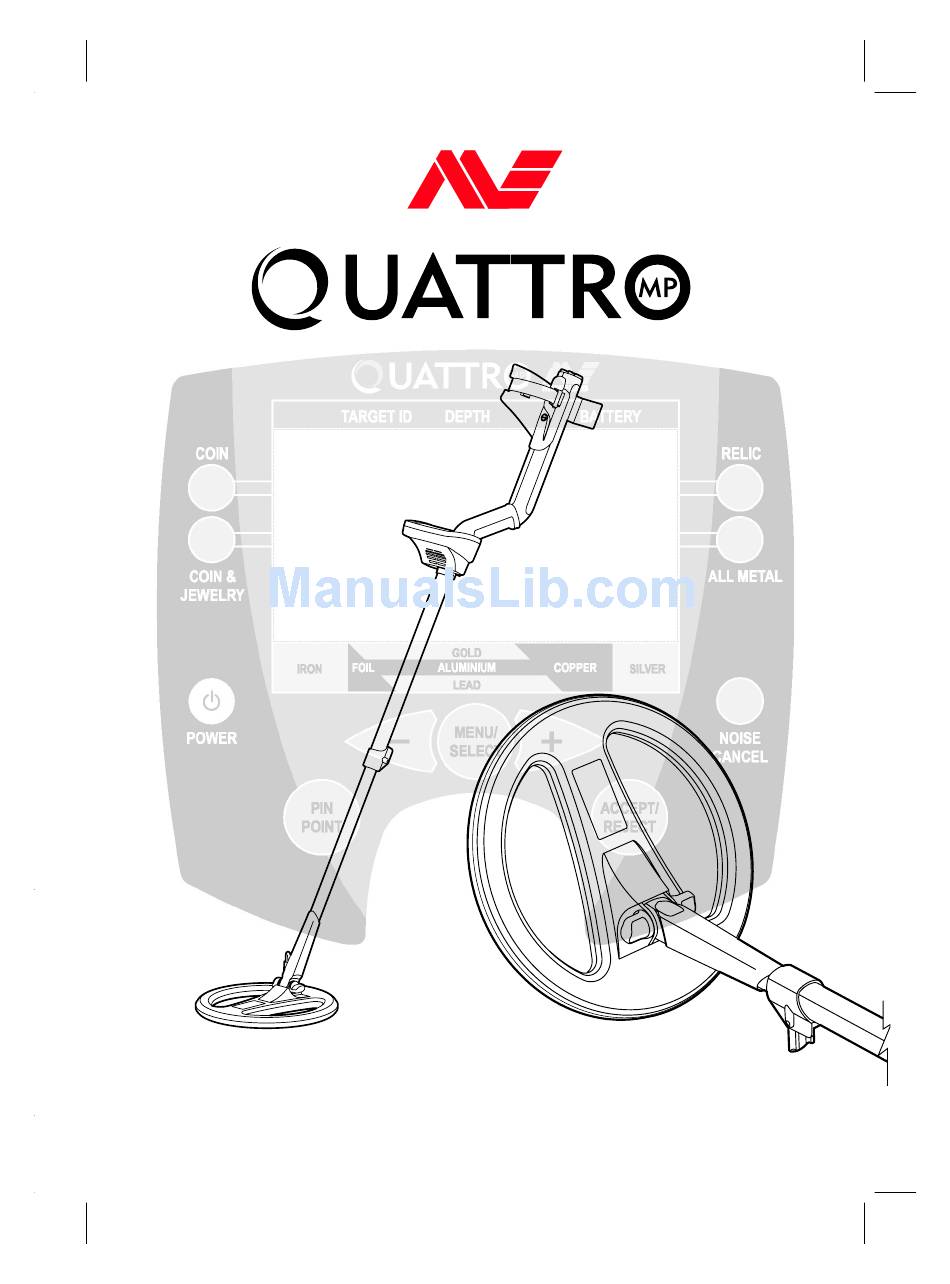

  • Page 1: User Manual

    MINELAB User Manual...
  • Page 2 Patents and trademarks apply. Discla ime r The Minelab metal detector discussed in this operating manual has been expressly designed and manufactured as a quality hobbyist metal detector and is recommended for use in coin, treasure and general metal detection in non-hazardous environments.
  • Page 3 Contact Details: Minelab USA Minelab Electronics Pty Ltd Minelab International Limited 871 Grier Drive, Suite B1 PO Box 537 Torrensville Plaza Laragh, Bandon Las V egas, Nevada 89119 South Australia 5031 Co. Cork UNITED STATES OF AMERICA AUSTRALIA IRELAND email: minelab@minelabusa.com email: minelab@minelab.com.au...

  • Page 4: Table Of Contents

    INTRODUCING THE QUATTRO MP Multi-frequency-Full Band Spectrum (FBS) Technology Quattro Technical Specifications ASSEMBLING YOUR DETECTOR Step 1 - Connecting the Search Coil Step 2 - Shaft Assembly Step 3 - Connecting the Shaft Assembly Step 4 - Armrest Assembly...
  • Page 5 Noise Cancel MENU SETTINGS Sensitivity Volume Threshold Noise Cancel Contrast Trash Density DISCRIMINATION Modifying Discrimination Scale DETECTOR SOUNDS USING YOUR QUATTRO MP TROUBLESHOOTING GLOSSARY OF TERMS PRE-SET SETTINGS...

  • Page 6: Introducing The Quattro Mp

    We recommend you use the NEW Quattro MP in one of the four selectable factory pre-set modes initially to become familiar with its operation. These settings have been optimized to provide you with excellent programs suitable for most applications.

  • Page 7: Multi-Frequency-Full Band Spectrum (Fbs) Technology

    Multi-frequency-Full Band Spectrum (FBS) Technology When developing the Quattro MP, Minelab’s scientists looked at developing a truly easy to use yet extremely powerful multi-purpose metal detector. Discussions with seasoned treasure hunters from around the world identified a number of possible enhancements for operators. Features of the Quattro MP detector include: •...

  • Page 8: Quattro Technical Specifications

    Quattro MP Technical Specifications Length Unextended 43 inches (1100mm) Length Extended 55 inches (1358mm) Shipping Weight 3 lb 7 oz (1700g) excluding batteries Coil 10.5 inch (264mm) Audio Output Internal speaker or headphones Headphone Input 1/4 inch (6.3mm) stereo jack Transmission Full Band Spectrum.

  • Page 9: Assembling Your Detector

    2. assembling your detector www.minelab.com 2. Assembling Your Detector To assemble your Minelab Quattro MP, follow steps 1 to 4 below. Step 1 - Connecting the Search Coil To attach the search coil to the lower shaft: 1. Plug the two rubber washers (1) into the holes on either side of the coil yoke (2).

  • Page 10: Step 3 - Connecting The Shaft Assembly

    Step 3 - Connecting the Shaft Assembly To connect the shaft assembly to the handle assembly: 5. Release the control box camlock lever (12) to the open position. 6. Push the coil cable connector into the socket (13) underneath the handle assembly control box.

  • Page 11: Search Coils

    The function of the search coil is to transmit electromagnetic signals into the ground, and receive the response. The Quattro MP is supplied with a 10.5 inch open web "Double D" search coil. Double D is the common term used to describe the two internal coil windings which overlap each other, producing a blade like search pattern.

  • Page 12: Batteries

    4. batteries www.minelab.com 4. Batteries The Minelab Quattro MP has both Alkaline and NiMH battery packs available as either standard or accessory items. The NiMH 1600 mAh battery pack will power the detector for up to 12.5 hours of constant use and the NiMH 1800 mAh battery pack for 14 hours.

  • Page 13: Recharging Nimh Battery Pack

    Contact your local authorities to enquire about disposal or recycling facilities. Battery Indicator A battery indicator is displayed on the Quattro MP detect screen. The battery will be fully shaded at maximum battery charge. When this shaded area decreases to the left hand side, the detector will begin to emit a low battery warning sound.

  • Page 14: Headphones

    6. quick start 6. Quick Start • Simply turn on the Quattro MP by pressing the POWER button. • On the initial start-up, your detector will default to the factory COIN mode. • To select a different factory pre-set Detect mode, press and release the appropriate mode button.

  • Page 15: Control Panel

    7. control panel www.minelab.com 7. Control Panel 1. Power (On/Off) 2. Display Meter 3. Detect Modes a. Coin Mode b. Coin & Jewelry Mode c. Relic Mode d. All Metal Mode 4. Menu/Select 5. -/+ (Minus / Plus) 6. Accept/Reject 7.
  • Page 16 Target Icons 2.4. Similar to the ID numbers, the Quattro MP will also indicate the likely target type located, using a select number of generic icons (F). At times the meter may display two icons at once, indicating that the characteristics of the target located is similar to that of a number of targets.

  • Page 17: Depth Reading

    Due to the different types of targets you may expect in certain areas, you will often prefer a different discrimination pattern for each area. With the Minelab Quattro MP, you have the choice to search in one of the factory pre-set discrimination patterns, or you can create and save your own patterns to suit the different areas you commonly search.
