Summary of Contents for Minelab Quattro MP
-

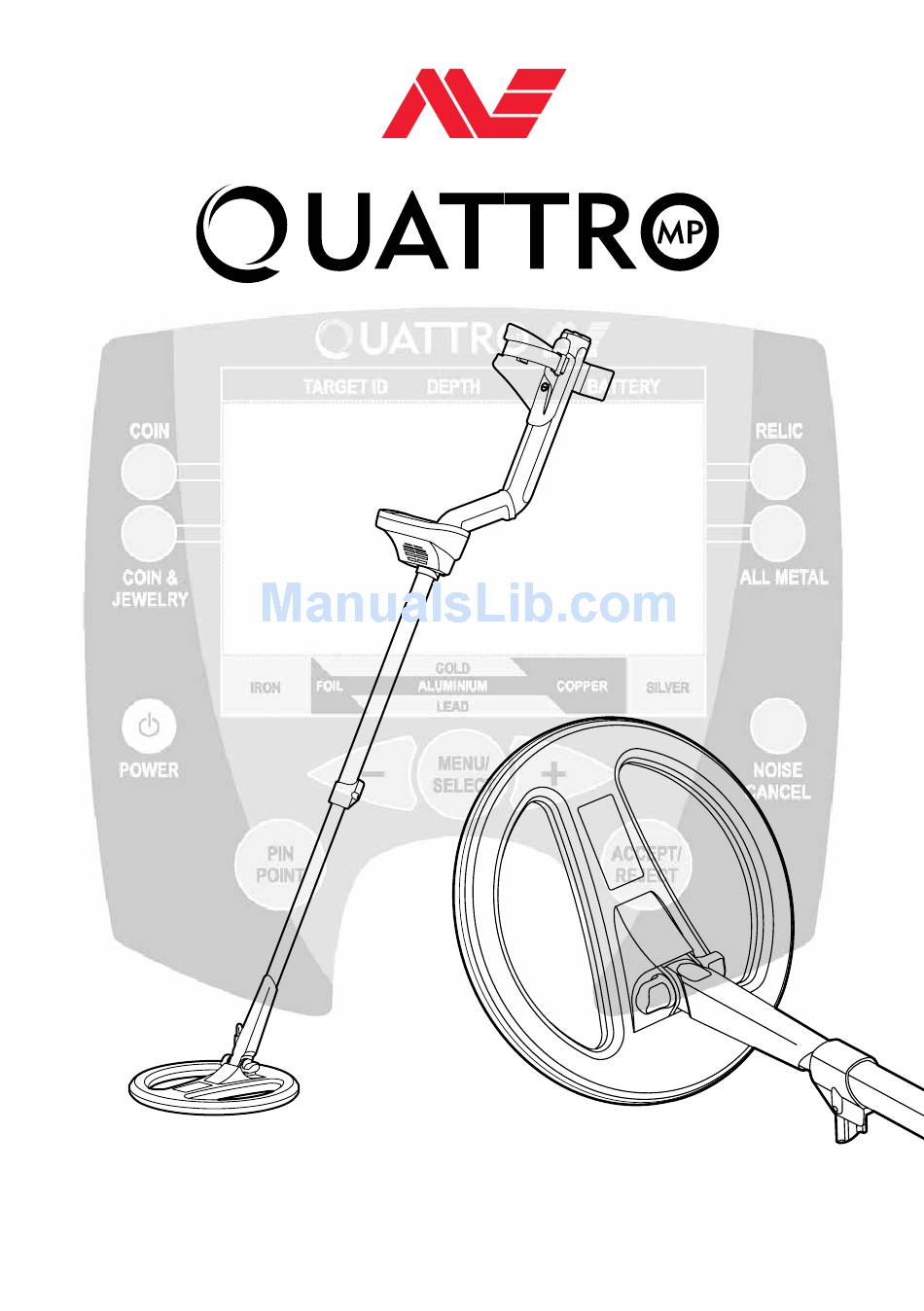

Page 1: User Manual
MINELAB User Manual... - Page 2 Patents and trademarks apply. Disclaimer The Minelab metal detector discussed in this operating manual has been expressly designed and manufactured as a quality hobbyist metal detector and is recommended for use in coin, treasure and general metal detection in non-hazardous environments. This metal detector has not been designed for use as a mine detector or as a live munitions detection tool.
-
Page 3: Table Of Contents
INTRODUCING THE QUATTRO MP Multi-frequency-Full Band Spectrum (FBS) Technology Quattro Technical Specifications ASSEMBLING YOUR DETECTOR Step 1 - Connecting the Search Coil Step 2 - Shaft Assembly Step 3 - Connecting the Shaft Assembly Step 4 - Armrest Assembly... -
Page 4: Multi-Frequency-Full Band Spectrum (Fbs) Technology

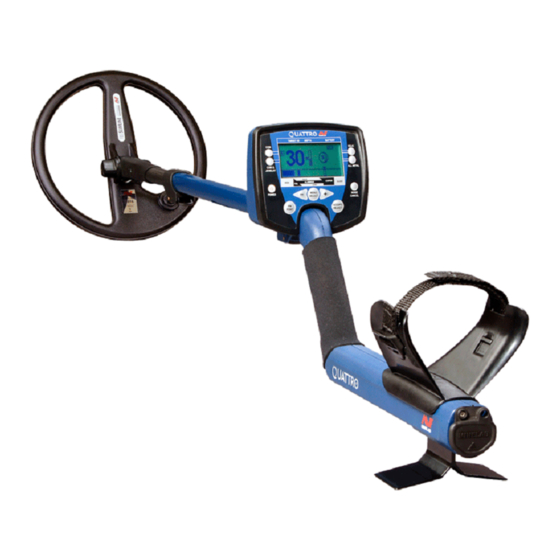

Multi-frequency-Full Band Spectrum (FBS) Technology When developing the Quattro MP, Minelab’s scientists looked at developing a truly easy to use yet extremely powerful multi-purpose metal detector. Discussions with seasoned treasure hunters from around the world identified a number of possible enhancements for operators. Features of the Quattro MP detector include: •... -
Page 5: Quattro Technical Specifications
Quattro MP Technical Specifications Length Unextended 43 inches (1100mm) Length Extended 55 inches (1358mm) INTRODUCING THE QUATTRO MP Shipping Weight 3 lb 7 oz (1700g) excluding batteries Coil 10.5 inch (264mm) Multi-frequency-Full Band Spectrum (FBS) Technology... -
Page 6: Assembling Your Detector
2. assembling your detector www.minelab.com 2. Assembling Your Detector To assemble your Minelab Quattro MP, follow steps 1 to 4 below. Step 1 - Connecting the Search Coil To attach the search coil to the lower shaft: 1. Plug the two rubber washers (1) into the holes on either side of the coil yoke (2). -
Page 7: Step 3 - Connecting The Shaft Assembly
Step 3 - Connecting the Shaft Assembly To connect the shaft assembly to the handle assembly: 5. Release the control box camlock lever (12) to the open position. 6. Push the coil cable connector into the socket (13) underneath the handle assembly control box. -
Page 8: Search Coils
The function of the search coil is to transmit electromagnetic signals into the ground, and receive the response. The Quattro MP is supplied with a 10.5 inch open web "Double D" search coil. Double D is the common term used to describe the two internal coil windings which overlap each other, producing a blade like search pattern. -
Page 9: Batteries
4. batteries www.minelab.com 4. Batteries The Minelab Quattro MP has both Alkaline and NiMH battery packs available as either standard or accessory items. The NiMH 1600 mAh battery pack will power the detector for up to 12.5 hours of constant use and the NiMH 1800 mAh battery pack for 14 hours. -
Page 10: Recharging Nimh Battery Pack
Contact your local authorities to enquire about disposal or recycling facilities. Battery Indicator A battery indicator is displayed on the Quattro MP detect screen. The battery will be fully shaded at maximum battery charge. When this shaded area decreases to the left hand side, the detector will begin to emit a low battery warning sound. -
Page 11: Headphones
6. quick start 6. Quick Start • Simply turn on the Quattro MP by pressing the POWER button. • On the initial start-up, your detector will default to the factory COIN mode. • To select a different factory pre-set Detect mode, press and release the appropriate mode button. -
Page 12: Control Panel
7. control panel www.minelab.com 7. Control Panel 1. Power (On/Off) 2. Display Meter 3. Detect Modes a. Coin Mode b. Coin & Jewelry Mode c. Relic Mode d. All Metal Mode 4. Menu/Select 5. -/+ (Minus / Plus) 6. Accept/Reject 7. - Page 13 Target Icons 2.4. Similar to the ID numbers, the Quattro MP will also indicate the likely target type located, using a select number of generic icons (F). At times the meter may display two icons at once, indicating that the characteristics of the target located is similar to that of a number of targets.
-
Page 14: Detect Modes
Due to the different types of targets you may expect in certain areas, you will often prefer a different discrimination pattern for each area. With the Minelab Quattro MP, you have the choice to search in one of the factory pre-set discrimination patterns, or you can create and save your own patterns to suit the different areas you commonly search. -
Page 15: Coin Mode
This mode has an "accept/reject" or "discrimination" pattern that is best for ignoring a variety of junk targets, while still being able to detect most coins. One of the features of the Quattro MP is its ability to vary the tone on the target signal. In COIN mode the Audio signal/tone will vary according to the level of conductivity of the detected metal. -
Page 16: Menu/Select
• Do not press the PINPOINT button when directly over a target as this may cause a constant signal. Noise Cancel NOISE CANCEL is the automatic function on the Quattro MP where the most stable search channel is found for the environment you are searching in. It is important to always engage the... - Page 17 8. menu settings www.minelab.com 8. Menu settings The Quattro MP has the following user adjustable settings: • Discrimination pattern • Sensitivity • Threshold • Noise Cancel • Target Volume • Contrast • Trash Density All the settings above, (except the discrimination pattern), are adjusted via the Menu...
- Page 18 Volume The VOLUME feature is used to adjust the maximum volume of the target signal - not the overall volume of the Quattro MP. The range of volume available is from 0 to 20 and the preset level is 20.
-
Page 19: Noise Cancel
NOISE CANCEL is an automatic function on the Quattro MP where the most stable search channel is found for the environment you are searching in. It is important that you... - Page 20 • Now pass the target over the coil again and repeat the process • The Quattro MP will continue to find different materials in the target and it will show different ID’s. • It may require you to reject a number of ID numbers before a specific target is fully rejected.
-
Page 21: To Modify The Discrimination Pattern
9. discrimination www.minelab.com 9. Discrimination Discrimination (Accept/Reject) Scale When a target is detected, an ID number appears on the left hand side of the screen, an icon appears on the right hand side of the screen, and a bar and cursor appearing in the Discrimination scale along the bottom of the screen in the Grahic Identification Bar. -
Page 22: To Create And Save A User Mode
ACCEPT/REJECT button is in REJECT mode and clear when in the ACCEPT mode. Tip: Due to the processing methods used by the Quattro MP, the ACCEPT/REJECT button is far more effective when in the LOW TRASH DENSITY setting. The HIGH setting enhances the detectors ability to pick out good targets in high concentrations of Iron, and as a result the ACCEPT/REJECT function is not as accurate. -
Page 23: Detector Sounds
11. Using Your Quattro MP Sweeping the Coil The Minelab Quattro MP will perform at its best when the coil is kept close to the ground. This will increase detection depth and response to small objects. -
Page 24: Troubleshooting
12. troubleshooting www.minelab.com Fault Solution Detector does not start at all – Check the state of the batteries and battery connections. – Ensure battery pack lid is completely closed. – If using alkaline batteries, check whether they have been loaded in the right polarity and correct if necessary. -
Page 25: Glossary Of Terms
Threshold (hum) The audible level of sound emitted when no target is detected is the THRESHOLD. This threshold hum is the background sound made as the Quattro MP operates. THRESHOLD can be set anywhere between no sound (silent) and loud. -
Page 26: Discrimination Settings
14. pre-set settings www.minelab.com 14. Pre-set Settings Menu Settings Sensitivity Preset - Auto Target Volume Preset 20 Threshold Preset 12 Noise Cancel Automatic Contrast Preset 10 Trash Density Preset Low Discrimination Settings Coin Mode (-10 +2) and (+6 Coin Jewelry Mode... - Page 27 Please note: recycling service or centre, or by returning undesired operation. the unit to the respective Minelab or Halcro Since there may be a variety of options outlet as appropriate for your unit. This will available for this detector, equipment...
