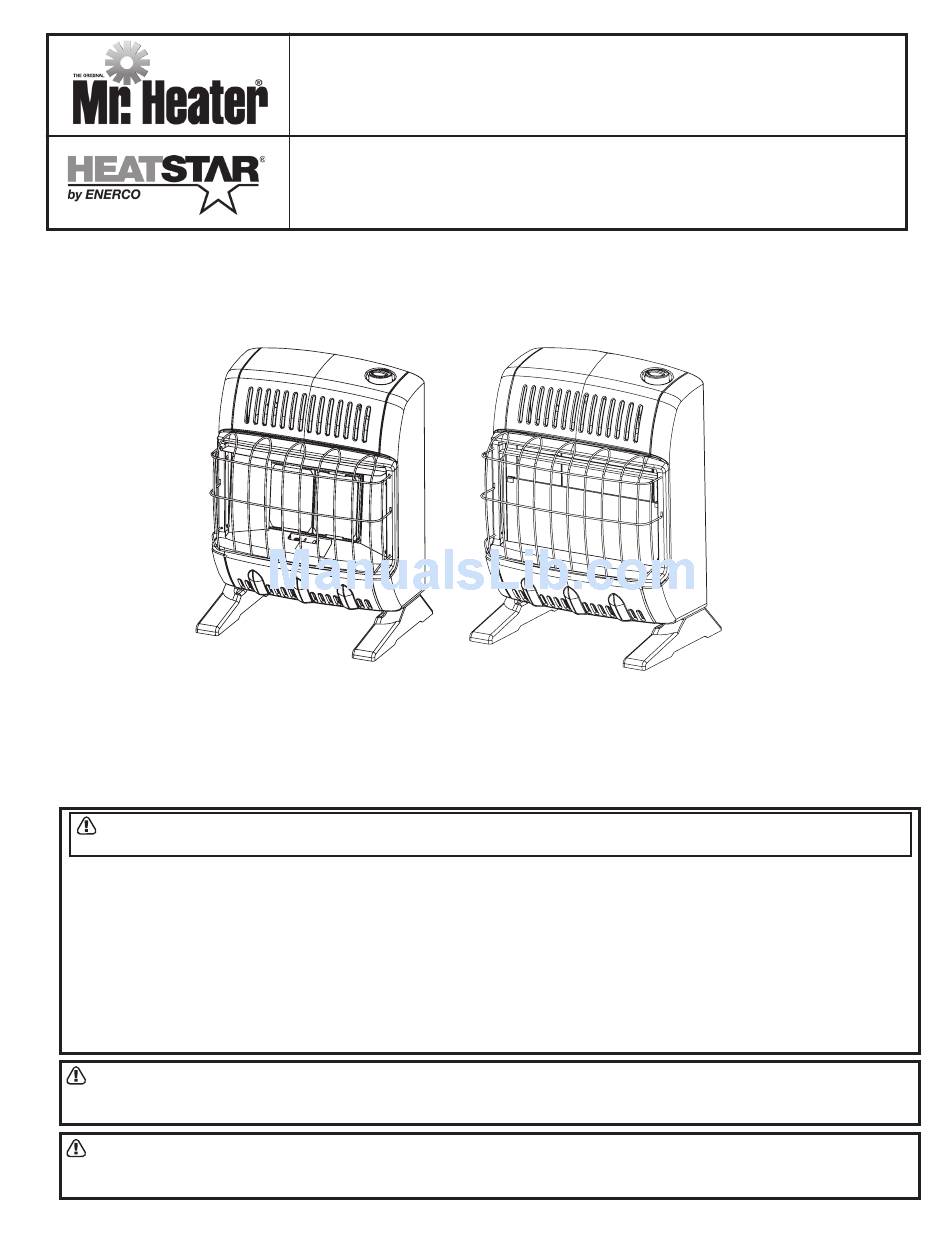

Installer: Leave this manual with the appliance. Consumer: Retain this manual for future reference.
Plaque Heaters
MHVFR10LP
HSVFR10LP
WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing
property damage, personal injury, or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Shut off gas supply
• Do not try to light any appliance
• Do not touch an electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency, or the gas supplier.
WARNING: This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is installed.
Provisions for adequate combustion and ventilation air must be provided. Refer to Fresh Air for Combustion and
Ventilation section on page 4 of this manual.
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property
damage. Refer to this manual for correct installation and operational procedures. For assistance or additional
information consult a qualified installer, service agency, or gas supplier.
INSTALLATION INSTRUCTIONS
AND OWNER'S MANUAL
READ INSTRUCTIONS CAREFULLY: Read and follow all instructions. Place
instructions in a safe place for future reference. Do not allow anyone who has not
read these instructions to assemble, light, adjust or operate the heater.
Mr. Heater, INC., 4560 W. 160
TH
ST., CLEVELAND, OHIO 44135 · 216-916-3000
For model serial numbers,
see page E16.
Blue Flame Heaters
MHVFB10LP
HSVFB10LP
70810 Rev. C 07/11
Advertisement
Table of Contents
Related Manuals for Mr. Heater Plaque MHVFR10LP
Summary of Contents for Mr. Heater Plaque MHVFR10LP
-
Page 1: Installation Instructions
Refer to this manual for correct installation and operational procedures. For assistance or additional information consult a qualified installer, service agency, or gas supplier. Mr. Heater, INC., 4560 W. 160 ST., CLEVELAND, OHIO 44135 · 216-916-3000 70810 Rev. C 07/11... -
Page 2: Table Of Contents
This appliance may be installed in an aftermarket* permanently manufactured (mobile) home, where not prohibited by local codes. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with any other gas. *Aftermarket completion of sale, not for the purpose of resale, from the manufacturer. -
Page 3: Specifications
SPECIFICATIONS IR10 LP BF10LP BTU (Available) 10,000 10,000 Type of Gas LP-Gas Only LP-Gas Only Ignition Piezo Piezo Pressure Regulator Setting 10 Inches of Water 10 Inches of Water Inlet Gas Pressure (Maximum) 14 Inches of Water 14 Inches of Water Inlet Gas Pressure (Minimum) 11 Inches of Water 11 Inches of Water... -
Page 4: Determining The Type Of Heater Location Space
SAFETY DEVICE This heater has a pilot with an Oxygen Depletion Sen- sor (ODS) safety shut off system. The ODS/pilot shuts off the heater if there is not enough fresh air. IGNITION SYSTEM PIEZO: BF10LP/ IR10LP – The heater is equipped with a piezo manual ignitor. -
Page 5: Installation
VENTILATION AIR Ventilation from Inside Building This fresh air would come from an adjoining unconfined space. When ventilation to an adjoining unconfined space, you must provide two permanent openings: one within 12” of the ceiling and one within 12” of the floor 12”... -
Page 6: Fastening Heater To Wall
WARNING: A qualified service person must install For convenience and efficiency, install the heater: heater. Follow all local codes. • Where there is easy access for operation, CHECK GAS TYPE inspection, and service. Use only LP-gas. If your gas supply is not LP-gas, do •... - Page 7 1. Attach to wall studs 3. Insert mounting screws through bracket and into wall studs. 2. Attach to wall anchor 4. Tighten screws until mounting bracket is firmly fastened to wall studs. Attaching to Wall using Anchor: For attaching mounting bracket to hollow walls (wall ar- eas between studs) or solid walls (concrete or masonry) Note: Wall anchors, mounting screws, and spacer are in hardware package.
-
Page 8: Floor Mounting Away From Wall
location, heater may be locked into position us- ing anchoring holes in mounting feet. Screw Screw Note: Use of floor mounting feet will require you to hole hole use a 3/8 NPT street elbow to make gas connec- tion. Figure 10 CONNECTING TO GAS SUPPLY 2. -
Page 9: Pressure Testing Gas Supply Piping System
1. Close equipment shutoff valve (see figure 13). 2. Pressurize supply piping system by either using Pressure Regulator compressed air or opening propne/LP supply valve. 3. Check all joints from the propane/LP supply valve to equipment shutoff valve (see figure 3/8”... -
Page 10: Operating Your Heater
8. Turn off heater (see To Turn OFF Gas to Appli- be depressed for about 30 seconds. This will allow ance, page 10. air to bleed from the gas system. 9. Replace lower front panel. 6. Push in control knob and rotate control knob back to OFF position then rotate counterclock- OPERATING YOUR HEATER wise to PILOT/IGN position. -
Page 11: Cleaning And Maintenance
2. Turn control knob clockwise to the OFF posi- tion. SHUTTING OFF BURNER ONLY (PILOT STAYS LIT) 1. Turn control knob clockwise to the PILOT/IGN position. INSPECTING BURNER Check pilot flame pattern and burner flame pattern often. Note: Your heater may have either pilot assembly. Figure 17 PILOT FLAME PATTERN Figure 21 show a correct pilot flame pattern. -
Page 12: Troubleshooting
TROUBLESHOOTING NOTE: All troubleshooting items are listed in order of operation and likely occurrence. WARNING: Only a qualified service person should service and repair heater. CAUTION: Never use a wire needle, or similar object to clean ODS/pilot. This can damage ODS/pilot unit. Make sure grille guard is in place before running heater. - Page 13 OBSERVED SYMPTOM POSSIBLE CAUSE REMEDY Heater shuts off in use (ODS operates) 1. Not enough fresh air is available 1. Open window and/or door for ventilation 2. Low line pressure 2. Contact local gas company 3. ODS/pilot is partially clogged 3.
-
Page 14: Exploded-View Parts Drawing
UNVENTED LP-GAS FIRED ROOM HEATER • Model #IR10LP/ BF10LP Model #BF10LP Model #IR10LP Unvented Liquid Propane Fired Room Heater Installation Instructions and Owner’s Manual... -
Page 15: Parts List
PARTS LIST IR10LP and BF10LP • This list contains replacement parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 16 of this manual. ITEM PART NO. DESCRIPTION QTY. IR10LP BF10LP 70300 70300 Cabinet Assembly 70301 70301... -
Page 16: Warranty
Mr. Heater, Inc. warrants its heaters and accessories to be free from defects in material and workmanship for a period of 1 year from date of purchase. Mr. Heater, Inc. will repair or replace this product free of charge if it has been proven to be defective within the 1-year period, and is returned at customer expense with proof of purchase to Mr.
