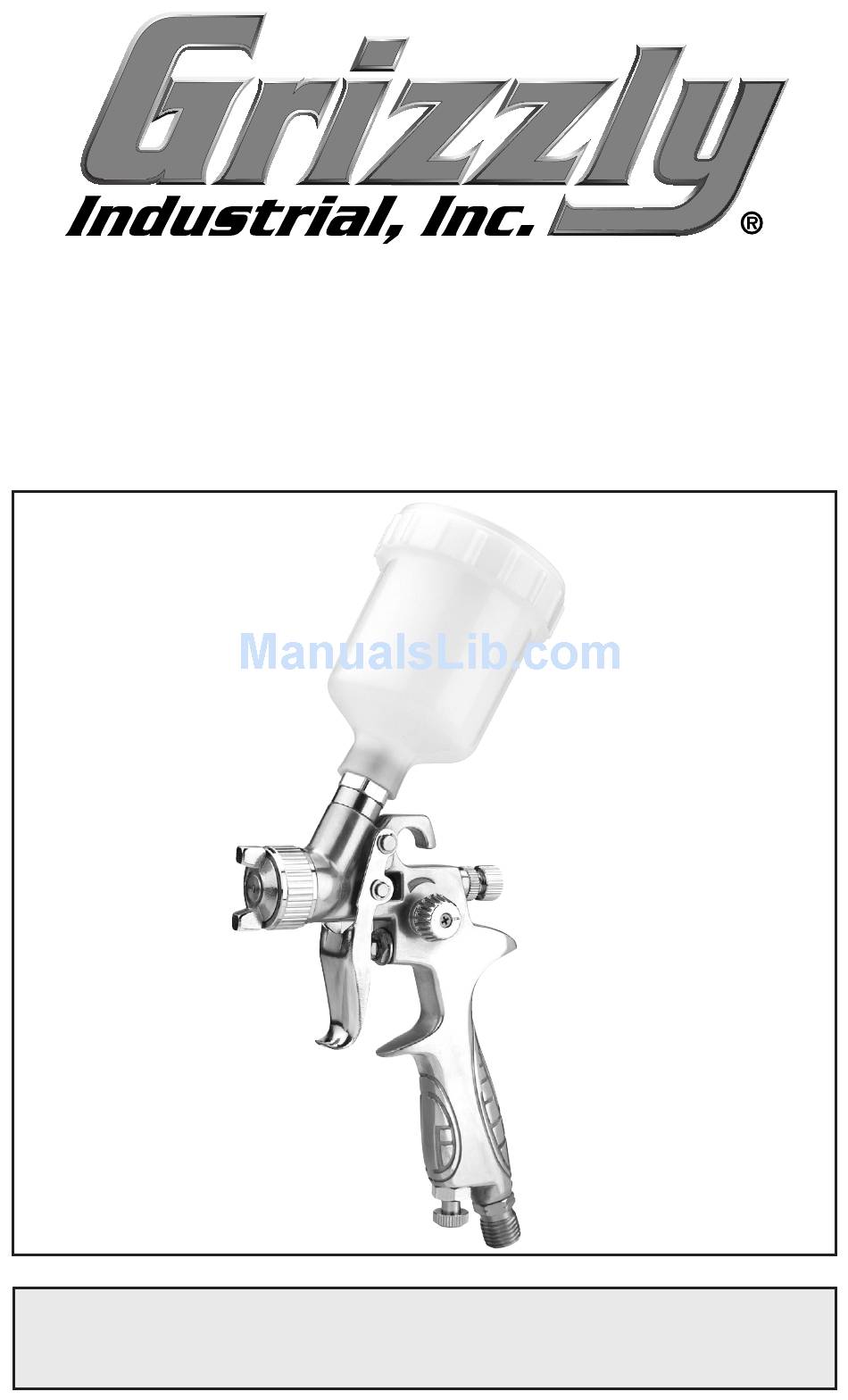

- Page 1 MODEL H8224 HVLP SPRAY GUN INSTRUCTION MANUAL COPYRIGHT © AUGUST, 2007 BY GRIZZLY INDUSTRIAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC. #TR9837 PRINTED IN CHINA...
-
Page 2: Safety Instructions For Spray Guns
To reduce your risk, only use the spray gun in a well ventilated area with adequate supply of fresh air. Model H8224 HVLP Spray Gun SAFETY Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury. - Page 3 19. SOLVENTS. Always store solvents and shop towels soaked in solvent in approved containers. 20. LOCAL LAWS. Consult local authori- ties regarding exhaust and waste dis- posal requirements. & UNSUPERVISED Model H8224 HVLP Spray Gun...
-
Page 4: Specifications
INTRODUCTION Foreword The specifications, details, and photographs in this manual represent the Model H8224 as supplied when the manual was prepared. However, owing to Grizzly’s policy of continuous improvement, changes may be made at any time with no obligation on the part of Grizzly. -
Page 5: Assembly And Setup
After you have unpacked the box, you should find the following items with your spray gun: Model H8224 Inventory (Figure 1) A. Cup 120cc ... 1 B. Multi-Wrench ... 1 C. Cleaning Brush ... 1 D. Barbed Hose Fitting w/Nut ... 1 E. - Page 6 If you need additional help with this assem- bly, call our Technical Support at: (570) 546-9663. Model H8224 HVLP Spray Gun ⁄ " NPT quick Atomizing Cap Trigger Air Flow Control •...
-
Page 7: Explosion Hazard
OPERATIONS The Model H8224 HVLP spray gun set is designed to spray a wide variety of materials such as lacquers, stains, prim- ers, multi-component paints, clear coats, acrylics, epoxies etc. - Page 8 Model H8224 HVLP Spray Gun 10. Begin spraying 2-3 inches before the work and continue to the end of the work. Continue the motion for a few inches past the work until you are ready for the return stroke.
-
Page 9: Atomizing Cap And Fan Adjustments
Figure 4) changes the shape of the spray pattern from a wide spray to a narrow spray, as shown in Figure 9. Pattern Pattern Control Figure 9. Fan adjustment. Pattern Pattern Control with vertical fan pattern. Model H8224 HVLP Spray Gun... - Page 10 Features 200 PSI rating, 800 PSI bursting strength, and ⁄ " NPT ends. Figure 11. Red rubber air hose. Model H8224 HVLP Spray Gun H7274—Campbell Hausfeld™ Pressure Regulator Since PSI drops as it travels through air hose, attaching a regulator directly to the spray gun ensures accurate air regulation for the best results possible.
-
Page 11: Maintenance
DO NOT soak the spray gun body in Knob solvent. Prolonged exposure to sol- vent will rapidly deteriorate the spray gun washers and seals. Ignoring this notice will void your warranty. EXPLOSION HAZARD! Solvents like Methylene NOTICE Model H8224 HVLP Spray Gun 1,1,1-... - Page 12 D. Pattern Control E. Fluid Control Knob F. Air Flow Control Knob Allow the lubricant to coat threads, and run into gun body to lubricate all moving parts and seals. Figure 15. General lubrication points. Model H8224 HVLP Spray Gun...
-
Page 13: Troubleshooting
1. Increase volume. 2. Reduce inlet air pressure. 3. Increase fluid pressure. 4. Adjust material. 1. Check air supply. 2. Clean gun, remove any obstructions. 3. Open. 4. Refill. 5. Thin to manufacturer's rec- ommendations. Model H8224 HVLP Spray Gun... - Page 14 fluid tip. Contaminated 1. Water or oil in the air line. paint: fish eye appearance. Model H8224 HVLP Spray Gun Solution 1. Reduce fluid pressure. 2. Keep gun at recommended distance. 3. Slow down and maintain consistent, even parallel stroke.
- Page 15 PH8224047 FLARE NUT 1/4" NPT PH8224048 PIPE CLEANER BRUSH PH8224049 M-WRENCH 7/8/10/12/13/16 �� �� �� �� �� �� �� �� �� �� �� �� �� �� DESCRIPTION E-CLIP 3MM O-RING 2.5 X 1.5 S3 E-CLIP 2.5MM Model H8224 HVLP Spray Gun...
