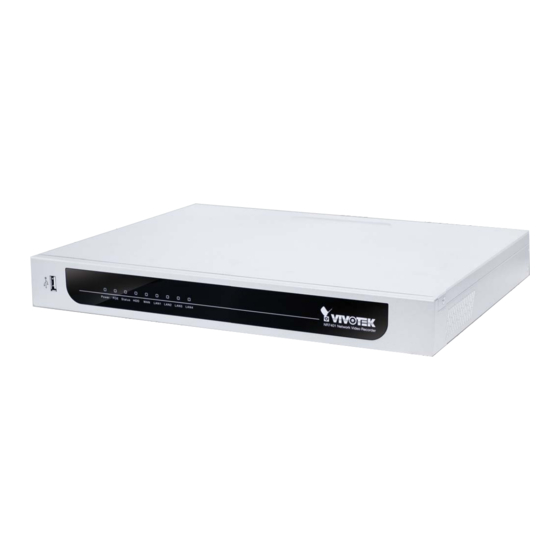

Vivotek NR7401 Features & Specifications

NR7401
Network Video Recorder
9-CH PoE Gateway Supported
VIVOTEK's NR7401 network video recorder provides an elegant
recording solution for VIVOTEK network cameras and allows
users to perform real-time monitoring and recording at the same
time. Supporting up to 9 channels in both MPEG-4 and MJPEG
formats, the NR7401 provides several recording options, including
alarm recording, scheduled recording, and manual recording. As
the NR7401 can automatically detect and install VIVOTEK
cameras without any configuration, installation is very simple. In
addition, the NR7401 offers a user-friendly interface where users
can configure network settings as well as control camera movement.
The integrated 802.3af compliant PoE (Power-over-Ethernet)
function reduces cabling problems, making NR7401 a cost-effective
recording system. With a large-volume hard disk drive, users can
record high-definition video streams from megapixel cameras for
long periods without worrying about running out of storage
capacity. The NR7401 also features a built-in gateway that
separates network cameras from the regular data network so
that the influence of video recording on bandwidth is minimized.
The NR7401 also comes with four digital inputs and one digital
output interfaces to allow for connections with external sensors
and alarms. In addition, the NR7401 can be connected with
external USB storage devices for video backup.
Features
> >
Simultaneous Monitoring and Recording on 9 channels
> >
Gateway Between VIVOTEK Network Cameras and
Data Network
> >
Supports VIVOTEK 6000- and 7000-series Network
Cameras
> >
Built-in 802.3af Compliant PoE
> >
Local Video Recording with Minimal Bandwidth Impact
> >
Camera Management with Automatic Camera Installation
and Configuration
> >
Video Proxy Server for Live and Recorded Video
> >
External USB Storage for Video Backup
