Garmin echo 200 Series Owner's Manual
Hide thumbs
Also See for echo 200 Series:
- Important safety and product information (28 pages) ,
- Owner's manual (28 pages) ,
- Installation instructions manual (6 pages)
Related Manuals for Garmin echo 200 Series
Summary of Contents for Garmin echo 200 Series

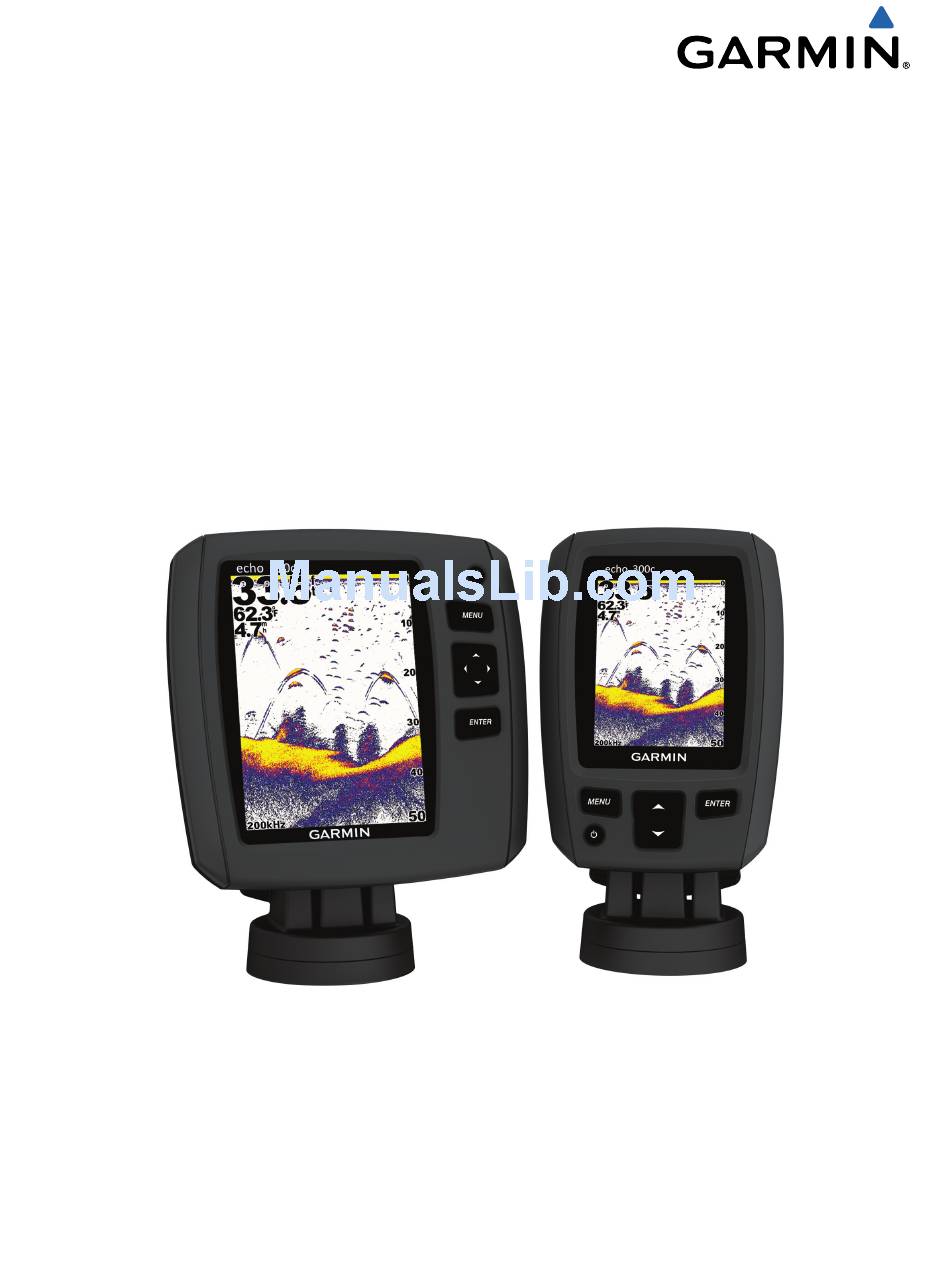

- Page 1 echo 200, 300, and 500 Series ™ Owner’s Manual November 2013 190-01709-00_0A Printed in Taiwan...
- Page 2 All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Garmin. Garmin reserves the right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements.
-
Page 3: Table Of Contents
Table of Contents Introduction..............1 Registering Your Device ............1 Contacting Garmin Product Support .......... 1 Manual Conventions ..............1 Entering Numerical Values ............1 Getting Started............... 1 Keys ................... 1 Turning on the Device Automatically ......... 1 Adjusting the Backlight ............... 1 Adjusting the Color Scheme ............ -
Page 5: Introduction
Help us better support you by completing our online registration today. Adjusting the Color Scheme • Go to http://my.garmin.com. For the echo 300 and 500 series devices, you can set the color • Keep the original sales receipt, or a photocopy, in a safe scheme for all sonar screens. -
Page 6: Selecting A
Pages From the split zoom page, select MENU > Setup > Sonar Setup > Split Size > Large. You can view sonar information in different formats using the Pages menu. Split Frequency Page You can view two frequencies from the split frequency page. Selecting a Page NOTE: You must have a dual-beam transducer or a dual- Select MENU >... -
Page 7: Numbers
within the lower third of the sonar screen, and can be useful for Depth at your present location tracking the bottom where there are slow or moderate terrain Depth scale changes. When the depth changes dramatically, like a drop off or cliff, Numbers Page manually adjusting the range allows a view of a specified depth You can view numeric information instead of a graphic from the... -
Page 8: Showing And Adjusting The Depth Line
Showing and Adjusting the Depth Line Setting the Gain Automatically You can show and adjust a horizontal line on a sonar screen. NOTE: To set the gain on the split frequency page, you must The depth of the line is indicated on the right side of the screen. set each frequency separately. -
Page 9: Sonar Numbers Settings
• sets the alarm to sound when fish of all sizes are depth from the bottom of the keel instead of from the transducer detected. location. • sets the alarm to sound only when medium or large Select an option, based on the location of the transducer: fish are detected. -
Page 10: Appendix
“Software”) in binary executable form in the normal operation of the product. Title, ownership rights, and intellectual property rights in and to the Software remain in Garmin and/or its third- party providers. You acknowledge that the Software is the property of Garmin... -
Page 11: Index
