Greenheck SE1 Brochure & Specs

Sidewall propeller fans belt and direct drive
Hide thumbs Also See for SE1:

Advertisement

Quick Links

Sidewall Propeller Fans
Belt and Direct Drive
Exhaust, Supply and Reversible
December
1
2007

Advertisement

loading

Related Manuals for Greenheck SE1

Summary of Contents for Greenheck SE1

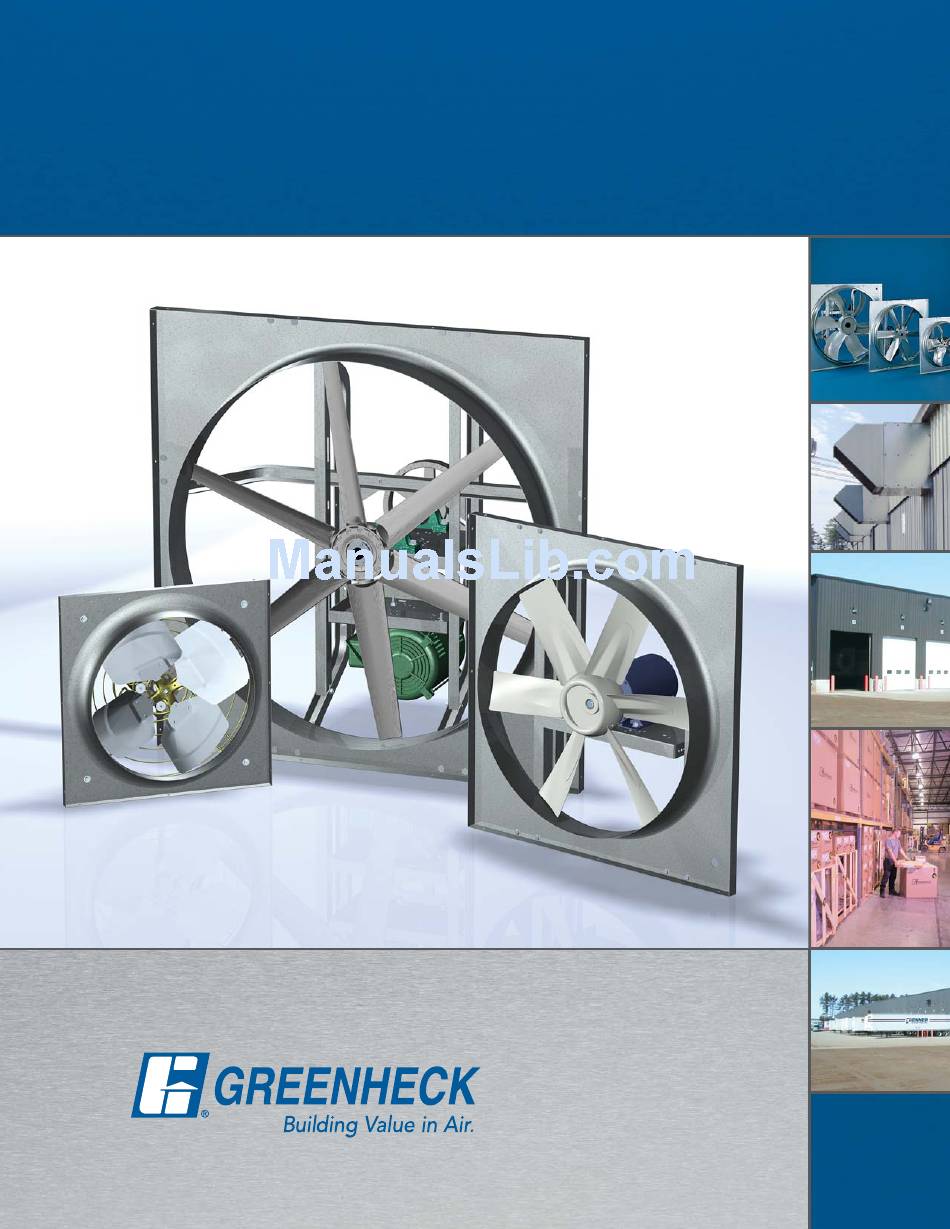

  • Page 1 Sidewall Propeller Fans Belt and Direct Drive Exhaust, Supply and Reversible December 2007...
  • Page 2 • Three levels of construction from commercial to industrial • Multiple blade designs for low sound and optimum efficiency Greenheck Fan Corporation certifies that the SE1, SS1, SE2, SS2, SC3E, SC3S, SBE, SBS, SBCE and SBCS models shown herein are licensed to bear the AMCA Seal.

  • Page 3: Model Comparison

    Model Comparison Direct Drive Fan Selection Three propeller and drive frame combinations are available. Models SE1 and SS1 are designed for smaller size applications where lower volumes and static pressures are found. Models SE2, SS2, SCE3 and SCS3 are designed and constructed for applications with higher volumes and static pressures.

  • Page 4: Mounting Options Overview

    Mounting Options Overview Mounting Option Standard Wall Mounting Standard Horizontal Mounting Wall Collar Wall Housing Filtered Supply Wall Housing Description Fan can be mounted directly to a wall. wall Fan can be horizontally mounted to move air up or down. The wall collar is an easy way to mount the sidewall propeller fan...
  • Page 5 Standard Wall Mounting Mounting Fan Directly to Wall The split drawing below illustrates the typical ways of mounting fans directly to the wall when a wall housing or collar is not used. For exhaust fans, there is a minimum dimension (M) which must be maintained between the propeller and damper or guard to achieve optimum performance (failure to meet this minimum dimension will result in loss of fan performance, increased noise and shortened fan and damper life).
  • Page 6 Standard Horizontal Mounting Option Horizontally mounted fans are available for applications requiring vertical airflow. Typical applications include mounting fans in ductwork or plenums as transfer fans or suspending them from the ceiling in a wall housing for use as recirculation fans. Both belt and direct drive fans can be horizontally mounted. Motors can be mounted on top or on bottom with airflow up or down.
  • Page 7 Wall Collar Mounting Option Wall collars offer an alternate method for mounting sidewall propeller fans and the optional accessories shown here. Standard construction is of galvanized steel (painted steel is optional) with heavy gauge mounting flanges and pre-punched mounting holes. Wall Collar Size W.O.
  • Page 8 Wall Housing Mounting Option Wall housings are the safest, most efficient and sturdy platform for mounting sidewall propeller fans and their optional accessories. Wall housings allow for a wide range of mounting arrangements to meet specific applications. It is constructed of galvanized steel (painted steel optional) with heavy gauge mounting flanges and prepunched mounting holes.
  • Page 9 Wall Housing Mounting Arrangements The wall housing is designed to reduce installation time and provide maximum installation flexibility. Attached accessories such as backdraft dampers, guards and weatherhoods may mount to either end. As a result a wide variety of configurations are available to accommodate the needs of the system designer. The following information will help determine the correct arrangement required.

  • Page 10: Mounting Options

    Filtered Supply Wall Housing Mounting Options Filtered supply wall housings are available in seven sizes for fans ranging from size 24 to 54 inches (610 to 1372 mm). They are designed with the draw-thru concept to achieve the highest filter and fan efficiencies. Standard construction is galvanized steel (painted steel optional).
  • Page 11 Backdraft Dampers Used alone or in conjunction with the wall housing or wall collar, backdraft dampers are available for exhaust or supply configurations. Backdraft dampers are constructed with galvanized frames, aluminum blades and vinyl blade seals. Actuators are available in 24, 120, 208, 230 or 460 volts. Actuators for 50 cycle voltages are also available. Actuators for 50 cycle voltages are also available.

  • Page 12: Other Options And Accessories

    Other Options and Accessories Electrical Disconnect Switches Toggle type and heavy duty disconnect switches are available for positive electrical shut-off and safety in servicing fans. The following switches are available to meet individual electrical requirements and can be factory mounted or shipped loose for field mounting. Wiring from the motor to the disconnect box is provided with factory mounted disconnect switches.
  • Page 13 Basics of Fan Selection The first consideration in any fan selection is the amount of air to be moved and the resistance to this air The first consideration in any fan selection is the amount of air to be moved and the resistance to this air movement.
  • Page 14 Direct Drive - Level 1 Dimensional Data: Models SE1/SS1 All direct drive models are available in either exhaust (Model SE1) or supply (Model SS1) arrangements. Panel/Drive frame - Galvanized steel with one-piece drawn venturi Sizes 8-12; D, G, & E motor speeds - zinc plated heavy welded wire guard/support structure (paint optional).

  • Page 15: Se1/Ss1 Performance Limits

    SE1/SS1-24-432-B7 0.83 Performance certified is for Models SE1/SS1 for installation type A: free inlet, free outlet. Power rating (BHP) does not include transmission losses. Performance ratings do not include the effects of appurtenances (accessories). The sound ratings shown are loudness values in fan sones at 5 ft (1.5 m) in a hemispherical free field calculated per AMCA Standard 301. Values are for installation type A: free inlet hemispherical sone levels.
  • Page 16 Direct Drive - Level 2 Dimensional Data: Models SE2/SS2 All direct drive models are available in either exhaust (Model SE2) or supply (Model SS2) arrangements. Panel/Drive frame - Galvanized steel with one-piece drawn venturi, bolted structural steel channels and motor plate (paint optional). Propeller - Heavy duty, welded and gusseted painted steel.
  • Page 17 Direct Drive - Level 2 Model SE2 for exhaust — Model SS2 for supply Motor Model Number SE2 / SS2 Performance Limits SE2/SS2-16-427-B6 0.15 1160 SE2/SS2-16-435-B6 0.20 SE2/SS2-16-417-A4 0.30 SE2/SS2-16-423-A3 1750 0.38 SE2/SS2-16-430-A5 0.56 SE2/SS2-18-423-B6 0.20 SE2/SS2-18-430-B4 1160 0.29 SE2/SS2-18-435-B3 0.35 SE2/SS2-18-411-A4 0.30...
  • Page 18 Direct Drive - Level 3 Dimensional Data: Models SCE3/SCS3 All direct drive models are available in either exhaust (Model SCE3) or supply (Model SCS3) arrangements. Panel/Drive frame - Galvanized steel with one-piece drawn venturi, bolted structural steel channels and motor plate. (paint optional). Propeller - Heavy duty, cast aluminum.
  • Page 19 Direct Drive - Level 3 Model SCE3 for exhaust — Model SCS3 for supply Motor Model Number SCE3/SCS3 Performance Limits SCE3/SCS3-20-617-B4 0.29 SCE3/SCS3-20-622-B3 1160 0.40 SCE3/SCS3-20-630-B5 0.55 SCE3/SCS3-20-307-A4 0.27 SCE3/SCS3-20-312-A3 0.40 SCE3/SCS3-20-320-A5 1750 0.62 SCE3/SCS3-20-327-A7 0.92 SCE3/SCS3-20-429-A10 1.26 SCE3/SCS3-24-620-C4 0.28 SCE3/SCS3-24-627-C3 0.39 SCE3/SCS3-24-630-C5...
  • Page 20 Direct Drive - Level 3 - Reversible Dimensional Data: Model SCR3 Panel/Drive frame - Galvanized steel with one-piece drawn venturi, bolted structural steel channels and motor plate. (paint optional). Propeller - Heavy duty, cast aluminum. Motors - Heavy duty, permanently lubricated, ball bearing type.
  • Page 21 Direct Drive - Level 3 - Reversible Model SCR3 Reversible for exhaust and supply Motor Model Number BHP Sones 24 Performance Limits SCR3-24-627-C4 0.29 16.7 SCR3-24-632-C3 0.35 16.9 SCR3-24-416-B4 0.29 18.1 SCR3-24-420-B3 0.37 19.3 1160 SCR3-24-623-B5 0.58 SCR3-24-632-B7 0.86 SCR3-24-410-A5 0.57 SCR3-24-414-A7 0.83...
  • Page 22 Belt Drive Model Number Code The model number system is designed to completely identify the fan. The correct code letters must be specified to designate belt drive with exhaust or supply air configuration. The remainder of the model number is determined by the size and performance selected from pages 26 through 38. Sidewall Belt Drive SB - Fabricated Propeller SBC - Cast Propeller...
  • Page 23 Belt Drive - Level 1 Dimensional Data: Models SBE-1/SBS-1 All belt drive models are available in either exhaust (Model SBE-1) or supply (Model SBS-1) arrangements. Propeller - Galvanized steel, riveted blades (aluminum optional). Bearings - Stamped steel pillow blocks up to size 36 and cast pillow blocks for size 42 and larger.
  • Page 24 Belt Drive - Level 2 Dimensional Data: Models SBE-2/SBS-2 Propeller - Reinforced galvanized steel, riveted blades, keyed hub. Bearings - Cast iron pillow blocks with grease fittings. Panel/Drive frame - Galvanized steel with one-piece drawn venturi, bolted structural steel channels and one-piece motor/bearing plate (paint optional).
  • Page 25 Belt Drive - Level 3 and Reversible Dimensional Data: Models SBE-3/SBS-3, SBCE-3/SBCS-3 and SBCR Propellers- SBE-3/SBS-3 - Heavy duty, welded, reinforced, steel blades coated in Permatector™. SBCE-3/SBCS-3 - Heavy duty, cast aluminum blades. All with keyed hubs. Bearings - Cast iron pillow blocks with grease fittings. Panel/Drive Frame - Galvanized steel with one-piece drawn venturi, bolted structural steel channels and one-piece motor/bearing plate on sizes 24-36, two piece...
  • Page 26 Using The Performance Table Shown below is a portion of a typical performance table used in this catalog. Performance data shown offers the best selections for each propeller type (“L” or “H”) relative to sound, RPM and static pressure. Consider “L” type propellers first for most applications. Many sidewall applications can be met with the “L”...
  • Page 27 24 Belt Drive SBE/SBS Model SBE for exhaust — Model SBS for supply Motor Model Number BHP *Sones Level 1 Performance Max RPM L - 809 H - 1010 0.19 SBE/SBS-1L24-4 0.25 0.30 0.17 SBE/SBS-1H24-4 0.30 0.33 SBE/SBS-1L24-3 0.40 0.33 SBE/SBS-1H24-3 0.36 0.50...
  • Page 28 30 Belt Drive SBE/SBS Model SBE for exhaust — Model SBS for supply Motor Model Number BHP *Sones Level 1 Performance Max RPM L - 696 H - 882 0.16 SBE/SBS-1L30-4 0.25 0.30 0.17 SBE/SBS-1H30-4 0.25 0.30 0.33 SBE/SBS-1L30-3 0.40 0.33 SBE/SBS-1H30-3 0.40...
  • Page 29 36 Belt Drive SBE/SBS Model SBE for exhaust — Model SBS for supply Motor Model Number BHP *Sones Level 1 Performance Max RPM L - 551 H - 694 329 0.25 12.3 SBE/SBS-1L36-3 361 0.34 11.8 384 0.40 11.8 410 0.25 10.0 SBE/SBS-1H36-3 450 0.33...
  • Page 30 42 Belt Drive SBE/SBS Model SBE for exhaust — Model SBS for supply Motor Model Number BHP *Sones Level 1 Performance Max RPM L - 424 H - 533 0.24 SBE/SBS-1L42-3 0.33 0.40 0.25 SBE/SBS-1H42-3 0.33 0.40 0.50 SBE/SBS-1L42-5 0.60 0.51 SBE/SBS-1H42-5 0.61...
  • Page 31 48 Belt Drive SBE/SBS Model SBE for exhaust — Model SBS for supply Motor Model Number BHP *Sones Level 1 Performance Max RPM L - 355 H - 429 0.31 SBE/SBS-1L48-5 0.50 0.60 0.33 SBE/SBS-1H48-5 0.50 0.61 0.76 SBE/SBS-1L48-7 0.90 0.76 SBE/SBS-1H48-7 0.93...
  • Page 32 54 Belt Drive SBE/SBS Model SBE for exhaust — Model SBS for supply Motor Model Number BHP *Sones Level 1 Performance Max RPM L - 343 H - 377 0.51 SBE/SBS-1L54-7 0.77 0.90 0.49 SBE/SBS-1H54-7 0.75 0.91 1.03 SBE/SBS-1L54-10 1.21 1.01 SBE/SBS-1H54-10 1.21...
  • Page 33 60 Belt Drive SBE/SBS Model SBE for exhaust — Model SBS for supply Motor Model Number BHP *Sones Level 2 Performance Max RPM L - 399 H - 521 0.99 SBE/SBS-2L60-15 1 1/2 1.52 1.80 0.98 SBE/SBS-2H60-15 1 1/2 1.50 1.81 2.01 SBE/SBS-2L60-20...
  • Page 34 24-30 Belt Drive SBCE/SBCS Cast Aluminum Model SBCE for exhaust — Model SBCS for supply Motor Model Number BHP *Sones 24 Performance Max RPM L - 1194 H - 1396 0.25 SBCE/SBCS-3L24-3 0.33 0.40 0.25 SBCE/SBCS-3H24-3 0.33 0.40 0.50 SBCE/SBCS-3L24-5 0.60 1043 0.50 SBCE/SBCS-3H24-5...
  • Page 35 36-42 Belt Drive SBCE/SBCS Cast Aluminum Model SBCE for exhaust — Model SBCS for supply Motor Model Number BHP *Sones 36 Performance Max RPM L - 1183 H - 1480 0.50 SBCE/SBCS-3L36-7 0.75 0.90 0.50 SBCE/SBCS-3H36-7 0.75 0.90 1.00 SBCE/SBCS-3L36-10 1.20 1.00 SBCE/SBCS-3H36-10...
  • Page 36 48-54 Belt Drive SBCE/SBCS Cast Aluminum Model SBCE for exhaust — Model SBCS for supply Motor Model Number 48 Performance Max RPM L - 908 H - 1182 435 0.99 SBCE/SBCS-3L48-15 ⁄ 500 1.51 531 1.80 566 0.99 SBCE/SBCS-3H48-15 ⁄ 650 1.50 691 1.80 550 2.00...
  • Page 37 60-72 Belt Drive SBCE/SBCS Cast Aluminum Model SBCE for exhaust — Model SBCS for supply Motor Model Number BHP *Sones 60 Performance Max RPM L - 620 H - 775 310 1.51 SBCE/SBCS-3L60-20 341 2.01 363 2.42 389 1.52 SBCE/SBCS-3H60-20 427 2.01 453 2.40 390 3.00...
  • Page 38 24-72 Belt Drive SBCR Reversible (Exhaust and Supply) Motor Model Number 24 Performance SBCR-24-4 SBCR-24-4 SBCR-24-3 SBCR-24-5 1126 SBCR-24-7 1288 SBCR-24-10 1418 SBCR-24-15 ⁄ 1623 30 Performance SBCR-30-3 SBCR-30-3 SBCR-30-5 SBCR-30-7 SBCR-30-10 1045 SBCR-30-15 ⁄ 1196 SBCR-30-20 1316 SBCR-30-30 1506 36 Performance SBCR-36-5 SBCR-36-5...

  • Page 39: Belt Drive

    Belt Drive Specifications Belt Drive Belt driven, axial type sidewall fans shall be provided as follows: Propellers shall be constructed with fabricated steel, fabricated aluminum, or cast aluminum blades and hubs. Propellers shall be securely attached to fan shafts. All propellers shall be statically and dynamically balanced to AMCA standard 204-05.

  • Page 40: Direct Drive

    The axial exhaust or supply fans shall bear the AMCA Certified Ratings Seals for both sound and air performance. Fans shall be Model SE1, SE2, SCE3, SS1, SS2, SCE3 and SCS3 as manufactured by Greenheck, Schofield, Wisconsin. Reversible Direct Drive Direct drive, axial type sidewall fans shall be provided as follows: Propellers shall be constructed with cast aluminum blades and hubs.
