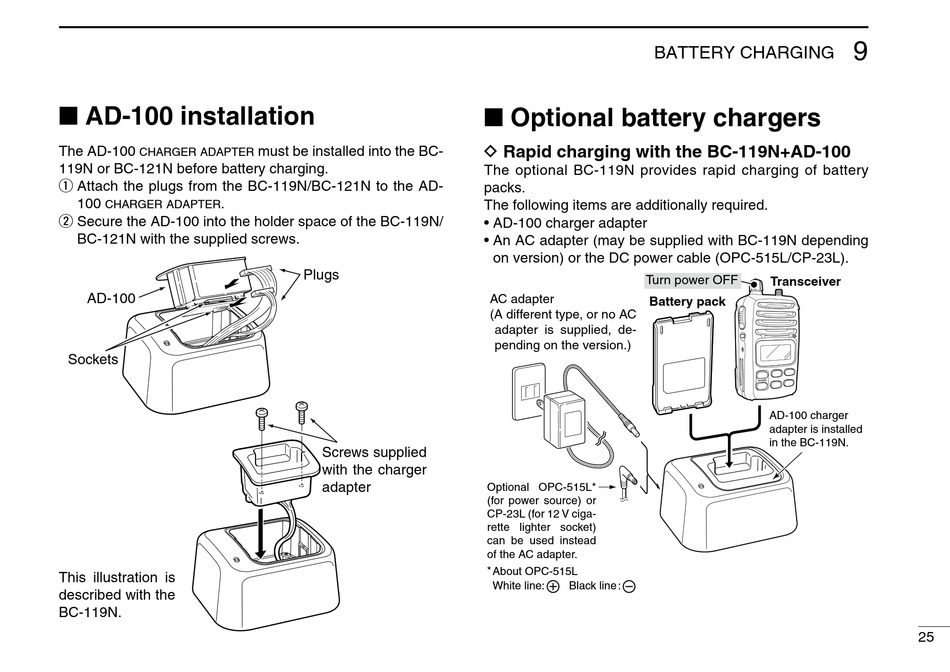

■ AD-100 installation

The AD-100
charger adapter
119N or BC-121N before battery charging.
q Attach the plugs from the BC-119N/BC-121N to the AD-
100 .
charger adapter
w Secure the AD-100 into the holder space of the BC-119N/
BC-121N with the supplied screws.
AD-100
Sockets
This illustration is
described with the
BC-119N.
must be installed into the BC-
Plugs
Screws supplied
with the charger
adapter
BATTERY CHARGING

■ Optional battery chargers

D Rapid charging with the BC-119N+AD-100
The optional BC-119N provides rapid charging of battery
packs.
The following items are additionally required.
• AD-100 charger adapter
• An AC adapter (may be supplied with BC-119N depending
on version) or the DC power cable (OPC-515L/CP-23L).
Turn power OFF
AC adapter
Battery pack
(A different type, or no AC
adapter is supplied, de-
pending on the version.)
Optional OPC-515L*
(for power source) or
CP-23L (for 12 V ciga-
rette lighter socket)
can be used instead
of the AC adapter.
* About OPC-515L
White line: Black line :
9
1
2
3
4
5
6
7
Transceiver
8
9
10
11
12
AD-100 charger
adapter is installed
13
in the BC-119N.
14
15
16
25
