MAINTENANCE AND TROUBLESHOOTING

Inspect and tighten all parts of the elliptical regularly.
Replace any worn parts immediately.
To clean the elliptical, use a damp cloth and a small
amount of mild soap. IMPORTANT: To avoid damage
to the console, keep liquids away from the console
and keep the console out of direct sunlight.
CONSOLE TROUBLESHOOTING
If the console does not display your heart rate when
you hold the handgrip heart rate monitor, or if the
displayed heart rate appears to be too high or too low,
see step 5 on page 19.
HOW TO CALIBRATE THE RAMP
If the ramp is not functioning properly, the ramp may
need to be calibrated. To calibrate the ramp, press and
hold the Resistance increase and decrease buttons
for several seconds until the test mode appears in the
display.
At the same time, press the Resistance increase and
decrease buttons twice. Next, press the Vol increase
or decrease button to calibrate the ramp. The ramp will
move upward and downward as it calibrates.
When the ramp stops moving, the ramp is calibrated.
Then, at the same time, press the Resistance increase
and decrease buttons repeatedly to exit the calibration
mode.
HOW TO ADJUST THE DRIVE BELT
If the pedals slip while you are pedaling, even while
the resistance is adjusted to the highest level, the drive
belt may need to be adjusted.

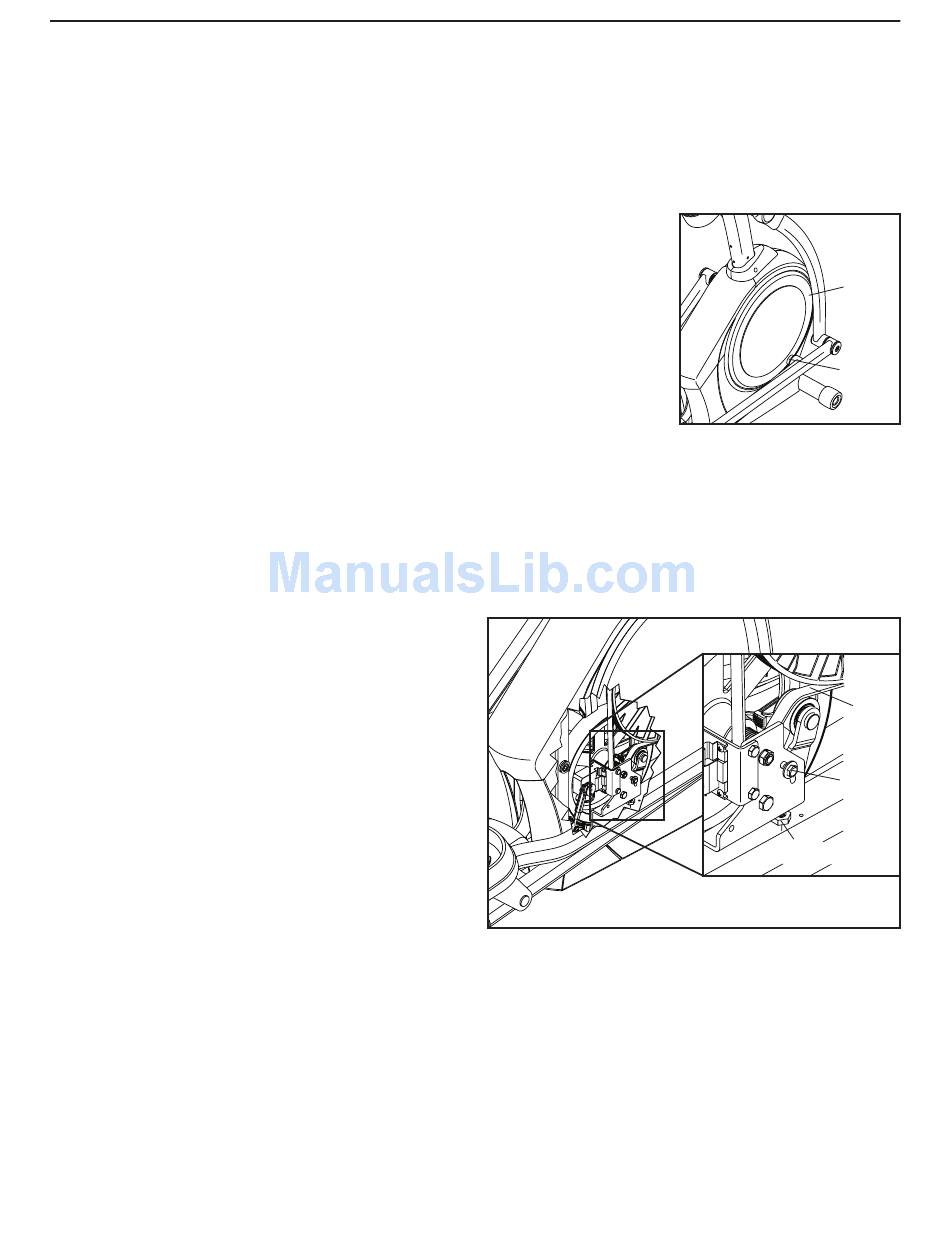

To adjust the drive
belt, first use a flat
screwdriver to pry the
right Disc (71) care-
fully away from the
right Crank Arm (20).
Then, carefully rotate
the right Disc out of
the way.
Locate and loosen the Idler Screw (101). Next, tighten
the Belt Adjustment Screw (88) until the Drive Belt
(113) is tight. Then, retighten the Idler Screw. Note:
If necessary, see EXPLODED DRAWING A on page
31 and remove the M4 x 16mm Screws (104) and
the Bottom Shield (77) from the underside of the

elliptical.

To reattach the right disc, first align the mounts on the
disc with the holes in the right crank arm. Then, press
the disc firmly into place.
22
71
20
113
101
88
