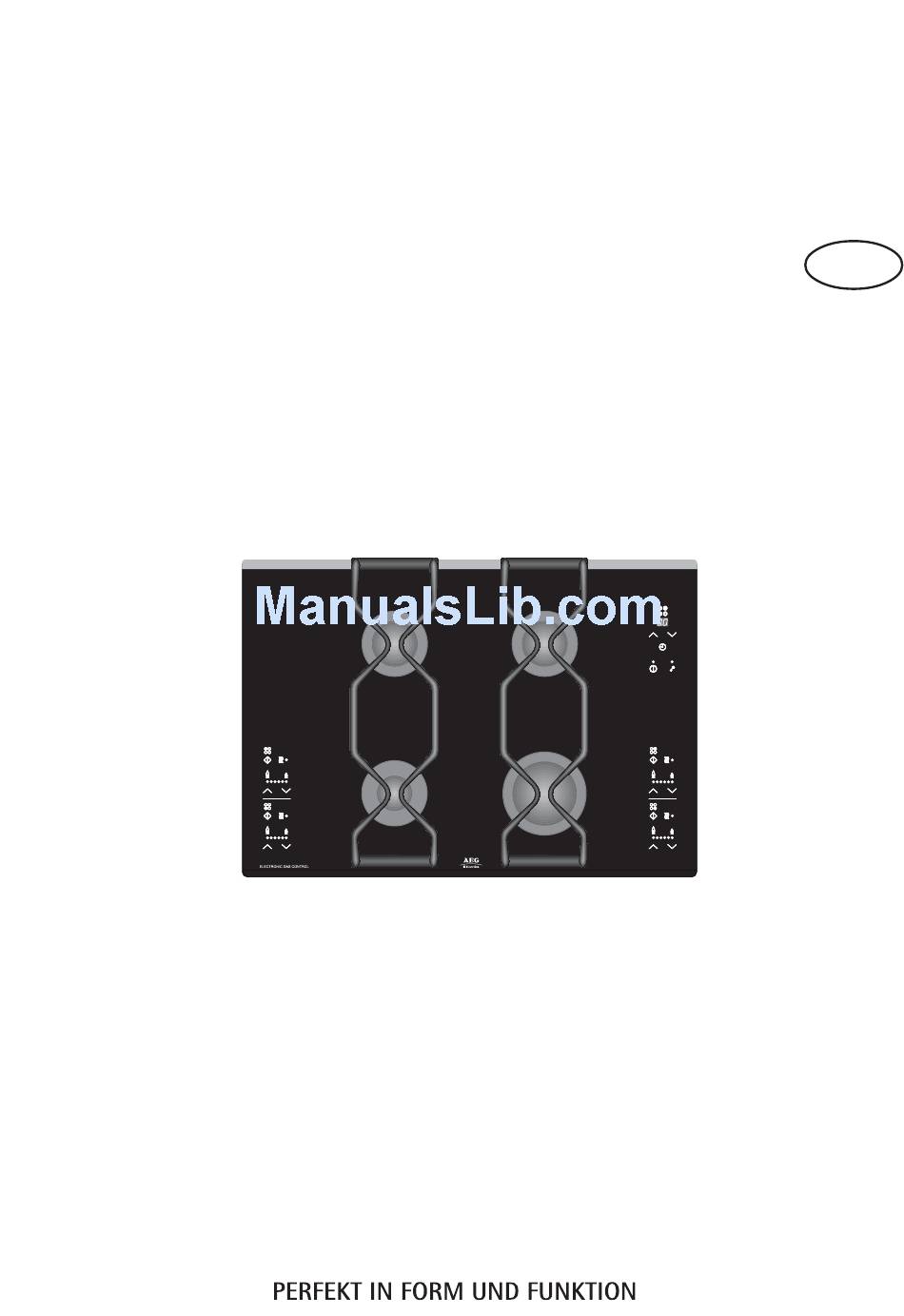

- Page 1 79903G Electronic gas hob Table de cuisson électronique à gaz Operating instructions Mode d’emploi...
-
Page 2: The Innovative Features Of Your Gas Hob
English The innovative features of your gas hob Your new gas hob offers several innovative Children safety device to prevent functions that distinguish it from the controls from being accidentally conventional gas hobs. operated. Electronic control of all functions. General shutdown to turn off all the burners at once for an emergency. -
Page 3: Table Of Contents
Contents For the User The innovative features of your gas hob ............2 For your safety ....................4 Description of the hob ..................6 Operating instructions ..................7 Touch controls ................... 7 How to light a burner .................. 8 How to turn off a burner ................10 In case of ignition failure ................ -
Page 4: For Your Safety
For your safety This new appliance is easy to use. Nevertheless, it is important to carefully read this booklet before installing or using the appliance for the first time. This will allow you to obtain best performance, avoid improper actions, use the appliance in complete safety and also respect the environment. -
Page 5: Guide To Use The Instructions
persons can cause damage and accidents. Refer to the contents of this The symbol on the product or on its booklet (see chapter “Something not packaging indicates that this product may working”). If you do not find the not be treated as household waste. Instead information required, contact the nearest it shall be handed over to the applicable Assistance Centre. -
Page 6: Description Of The Hob
Description of the hob Timer control zone Semirapid Semirapid burner burner Child Safety Control Main ON/OFF Auxiliary Rapid switch Rear burner burner left Rear right burner burner control control zone zone Front left Front right burner burner control zone control zone... -
Page 7: Operating Instructions
Operating instructions Before using the appliance, remove all packaging, including the advertising labels and any protective film. Touch Controls The hob is supplied with special Touch Controls. To operate your hob, simply touch the required control with a fingertip. Ensure to only touch one control at a time during use. -
Page 8: How To Light A Burner
How to light a burner 1. Touch the main ON/OFF Control about 3 seconds to switch on the hob. The red indicator next to the touch control lights up, an acoustic signal sounds and the hob is ready to use. 2. - Page 9 - If touch control is selected, the burner automatically lights at medium flame level (three flame level indicators illuminate). 4. To adjust the burner flame level, use the Increasing or Decreasing Touch Control. The residual heat indicator lights up immediately after the burner is lit. This means that the cooking zone is getting hot: the indicator remains on until the pan support and the burner have...
-
Page 10: How To Turn Off A Burner
How to turn off a burner 1. To turn off a burner press the relevant Burner Ignition Touch Control . All the flame level indicators go off. The residual heat indicator remains on until the pan support and the burner have cooled down. -
Page 11: In Case Of Accidental Extinguishing (Automatic Reignition)
In case of accidental extinguishing (automatic reignition) If the burner flame is accidentally extinguished (draughts, spilling of liquids, etc.), the gas flow is immediately interrupted. After about 20 seconds, the ignition device automatically repeats the ignition procedure. Upon reignition, the burner flame is first set at maximum level, then it is automatically adjusted to the level set before it was accidentally extinguished. -
Page 12: How To Turn Off All The Burners At Once
How to turn off all the burners at once In case of unexpected safety hazard (spilling of liquids, children hazard, etc.), you can immediately turn off all the hob burners at once by touching the main ON/OFF Control Burner Safety Cut-off Function If you leave one or more burners lit and unattended for a long time (that is, you don’t... -
Page 13: Protection Against Overheating
Protection against overheating If the hob is used intensively, e.g. several burners at maximum level for a long time, a temperature sensor detects possible overheating and automatically adjusts all the lit burners to minimum. If the hob temperature keeps rising although the flame level has been reduced, all the lit burners are automatically turned off and a safety device is set on all the four burners. -
Page 14: The Electronic Timer
It is highly recommended to activate the child safety function every time the hob is not operated. In case of a power failure, the hob stores the children safety function setting in the system memory. If the controls are locked at the time of the power failure, they will still be locked when the power is restored. -
Page 15: How To Programme The Burner To Switch Off
How to programme a burner to switch off To programme a burner to switch off, proceed as follows: 1. If necessary, activate the hob by touching the main ON/OFF Control for about 3 seconds. 2. Light the burner and adjust the flame level using the Increasing or Decreasing controls (see par. - Page 16 5. The timer starts the countdown a few seconds after the cooking time has been set. 6. During the last ten seconds, the timer starts beeping to advise that the cooking time is about to end. 7. An acoustic signal sounds at the end of the cooking time.
-
Page 17: How To Set The Minute Minder Function
How to set the Minute Minder Function You can use the timer as a simple minute minder when none of the burners are operating. The hob must be activated in order to use the timer as a minute minder. Proceed as follows: 1. -
Page 18: Safety And Energy-Saving Advice
Safety and energy saving advice For a correct use of the hob To ensure maximum burner efficiency lower gas consumption, you should only use pots and pans with a flat bottom fitting the size of the burner used (see table). If you use a saucepan which is Burner diameter diameter... -
Page 19: Cooking Table
Cooking Table Recommended cooking time (Where no DISHES BURNER POWER recommendation is given, times should be set according to your personal requirements) Soups Broths 15-20 minutes Fish Court- bouillon Hollandaise Sauces Bechamel 10 minutes Aurore Endives Peas in sauce 25-30 minutes Vegetables Provence tomatoes 15-20 minutes... -
Page 20: Cleaning And Maintenance
Cleaning and maintenance Before any maintenance or cleaning can be carried out, you must DISCONNECT the hob from the electricity supply and wait until it has cooled down. This appliance cannot be cleaned with steam or with a steam cleaning machine. The Hob Top Regularly wipe over the hob top using a soft cloth well wrung out in warm water to which... - Page 21 Pan Supports The pan supports are dishwasher proof. If washing them by hand, take care when drying them as the enamelling process occasionally leaves rough edges. If necessary, remove stubborn stains using a paste cleaner. The pan supports can be removed from the hob to enable better cleaning.
-
Page 22: Periodical Maintenance
The Burners Frequently wash the burner caps and crowns using hot soapy water, and remove marks with a mild paste cleaner. A well moistened soap impregnated steel wool pad can be used with caution, if the marks are particularly difficult to remove. After cleaning, be sure to wipe dry with a soft cloth, then place back the crown and the cap in their correct position on the... -
Page 23: Something Not Working
Something not working Some operating problems may be solved with simple maintenance operations or and without the intervention of Technical Assistance. PROBLEM CAUSE SOLUTION There are blown fuses in the THE HOB Have the fuses replaced. domestic electrical system. DOESN’T Switches are turned off or WORK Reset the switches. -
Page 24: Assistance And Spare Parts
Assistance and spare parts Before leaving the factory this appliance was Genuine spare parts, certified by manufac- tested and verified by specialized personnel, turer and carrying this mark in order to ensure best performance. Any repairs or intervention which may become necessary, must be carried out with utmost care and attention. -
Page 25: Instructions For The Installer
Instructions for the Installer Technical Data Gas burner power Rapid burner (large) 2.9 kW (G20/G25) - 2.7 (G30/G31) Semirapid burner (medium) 1.9 kW Auxiliary burner (small) 1.0 kW Appliance category II2E+3+ Appliance gas supply setting Natural Gas G20/G25 - 20/25 mbar Gas supply connection G 1/2"... -
Page 26: Gas Connection
Instructions for the installer The following instructions about installation and maintenance must be carried out by qualified personnel in compliance with the regulation in force. The regulation to be applied for this type of installation is NBN D 5I.003 : "Installations functioning with combustible gas lighter than air". - Page 27 diameter and lenght of the tube in front and behind the meter; section of transit of variuos tubes positioned on the circuit; diameter of eventual connections. IMPORTANT To ensure a correct operation, a saving of energy and the long- life of the appliance, the voltage pressure of the appliance must correspond to the recommended values.
-
Page 28: Electrical Connection
Electrical connection Replacing the power The appliance is designed to be connected to 230 V monophase electricity supply. cable The connection must be carried out in When replacing the cable, only use compliance with the laws and regulations in H05V2V2-F (T90), H05 BB-F type cables force. -
Page 29: Adaptation To Different Types Of Gas
Adaptation to different types of gas Replacing the injectors 1. Remove the pan supports. 2. Remove the burner caps and crowns. 3. Using a 7 mm socket spanner unscrew and remove the injectors, then replace them with the ones required for the new type of gas (see table “Burner characteristics”). - Page 30 Burner characteristics BURNER NOMINAL REDUCED NORMAL POWER THERMAL THERMAL POWER POWER L.P.G. NATURAL GAS 28-30/37 mbar Inj. Inj. 1/100 1/100 20mbar 25mbar Auxiliary 0,33 0,095 0,111 Semi-rapid 0,45 0,181 0,210 Rapid Natural gas: 0,65 0,276 0,321 But/Prop:2,7...
- Page 31 Setting the hob for the new gas type 1. If necessary, activate the top by touching the main ON/OFF Control for about 3 seconds. 2. Touch the Timer Control repeatedly to select the auxiliary burner (front left burner) on the burner selection display . 3.
-
Page 32: Minimum Flame Adjustment
5. Touch the Decreasing Control select the required type of gas. 6. After selecting the type of gas, switch off the hob touching the main ON/OFF Control 7. Touch the main ON/OFF Control again to reactivate the hob. The appliance is automatically set to the normal “User Mode”. - Page 33 4. While the flame is on, touch the Increasing or Decreasing Controls to carry out a fine adjustment, until a small and regular flame is obtained on the whole burner crown. 5. Switch off the hob touching the main ON/OFF Control...
-
Page 34: Building In
Building In A = Auxiliary burner Dimensions are given in millimetres SR = Semirapid burner R = Rapid burner Fig. 1 The hob is designed to be inserted in modular kitchen units with depth of 550 - 600 mm and having proper characteristics. The building-in is also possible in modular units with a 600 mm width: in this case, the cut-out in the work top must be carried... -
Page 35: Fitting The Hob To The Worktop
Fitting the hob to the worktop Before fitting the hob into the cut out, an adhesive seal must be fitted to the underside outside edge of the hob. It is essential that no gaps are left in this seal in order to prevent spillage near the hob seeping into the cabinet below. -
Page 36: Installation Possibilities
Installation possibilities Building over a kitchen unit with door Proper arrangements must be taken in Fig. 5 designing the furniture unit, in order to avoid any contact with the bottom of the hob which can be heated when it is operated. The recommended solution is shown in Fig. - Page 37 Hanging furniture units or hoods must be placed at 650 mm. minimum from the hob (Fig. 6). The electronic gas hob can only be installed over a built-in oven equipped with cooling fan. If the hob is installed over a built-in oven equipped with pyrolytic cleaning function, the hob must not be in use...
- Page 38 GUARANTEE - SPARE PARTS (only for BENELUX) When calling for repairs during the period of guarantee ofthe appliance, the original invoice or receipt must be shown or sent together with the appliance to be repaired. DECLARATION OF GUARANTEE TERMS Our appliances are produced with the greatest of care. However, a defect may stili occur.
- Page 39 qualified or expert or defects that result from the addition of non-original accessories or spare parts are not covered by the guarantee. 10.Appliances that are easy to transport may be delivered or sent to the consumer services department. Home repairs are only anticipated for bulky appliances or built-in appliances.
