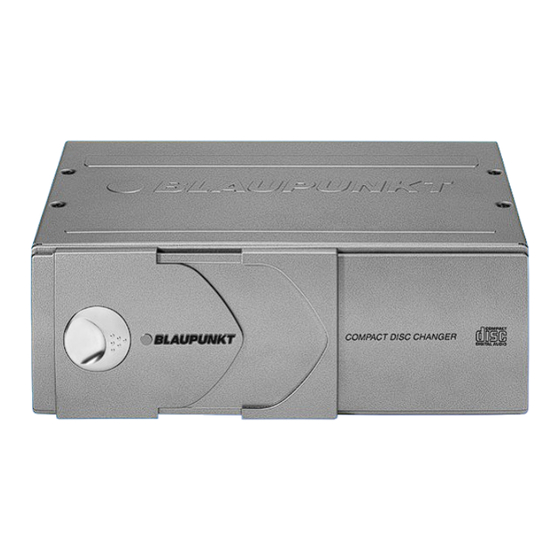

- Page 1 Changer CDC A03 7 607 700 020 Operating and installation instructions http://www.blaupunkt.com...
-
Page 2: Table Of Contents
Notes ..........10 Safety notices ....... 10 Operation ........11 Specifications ........ 13 Installation ........14 Connection ........16... -
Page 3: Notes
NOTES SAFETY NOTICES Notes Safety notices Thank you for choosing a Blaupunkt Please observe the following safety product. We hope you enjoy using this notices during installation and whilst new piece of equipment. making the connections. Please read these operating instruc-... -
Page 4: Operation
OPERATION Note: Operation You must not use 8 cm discs. Loading the disc magazine Protect your CDs against getting smudged by finger prints and against damage. CDs rest loosely on the CD trays - for this reason please make sure that the CDs do not slide off and fall when you remove the CD trays. - Page 5 OPERATION Notes regarding moisture build-up Condensation may build up on the la- ser optics during rainy weather or as a result of differences in temperature. This can lead to the device not functioning properly. If this is the case, remove the CDs and wait for approximately one hour until the moisture has evaporated.
-
Page 6: Specifications
OPERATION SPECIFICATIONS Notes regarding the disc magazine Specifications Protect the magazine against high Frequency response: temperatures and moisture. 5 - 20,000 Hz 1 dB Store the magazine in a place that Wow and flutter: is protected from direct sunlight below the measurable limits (never place it on the dashboard or the vehicle's rear shelf)! Signal-to-noise ratio:... -
Page 7: Installation
INSTALLATION If the device is installed suspended from Installation the vehicle's rear shelf or inside the car Supplied mounting components boot, please observe the following pre- cautionary measures: Select an installation position that allows the device to be fitted hori- zontally. - Page 8 INSTALLATION Angle adjustment switches 0 – 5 Note: The angle adjustment switches on the sides of the device must be adjusted to suit the angle at which the CD changer is installed. Both switches must be set to the same position.
-
Page 9: Connection
INSTALLATION CONNECTION Suspended installation Connection Connection to a car sound system equipped with a disc management sys- 0 – 5 brown Ground per.+12V Kl.30 Battery Subject to changes! - Page 10 01-333 9575 01-324 8756 Poland (PL) 0800-118922 022-8771260 Turkey (TR) 0212-3350677 0212-3460040 (USA) 800-2662528 708-6817188 Brasil (Mercosur) (BR) +55-19 3745 2769 +55-19 3745 2773 Malaysia (Asia Pacific) (MAL) +604-6382 474 +604-6413 640 Blaupunkt GmbH 09/03 CM/PSS 8 622 403 569...
