(Parking)
The steering is locked, and the taillight
and auxiliary light are on, but all other
electrical systems are off. The key can
be removed.
The steering must be locked before the
key can be turned to " ".
CAUTION:
_
Do not use the parking position for
an extended length of time, other-
wise the battery may discharge.
_

INSTRUMENT AND CONTROL FUNCTIONS

EAU00048
ECA00043

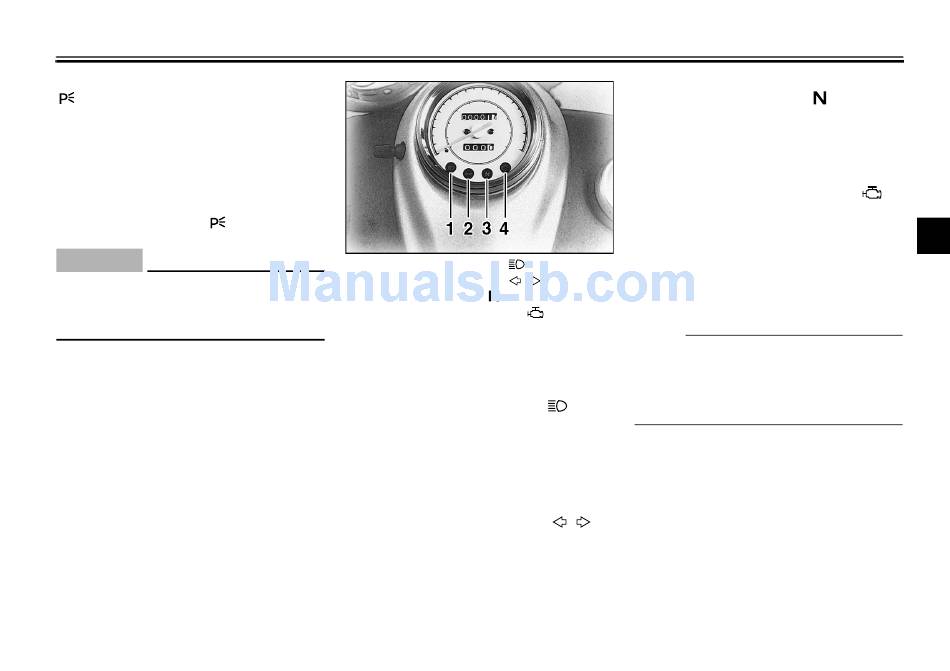

1. High beam indicator light "
2. Turn signal indicator light "
3. Neutral indicator light "
4. Engine trouble warning light "

Indicator and warning lights

High beam indicator light "
This indicator light comes on when the
high beam of the headlight is switched
on.
Turn signal indicator light "
This indicator light flashes when the
turn signal switch is pushed to the left
or right.
Neutral indicator light "
This indicator light comes on when the
transmission is in the neutral position.
Engine trouble warning light "
This warning light comes on or flashes
when an electrical circuit monitoring
the engine is defective. When this oc-
"
curs, have a Yamaha dealer check the
"
self-diagnosis system.
"
"
NOTE:
EAU03034
_
This warning light comes on for a few
seconds when the key is turned to
"ON", but this does not indicate a mal-
EAU00063
"
function.
_
EAU00057
"
3-2
EAU00061
"
EAU04238
"
3
