INSTRUMENT AND CONTROL FUNCTIONS
Adjusting the shock
absorber assembly
1
2
3
4
5

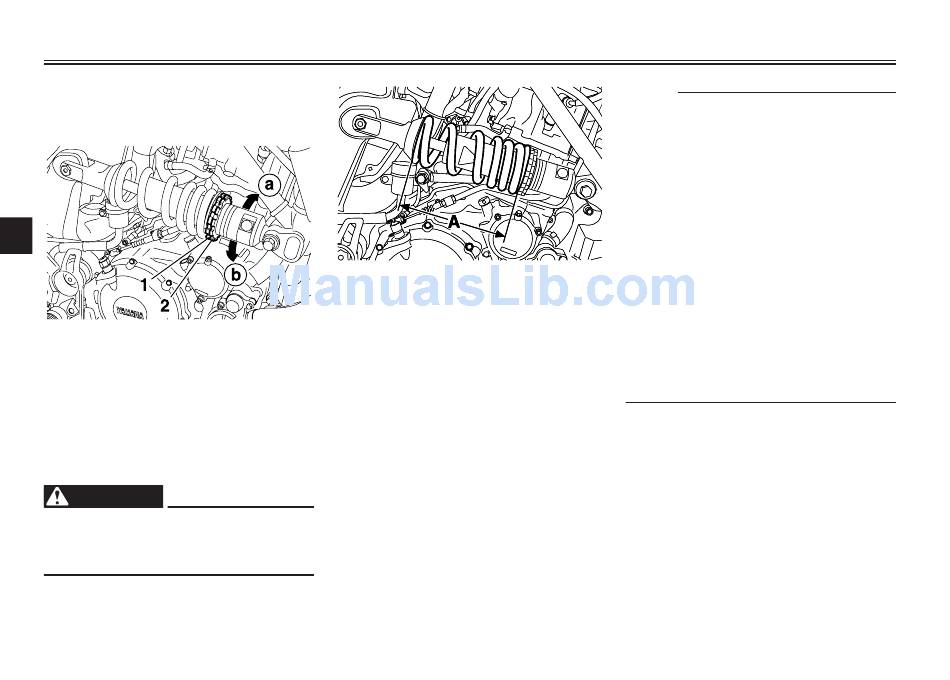

1. Spring preload adjusting nut
2. Locknut
(a) Increasing the spring preload
6
(b) Decreasing the spring preload
This shock absorber assembly is
7
equipped with a spring preload adjust-
ing nut.
8
WARNING
0
9
Never attempt to turn an adjusting
mechanism beyond the maximum
10
or minimum settings.
EAUB1330
A. Distance (spring preload)
Adjust the spring preload as follows.
1. Loosen the locknut.
2. To increase the spring preload
and thereby harden the suspen-
sion, turn the adjusting nut in di-
rection (a). To decrease the
spring preload and thereby soften
the suspension, turn the adjusting
nut in direction (b).
ECA10100
NOTE:
3-16
G
Use the special wrench included
in the owner's tool kit to make the
adjustment.
G
The spring preload setting is de-
termined by measuring distance
A, shown in the illustration. The
longer distance A is, the lower the
spring preload; the shorter dis-
tance A is, the higher the spring
preload. With each complete turn
of the adjusting nut, distance A
changes by 1.5 mm (0.059 in).
G
When measuring distance A, the
rear wheel must be raised off the
ground. (See page 6-36).
